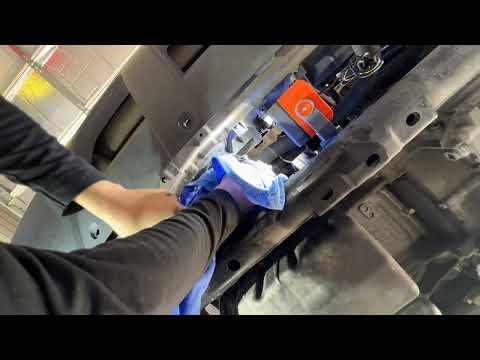

🔧 A/C Compressor - Replacement

The A/C compressor on your CR-V is part of the sealed refrigerant system, so the job starts with safe refrigerant recovery and ends with evacuation and recharge. If the compressor failed internally, you also need to be extra careful about contamination in the lines and condenser.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Refrigerant must be recovered by proper equipment before any A/C line is opened.
• Wear safety glasses and gloves. Refrigerant and oil can cause frostbite and eye injury.
• Disconnect the negative battery cable before starting.
• Do not let dirt, moisture, or old O-ring debris enter the A/C system.
• If the compressor seized or shed metal, the system may need additional flushing and component replacement.
• Never open the A/C system indoors without recovery equipment.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Short extension
• Torque wrench
• Serpentine belt tool or 14mm wrench
• Line wrench set
• Trim clip tool
• Drain pan
• AC manifold gauge set (specialty)
• Vacuum pump (specialty)
• R-134a recovery machine or shop evacuation service
• Funnel
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring set - Qty: 1
• A/C compressor oil - Qty: 1 bottle
• Serpentine belt - Qty: 1
• Receiver drier or desiccant bag - Qty: 1 if contaminated/opened for extended time

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Have the refrigerant recovered before opening the system.
• Disconnect the negative battery cable.
• Save a photo of the belt routing before removal.
• Inspect the old compressor for signs of metal debris or oil discoloration.
• Replace every O-ring you disturb.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Use an R-134a recovery machine or shop evacuation service to remove the refrigerant safely.
• Do not loosen any fittings until the system is confirmed empty.

Step 2: Disconnect power and clear access

• Use a 10mm socket to disconnect the negative battery cable.
• Use a 10mm socket and trim clip tool to remove any undercovers or splash shields blocking access.

Step 3: Remove the drive belt

• Use a serpentine belt tool or 14mm wrench to rotate the belt tensioner.
• Slip the belt off the compressor pulley and remove it.
• Check the belt for cracks before reinstalling.

Step 4: Disconnect the compressor lines and connector

• Use a 10mm socket to remove any line bracket or wiring retainer.
• Use a line wrench set to loosen the refrigerant line fittings at the compressor.
• Cap the open lines immediately.
• Remove the old O-rings and discard them.

Step 5: Remove the compressor

• Use a 12mm socket and 14mm socket to remove the compressor mounting bolts.
• Support the compressor while removing the last bolt.
• Lift the compressor out carefully.

Step 6: Prepare the new compressor

• Drain any shipping oil from the new compressor if the part instructions call for it.
• Add the correct amount of A/C compressor oil for the replacement compressor and the system.
• Lubricate the new O-rings with clean A/C oil before installation.
• Keep the oil clean.

Step 7: Install the new compressor

• Set the new A/C compressor in place.
• Start all mounting bolts by hand first.
• Use a torque wrench to tighten the compressor bolts to Honda factory specification.
• Reconnect the refrigerant lines with new O-rings and tighten to Honda factory specification.
• Reconnect the electrical connector and any brackets.

Step 8: Reinstall the belt and undercovers

• Route the serpentine belt using your photo or belt diagram.
• Use the serpentine belt tool or 14mm wrench to release the tensioner and install the belt.
• Reinstall splash shields and undercovers with the 10mm socket and trim clip tool.

Step 9: Evacuate and recharge the system

• Use an AC manifold gauge set (specialty) and vacuum pump (specialty) to evacuate the system.
• Hold vacuum and check for leaks before charging.
• Recharge with the exact factory refrigerant amount for your CR-V.

---

✅ After Repair

• Start the engine and turn the A/C to MAX.
• Check that the compressor engages and the air gets cold.
• Inspect all fittings for leaks.
• Listen for belt noise or pulley noise.
• If cooling is weak, recheck charge level and leak test again.

---

💰 DIY vs Shop Cost

Shop Cost: $950-$1,600 (parts + labor)

DIY Cost: $350-$850 (parts only)

You Save: $600-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
