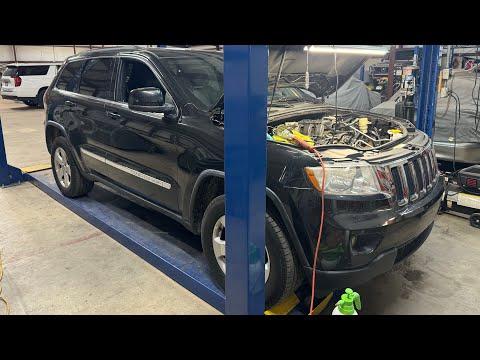

🔧 Grand Cherokee - A/C Compressor Replacement

Replacing the A/C compressor on your Grand Cherokee requires safely recovering the refrigerant, removing the serpentine belt, disconnecting the compressor lines, swapping the compressor, then evacuating and recharging the A/C system. This repair is more involved than many DIY jobs because the refrigerant system must be serviced with proper A/C equipment.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be professionally recovered before opening the A/C system; do not vent refrigerant to the atmosphere.
• ⚠️ Wear safety glasses and gloves because refrigerant can cause frostbite on skin and eyes.
• ⚠️ Disconnect the negative battery cable before working near the compressor clutch wiring or starter cable area.
• ⚠️ The exhaust and engine bay can be very hot; let the engine cool completely before starting.
• ⚠️ If the old compressor failed internally, the condenser, expansion valve, and receiver/drier service components may also need replacement to prevent repeat failure.
• ⚠️ Do not run the engine with the A/C system empty or with the compressor electrical connector unplugged unless instructed during testing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm socket
• Ratchet
• 3/8-inch breaker bar
• 3-inch socket extension
• 6-inch socket extension
• Serpentine belt tool (specialty)
• Line wrench set metric
• Pick tool set
• Torque wrench foot-pound
• Torque wrench inch-pound
• A/C manifold gauge set R-134a (specialty)
• Vacuum pump 2-stage (specialty)
• Refrigerant scale digital (specialty)
• Refrigerant recovery machine R-134a (specialty)
• UV leak detection light (specialty)
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Drain pan
• Clean shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor with clutch - Qty: 1
• A/C compressor manifold seal kit - Qty: 1
• R-134a refrigerant - Qty: charge amount shown on under-hood A/C label
• PAG compressor oil - Qty: as required after oil balance
• Serpentine belt - Qty: 1, recommended if worn, cracked, or oil-soaked
• A/C condenser with receiver/drier - Qty: 1, required if compressor failed internally
• A/C expansion valve - Qty: 1, recommended if debris contamination is present
• A/C O-ring assortment R-134a compatible - Qty: 1

---

📋 Before You Begin

• Park your Grand Cherokee on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Have the refrigerant recovered with an R-134a refrigerant recovery machine before loosening any A/C line.
• An A/C manifold gauge set is the hose-and-gauge tool used to measure high-side and low-side A/C pressures.
• A vacuum pump removes air and moisture from the A/C system before recharge.
• A refrigerant scale measures the exact refrigerant charge by weight; A/C systems must be charged by weight, not by guessing from pressure.
• Check the under-hood A/C label for the exact refrigerant charge amount for your Grand Cherokee.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the Refrigerant

• Use an A/C manifold gauge set R-134a and refrigerant recovery machine R-134a to recover the refrigerant from the system.
• Confirm both high-side and low-side gauges read 0 psi before opening the system.
• Do not loosen A/C lines until recovery is complete.
• Recovery is required by law.

Step 2: Disconnect the Battery

• Use a 10mm socket and ratchet to loosen the negative battery terminal.
• Move the negative cable away from the battery post so it cannot accidentally touch.

Step 3: Raise and Support the Front

• Use a floor jack rated 3-ton minimum to raise the front of your Grand Cherokee at the proper front jacking point.
• Place jack stands rated 3-ton minimum under the front support points.
• Gently lower the vehicle onto the jack stands and give the vehicle a light shake to verify it is stable.

Step 4: Remove the Lower Splash Shield if Equipped

• Use a 10mm socket, 3-inch socket extension, and ratchet to remove the lower splash shield fasteners.
• Set the shield and fasteners aside in order.

Step 5: Remove the Serpentine Belt from the Compressor Pulley

• Locate the belt tensioner at the front of the 5.7L engine.
• Use a serpentine belt tool or 3/8-inch breaker bar on the tensioner to rotate it and release belt tension.
• Slide the belt off the A/C compressor pulley.
• Slowly release the tensioner.
• If replacing the belt, remove it fully and note the routing before removal.
• Take a belt routing photo first.

Step 6: Unplug the Compressor Clutch Connector

• Reach the compressor electrical connector from below.
• Use your fingers or a pick tool to release the connector lock.
• Unplug the connector and move the harness aside.

Step 7: Disconnect the A/C Lines from the Compressor

• Place a drain pan under the compressor area to catch small amounts of oil.
• Use a 13mm socket, 3-inch socket extension, and ratchet to remove the A/C line manifold bolt at the compressor.
• Gently pull the line manifold straight away from the compressor by hand.
• Use clean shop towels to cover the open lines immediately.
• Use a pick tool to remove the old manifold seals from the line block.
• Do not reuse old A/C seals.

Step 8: Remove the Compressor Mounting Bolts

• Support the compressor with one hand.
• Use a 15mm socket, 6-inch socket extension, and ratchet to loosen the compressor mounting bolts.
• Remove the bolts while keeping the compressor supported.
• Lower the compressor out of the engine bay carefully.

Step 9: Oil-Balance the New Compressor

• Drain the old compressor oil into a drain pan and measure how much came out.
• Drain shipping oil from the new compressor if instructed by the compressor label.
• Add the same amount of fresh PAG compressor oil to the new compressor that came out of the old compressor, unless the compressor instructions say it is pre-filled with the correct amount.
• Turn the compressor clutch hub by hand 10 times to distribute the oil.
• Correct oil amount prevents failure.

Step 10: Install the New Compressor

• Lift the new compressor into position by hand.
• Start all compressor mounting bolts by hand first.
• Use a 15mm socket, 6-inch socket extension, and torque wrench foot-pound to tighten the mounting bolts evenly.
• Torque to 54 Nm (40 ft-lbs).

Step 11: Install New A/C Line Seals

• Use a pick tool to confirm the old seals are fully removed from the line manifold.
• Lightly coat the new compressor manifold seals with clean PAG compressor oil.
• Install the new seals by hand.
• Push the A/C line manifold straight onto the compressor.
• Use a 13mm socket, 3-inch socket extension, and torque wrench inch-pound to tighten the line manifold bolt.
• Torque to 23 Nm (17 ft-lbs).

Step 12: Reconnect the Compressor Connector

• Plug the compressor clutch connector in by hand until the lock clicks.
• Make sure the wiring is routed away from the belt and pulley.

Step 13: Reinstall the Serpentine Belt

• Route the belt around all pulleys except the easiest smooth pulley to reach.
• Use the serpentine belt tool or 3/8-inch breaker bar to rotate the tensioner.
• Slip the belt onto the final pulley by hand.
• Slowly release the tensioner.
• Check every pulley groove with a flashlight and your fingers to confirm the belt is fully seated.

Step 14: Reinstall the Lower Splash Shield

• Raise the splash shield into position by hand.
• Use a 10mm socket, 3-inch socket extension, and ratchet to reinstall the fasteners.
• Torque to 5 Nm (44 in-lbs).

Step 15: Lower the Vehicle and Reconnect the Battery

• Use the floor jack rated 3-ton minimum to raise the front slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower the vehicle fully to the ground.
• Use a 10mm socket and torque wrench inch-pound to reconnect the negative battery terminal.
• Torque to 5 Nm (44 in-lbs).

Step 16: Evacuate the A/C System

• Connect the A/C manifold gauge set R-134a to the high-side and low-side service ports.
• Connect the center hose to the vacuum pump 2-stage.
• Open both manifold valves and run the vacuum pump for at least 30-45 minutes.
• Close both valves and shut off the pump.
• Watch the gauges for 10-15 minutes; vacuum should hold steady.
• If vacuum drops, use a UV leak detection light after adding dye-compatible refrigerant service materials and repair the leak before charging.

Step 17: Recharge the A/C System by Weight

• Place the R-134a refrigerant container on a refrigerant scale digital.
• Charge the system with the exact amount listed on the under-hood A/C label.
• Start charging with the engine off through the low side as vapor, then finish with the engine running and A/C set to Max Cool if needed.
• Keep the high-side manifold valve closed while charging with the engine running.
• Use the under-hood label charge amount; do not overcharge.

Step 18: Check Operation

• Start the engine and set A/C to Max Cool with blower on high.
• Use the A/C manifold gauge set R-134a to monitor low-side and high-side pressures.
• Confirm the compressor clutch engages and the center vents blow cold air.
• Use the UV leak detection light to inspect the compressor line connection and service ports for leaks.

---

✅ After Repair

• ✅ Verify cold air at the center vents after 5 minutes of running.
• ✅ Listen for belt squeal, pulley noise, or compressor rattling.
• ✅ Recheck the compressor line connection for oily residue, which can indicate a refrigerant leak.
• ✅ Recheck belt alignment after the first short drive.
• ✅ If the compressor failed with metal debris, replace the condenser with receiver/drier and expansion valve before final recharge.
• ✅ If the A/C still does not cool, scan the HVAC and PCM modules for A/C request, pressure sensor, and clutch command data.

---

💰 DIY vs Shop Cost

Shop Cost: $950-$1,700 including compressor, seals, refrigerant recovery, evacuation, and recharge

DIY Cost: $350-$850 for parts, refrigerant, oil, and seals, not including specialty A/C equipment

You Save: $400-$800 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours.

---
