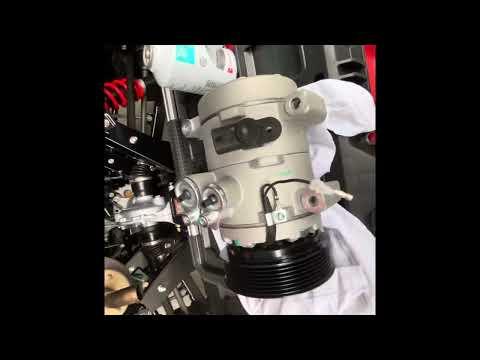

🔧 Tacoma - A/C Compressor Replacement

Replacing the A/C compressor on your Tacoma is a bolt-on job mechanically, but the A/C system must be properly evacuated (emptied) and later vacuumed/recharged to avoid damage and leaks. The biggest “gotcha” is refrigerant handling and getting the oil amount right for the new compressor.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is high-pressure and can cause frostbite/eye injury—do not crack lines open unless the system is fully recovered.
• ⚠️ Legally and safely, refrigerant should be recovered with proper equipment; many DIYers have a shop recover/recharge.
• ⚠️ Keep hands clear of the belt drive—do not run the engine with tools near the pulleys.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor clutch connector.
• ⚠️ Use jack stands—never work under a truck supported only by a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (10mm-14mm)
• 3/8" drive ratchet
• 3/8" drive torque wrench
• Serpentine belt tool or 14mm box wrench
• Trim clip removal tool
• Pick tool set
• Line/flare-nut wrench set (metric)
• A/C manifold gauge set for R-134a
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• PAG oil injector/measuring cup (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (correct fit for Tacoma) - Qty: 1
• A/C compressor clutch connector pigtail (if brittle/damaged) - Qty: 1
• A/C line O-ring kit (R-134a compatible) - Qty: 1
• Receiver/drier desiccant (if serviceable) or condenser/receiver-drier assembly (if not serviceable) - Qty: 1
• PAG A/C oil (Toyota-compatible) - Qty: 1
• R-134a refrigerant - Qty: As specified on under-hood A/C label
• Serpentine belt (optional if worn/cracked) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• If the A/C still has refrigerant: schedule recovery first, or use a refrigerant recovery machine (specialty).
• Open the hood and disconnect the battery using a 10mm socket (negative terminal first).
• Locate the refrigerant charge amount on the under-hood A/C label; you must recharge by weight using a refrigerant scale (specialty).
• Plan to replace O-rings every time.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect an A/C manifold gauge set for R-134a to the low- and high-side service ports.
• Use a refrigerant recovery machine (specialty) to recover the system fully.
• Once recovered, verify both gauges read ~0 psi before loosening any A/C lines.

Step 2: Raise the front (if needed for access)

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove any lower splash shield/skid pieces using a metric socket set (10mm-14mm) and trim clip removal tool.

Step 3: Remove the serpentine belt from the compressor

• Use a serpentine belt tool or 14mm box wrench to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• If you’re reusing the belt, note the belt routing before removal.

Step 4: Unplug the compressor clutch connector

• Locate the electrical connector at the compressor and disconnect it by hand; use a pick tool set only if the tab is stuck (don’t break it).

Step 5: Disconnect the A/C lines at the compressor

• Place rags under the compressor area.
• Use a metric socket set (10mm-14mm) or line/flare-nut wrench set (metric) (depending on fitting style) to remove the suction/discharge line fasteners.
• Immediately remove and discard old O-rings using a pick tool set.
• Cap/cover open lines to keep moisture and dirt out.

Step 6: Unbolt and remove the compressor

• Support the compressor with one hand.
• Remove the mounting bolts using a metric socket set (10mm-14mm) and 3/8" drive ratchet.
• Lift the compressor out carefully.

Step 7: Set the oil amount in the new compressor

• Drain the old compressor oil into a measuring cup (use a PAG oil injector/measuring cup (specialty)) and note how much came out.
• Check the new compressor documentation: some come pre-filled, some are shipped with “shipping oil.” Adjust so the system oil amount is correct.
• Add the correct PAG oil type for your Tacoma using a PAG oil injector/measuring cup (specialty).
• Too much oil can reduce cooling.

Step 8: Replace the receiver/drier (important)

• Replace the receiver/drier desiccant if serviceable, or replace the condenser/receiver-drier assembly if that’s how your Tacoma is built.
• Use a metric socket set (10mm-14mm) and trim clip removal tool as needed for access.
• Install new O-rings at any opened connections.

Step 9: Install the new compressor

• Position the compressor and start all mounting bolts by hand.
• Tighten using a 3/8" drive torque wrench to Toyota factory specification for your compressor mounting bolts.

Step 10: Reconnect A/C lines with new O-rings

• Lubricate new O-rings with a small amount of clean PAG A/C oil (Toyota-compatible).
• Install O-rings and reconnect the A/C lines.
• Tighten fasteners using a 3/8" drive torque wrench to Toyota factory specification for the line/manifold fasteners.

Step 11: Reinstall belt and shields

• Route the belt correctly and use a serpentine belt tool or 14mm box wrench to slip the belt back on.
• Reinstall splash shield/skid pieces using a metric socket set (10mm-14mm) and trim clip removal tool.

Step 12: Evacuate (vacuum) the A/C system

• Reconnect the A/C manifold gauge set for R-134a.
• Connect a vacuum pump (specialty) and pull vacuum for at least 30–45 minutes.
• Close valves and verify it holds vacuum (a drop suggests a leak).

Step 13: Recharge by weight

• Recharge with R-134a refrigerant using a refrigerant scale (specialty).
• Add the exact amount listed on your Tacoma’s under-hood A/C label.
• Reconnect the battery using a 10mm socket.

---

✅ After Repair

• Start the engine and turn A/C to MAX; confirm the compressor clutch engages and the center vent air gets cold.
• With the A/C manifold gauge set for R-134a connected, verify pressures look stable (wild swings can indicate air in the system or incorrect charge).
• Inspect all fittings for oily residue (common sign of a leak).
• Recheck belt alignment and listen for squeal or grinding.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹45,000 (parts + labor + evac/recharge)

DIY Cost: ₹10,000-₹30,000 (parts only, if you already have A/C equipment)

You Save: ₹8,000-₹15,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 2-4 hours.

---
