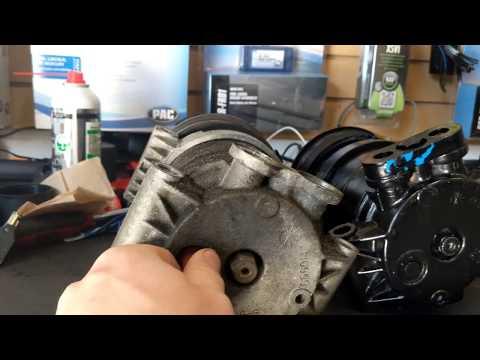

🔧 AC Compressor - Replacement

Your Sierra’s A/C compressor pumps refrigerant through the system. If it is noisy, locked up, leaking, or not building pressure, replacing it and correctly restoring the refrigerant oil is the proper fix.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Have the refrigerant professionally recovered before opening the A/C system. Do not vent refrigerant.
• Wear safety glasses and gloves. Refrigerant can cause frostbite and eye injury.
• Keep dirt out of all open lines and components. A/C systems are very sensitive to contamination.
• If the old compressor failed internally, replace the accumulator/drier and orifice tube too.
• Battery disconnect is not required, but it is a good safety step if you will be working near the starter or fan wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Metric wrench set
• Ratchet and extension set
• Serpentine belt tool
• Line wrench set
• Torque wrench
• Drain pan
• Trim clip tool
• Safety glasses
• Nitrile gloves
• Jack stands
• Floor jack (rated 3-ton minimum)
• A/C manifold gauge set
• Vacuum pump
• Refrigerant scale

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch connector pigtail - Qty: 1
• Accumulator/drier - Qty: 1
• A/C orifice tube - Qty: 1
• A/C O-ring kit - Qty: 1
• PAG refrigerant oil - Qty: 8 oz
• R-134a refrigerant - Qty: As specified on underhood label
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Have the refrigerant recovered by an A/C service machine before disconnecting any lines.
• If the compressor seized or blew debris, plan on replacing the accumulator/drier and orifice tube.
• Keep caps on every open line.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Have the refrigerant evacuated with certified recovery equipment before you begin.
• This is required before opening the A/C system.

Step 2: Remove the engine cover and gain access

• Use your hands or the correct socket set to remove any engine cover or intake ducting blocking access to the compressor.
• On the Sierra, access is from the front/passenger side of the engine bay.

Step 3: Remove the serpentine belt

• Use the serpentine belt tool to rotate the belt tensioner.
• Slip the belt off the compressor pulley and remove it from the engine.
• Take a photo of the belt path first.

Step 4: Disconnect the compressor electrical connector

• Release the locking tab and unplug the compressor clutch connector by hand.
• If the connector is brittle, use a small trim clip tool carefully.

Step 5: Disconnect the refrigerant lines

• Use the line wrench set to loosen the A/C line fittings at the compressor.
• Remove the lines slowly and catch any oil in a drain pan.
• Cap or tape the open lines immediately to keep moisture out.

Step 6: Remove the compressor

• Use the metric socket set and ratchet and extension set to remove the compressor mounting bolts.
• Support the compressor with one hand while removing the last bolt.
• Lift the compressor out through the bottom or front opening depending on clearance.

Step 7: Drain and measure the old oil

• Drain the old compressor into a clean measuring container.
• Measure the amount removed so you can restore the same amount of oil to the new parts.
• If the old compressor failed internally, flush the system and replace the accumulator/drier and orifice tube.

Step 8: Install new seals and oil

• Use the correct A/C O-ring kit and lightly oil each O-ring with PAG oil.
• Pre-fill the new compressor with the correct amount of PAG refrigerant oil based on what you drained out and any replaced parts.
• Never install dry O-rings.

Step 9: Install the new compressor

• Set the new compressor in place and start all mounting bolts by hand.
• Use the metric socket set and torque wrench to tighten the compressor bolts.
• Torque to 37 Nm (27 ft-lbs).

Step 10: Reconnect the refrigerant lines and wiring

• Install the line fittings with the line wrench set.
• Torque to 20 Nm (15 ft-lbs) for the A/C line fittings unless the fitting style on your compressor specifies otherwise.
• Reconnect the electrical connector until it clicks.

Step 11: Install the belt and reassemble

• Use the serpentine belt tool to install the belt back onto the pulleys.
• Reinstall any intake ducting or covers removed earlier.
• If you replaced the belt, route the new one exactly the same way as the old one.

Step 12: Evacuate and recharge the system

• Connect the A/C manifold gauge set and vacuum pump.
• Pull vacuum for at least 30 minutes.
• Verify it holds vacuum for 10-15 minutes with no rise.
• Recharge with the exact refrigerant amount listed on the underhood label using a refrigerant scale.

---

✅ After Repair

• Start the engine and turn the A/C on MAX.
• Check for cold air at the vents and listen for abnormal compressor noise.
• Inspect every fitting for leaks.
• Confirm both A/C lines begin to change temperature after a few minutes of operation.
• If cooling is still poor, the system may have a restriction, control issue, or fan problem.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $350-$700 (parts only)

You Save: $550-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
