🔧 Altima - A/C Compressor Replacement

Replacing the A/C compressor on your Altima means removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, then evacuating and recharging the A/C system. This job is very doable, but the refrigerant handling step is the part that usually requires shop equipment.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered—do not vent R-134a to the air.
• ⚠️ Wear safety glasses and gloves; liquid refrigerant can cause frostbite.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor.
• ⚠️ Support the car with jack stands on solid, level ground—never rely on a jack alone.
• ⚠️ Keep dirt out of A/C lines; cap/plug openings immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Torque wrench (10–80 ft-lbs range)
• Serpentine belt tool (specialty)
• Trim clip remover
• Pick set
• Line caps/plugs assortment (specialty)
• R-134a manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Refrigerant recovery machine (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• A/C refrigerant (R-134a) - Qty: 1 charge
• A/C compressor oil (ND-OIL 8, PAG for R-134a) - Qty: 1 bottle
• Serpentine belt - Qty: 1 (recommended if worn/cracked)
• Condenser/receiver-drier assembly - Qty: 1 (recommended if compressor failed internally)
• Expansion valve - Qty: 1 (recommended if compressor failed internally)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have the A/C system professionally recovered first, or use an approved refrigerant recovery machine (specialty).
• Disconnect the negative battery cable using a 10mm socket.
• If your old compressor failed loudly or seized, plan to replace the condenser/receiver-drier and possibly the expansion valve to prevent repeat failure.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the R-134a manifold gauge set (specialty) to the high- and low-side service ports.
• Recover the refrigerant using a refrigerant recovery machine (specialty) until both gauges show no pressure.
• If you don’t own recovery equipment, stop here. Have a shop recover the refrigerant, then continue the mechanical steps at home.

Step 2: Raise the front and remove the lower cover

• Lift the front of the car with a floor jack (rated 2-ton minimum) and support it with jack stands (rated 2-ton minimum).
• Remove the engine under-cover/splash shield fasteners using a 10mm socket and a trim clip remover.

Step 3: Remove the drive belt from the A/C compressor

• Relieve tension with a serpentine belt tool (specialty) on the belt tensioner, then slip the belt off the A/C compressor pulley.
• Take a quick photo of belt routing.

Step 4: Unplug the compressor electrical connector

• Press the lock tab and unplug the compressor connector by hand (use nitrile gloves for grip).

Step 5: Disconnect the refrigerant lines from the compressor

• Remove the compressor line/manifold retaining bolt using a 12mm socket.
• Carefully wiggle the manifold/lines free; do not pry hard on the aluminum.
• Immediately cap/plug the open lines and compressor ports using line caps/plugs assortment (specialty).
• Remove old O-rings with a pick set.
• Install new O-rings and lightly coat them with ND-OIL 8, PAG (oil is a lubricant here, not a sealant).
• Torque to 9.8 Nm (87 in-lbs) for the refrigerant line/manifold retaining bolt.

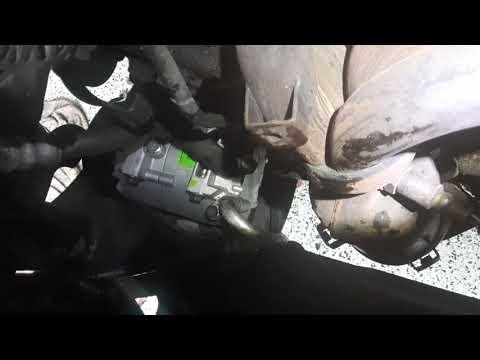

Step 6: Unbolt and remove the A/C compressor

• Support the compressor with one hand from below.
• Remove the compressor mounting bolts using a 14mm socket, 3/8" drive ratchet, and 6" extension (3/8" drive).
• Lower the compressor out from underneath.
• Torque to 25 Nm (18 ft-lbs) for the compressor mounting bolts during installation.

Step 7: Set up the new compressor (oil balancing)

• Drain the old compressor oil into a measuring container (note how much comes out).
• Drain the new compressor (some ship pre-filled) and add back the correct amount of ND-OIL 8, PAG.
• Target: match the amount you measured from the old compressor unless the rest of the system is being replaced.
• Too much oil can reduce cooling performance.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand to avoid cross-threading.
• Tighten with a 14mm socket, then finish with a torque wrench (10–80 ft-lbs range).
• Torque to 25 Nm (18 ft-lbs) for the compressor mounting bolts.

Step 9: Reconnect refrigerant lines and electrical connector

• Install the manifold/lines with new lubricated O-rings.
• Tighten the retaining bolt using a 12mm socket, then use a torque wrench (10–80 ft-lbs range).
• Torque to 9.8 Nm (87 in-lbs) for the refrigerant line/manifold retaining bolt.
• Plug the compressor connector back in by hand until it clicks.

Step 10: Reinstall the belt and under-cover

• Route the belt back on and relieve tension with the serpentine belt tool (specialty).
• Double-check the belt is centered in every pulley groove.
• Reinstall the under-cover using a 10mm socket and trim clip remover.

Step 11: Evacuate and recharge the A/C system

• Connect the R-134a manifold gauge set (specialty).
• Pull a deep vacuum with a vacuum pump (specialty) for 30–45 minutes.
• Close the valves and verify it holds vacuum (no leak) for 10 minutes.
• Recharge using a refrigerant scale (specialty) with R-134a: 0.54 kg (1.19 lb).

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and turn A/C to MAX; confirm the compressor engages and the air gets cold.
• Check for leaks at the compressor line connection using the R-134a manifold gauge set (specialty) pressures and a visual inspection.
• Listen for belt squeal and re-check belt alignment if you hear any noise.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$750 (parts only)

You Save: $650-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours.

---
