🔧 Grand Cherokee - A/C Compressor Replacement

Replacing the A/C compressor on your Grand Cherokee involves safely recovering the refrigerant, removing the drive belt, swapping the compressor (and seals), then pulling a vacuum and recharging the system. The “why” is simple: a worn or seized compressor can’t circulate refrigerant properly and can contaminate the system with metal debris.

Difficulty Level: Advanced | Estimated Time: 3-6 hours (plus evac/recharge time)

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with approved equipment; do not vent to air.
• ⚠️ Keep hands clear of the belt and pulleys; remove the key before working.
• ⚠️ Wear eye protection; refrigerant/oil can cause frostbite and eye injury.
• ⚠️ If the old compressor failed violently (noise/seized/metal), the system may need more parts (drier/expansion valve/condenser flush) to prevent repeat failure.
• ⚠️ Battery disconnect is recommended before unplugging the compressor clutch connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Socket set (8mm-18mm)
• Serpentine belt tool (specialty)
• Torque wrench (10-150 ft-lbs range)
• A/C line quick-disconnect tool set (specialty)
• Manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Trim clip tool
• Flathead screwdriver
• Catch pan
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (correct fit for your Grand Cherokee) - Qty: 1
• A/C compressor clutch connector pigtail (if damaged) - Qty: 1
• A/C compressor manifold O-ring seals - Qty: 1 set
• PAG A/C oil (R-134a compatible, correct viscosity for your system) - Qty: 1
• R-134a refrigerant - Qty: as required to reach factory charge
• Receiver/drier or accumulator (recommended if compressor failed) - Qty: 1
• Expansion valve or orifice tube (recommended if compressor failed) - Qty: 1
• Serpentine belt (recommended if cracked/glazed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the refrigerant professionally recovered first if you don’t have recovery equipment. Many local shops will do “recover only” so you can do the mechanical work.
• Disconnect the negative battery cable using a socket/wrench (so the clutch can’t engage by accident).
• Take a photo of the belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Use an R-134a manifold gauge set (specialty) only if you also have approved recovery equipment; otherwise, take it to a shop for recovery.
• Confirm the A/C system is at 0 psi before opening any lines.

Step 2: Raise and support the front of the SUV

• Use wheel chocks at the rear wheels.
• Use a floor jack (rated 3-ton minimum) to lift the front, then set it down on jack stands (rated 3-ton minimum).

Step 3: Remove any splash shields needed for access

• Use a trim clip tool and flathead screwdriver to remove push-pins/clips.
• Use a socket set (8mm-18mm) and 3/8" drive ratchet to remove shield bolts/screws.

Step 4: Remove the serpentine belt from the A/C compressor pulley

• Use a serpentine belt tool (specialty) or 1/2" drive breaker bar to rotate the belt tensioner and relieve tension.
• Slip the belt off the A/C compressor pulley and slowly release the tensioner.

Step 5: Unplug the compressor clutch electrical connector

• Use a flathead screwdriver gently if the lock tab is stubborn.
• Inspect the connector for melted plastic or loose pins; replace the pigtail if needed.

Step 6: Disconnect the A/C lines from the compressor

• Place a catch pan under the compressor and keep shop rags handy.
• Use a socket set (8mm-18mm) and 3/8" drive ratchet to remove the compressor manifold/block retaining bolt(s).
• If equipped with quick-connect style fittings, use an A/C line quick-disconnect tool set (specialty) to separate the line(s).
• Remove and discard old O-rings; do not reuse them.

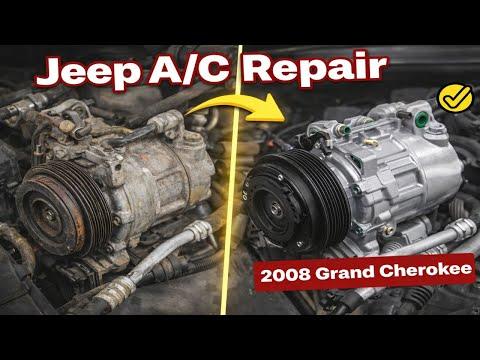

Step 7: Remove the A/C compressor

• Support the compressor with one hand.
• Use a socket set (8mm-18mm) and 3/8" drive ratchet to remove the compressor mounting bolts.
• Remove the compressor from the bracket and lower it out carefully.
• Torque on install: Compressor mounting bolts: 41 Nm (30 ft-lbs)

Step 8: Prep the new compressor (oil check and O-rings)

• Drain the old compressor oil into a catch pan and measure what comes out (so you can match it).
• Add the same amount of the correct PAG A/C oil into the new compressor (unless the new unit’s instructions say it is pre-filled and exactly how much).
• Lightly coat new O-rings with clean PAG oil before installing them (this helps sealing and prevents tearing).
• Hand-thread bolts first to avoid cross-threading.

Step 9: Install the new compressor

• Position the compressor and start all mounting bolts by hand.
• Use a torque wrench (10-150 ft-lbs range) to tighten mounting bolts: Torque to 41 Nm (30 ft-lbs).
• Reconnect the A/C line manifold/block using a socket set (8mm-18mm) and 3/8" drive ratchet.
• Torque on install: Compressor line/manifold bolt: 12 Nm (106 in-lbs)
• Reconnect the clutch electrical connector by hand until it clicks.

Step 10: Reinstall the serpentine belt

• Route the belt using your photo and/or the underhood routing diagram.
• Use a serpentine belt tool (specialty) or 1/2" drive breaker bar to move the tensioner, then slip the belt onto the last pulley.
• Visually confirm the belt is centered in every pulley groove.

Step 11: Reinstall splash shields and lower the SUV

• Use a socket set (8mm-18mm) and 3/8" drive ratchet to reinstall fasteners.
• Use a floor jack (rated 3-ton minimum) to lift slightly, remove jack stands, then lower fully.

Step 12: Evacuate (vacuum) the system and recharge

• Use an R-134a manifold gauge set (specialty) to connect to the high/low service ports.
• Use a vacuum pump (specialty) to pull vacuum for at least 30 minutes, then close valves and verify it holds vacuum (leak check).
• Recharge by weight using a refrigerant scale (specialty) to the factory-specified charge listed on the underhood A/C label.
• Do not “charge by pressure” alone; correct charge is by weight.

---

✅ After Repair

• Reconnect the negative battery cable using a socket set (8mm-18mm).
• Start the engine and set A/C to MAX; confirm the compressor clutch cycles normally and the air gets cold.
• Use the manifold gauge set for R-134a (specialty) to confirm pressures are reasonable for ambient temperature.
• Check for leaks at the compressor manifold area (look for oily residue).
• If cooling is weak or pressures are abnormal, stop and re-check for leaks or incorrect charge amount.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor, varies a lot if contamination requires more parts)

DIY Cost: $250-$750 (parts only, plus possible evac/recharge fee)

You Save: $650-$1,050 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
