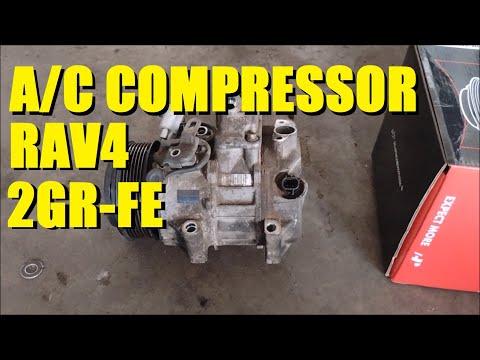

🔧 RAV4 - A/C Compressor Replacement

Replacing the A/C compressor on your RAV4 is a moderate job mechanically, but the refrigerant handling (recover/evacuate/recharge) is the part that requires special equipment. The safe way is: recover the refrigerant first, replace parts, then pull vacuum and recharge to spec.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Two quick questions before you start:

• ❓ Do you have access to an A/C recovery machine (or will a shop recover/recharge for you)?
• ❓ Did the old compressor fail “mechanically” (grinding/locked up) or just “no cooling”?

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is hazardous: do not vent R-134a to the air; it can cause frostbite and is illegal to release.
• ⚠️ Keep hands clear of the belt path; the tensioner is spring-loaded.
• ⚠️ Let the engine cool before working near the radiator and exhaust.
• ⚠️ Disconnect the negative battery terminal before unplugging the compressor clutch connector.
• ⚠️ If the compressor grenaded (metal debris), more parts must be replaced or the new compressor can fail quickly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• Torque wrench (10–80 ft-lbs range)
• Torque wrench (inch-pound, 50–200 in-lbs range)
• Serpentine belt tool or 14mm wrench
• Trim clip remover
• Line plug set
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• A/C recovery machine (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor assembly - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG A/C oil (ND-OIL 8 equivalent) - Qty: 1
• R-134a refrigerant - Qty: 1
• Receiver/drier - Qty: 1
• Expansion valve - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the refrigerant professionally recovered first (or use an approved recovery machine).
• Disconnect the negative battery terminal using a 10mm socket once the refrigerant is recovered.
• If the old compressor seized or made metal noise: plan to replace the receiver/drier and expansion valve, and flush lines as needed. Debris can kill the new compressor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant (must be empty before opening lines)

• Use an A/C recovery machine (specialty) to recover the system completely.
• Do not proceed until both high and low sides are at 0 psi on the A/C manifold gauge set (specialty).

Step 2: Disconnect battery and raise the front

• Use a 10mm socket to remove the negative battery terminal and isolate it.
• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine cover/splash shield clips using a trim clip remover and bolts with a 10mm socket.

Step 3: Remove the serpentine belt from the A/C compressor

• Use a serpentine belt tool or 14mm wrench to rotate the belt tensioner and relieve belt tension.
• Slip the belt off the A/C compressor pulley and let it rest out of the way.
• Snap a photo of belt routing first.

Step 4: Unplug the compressor clutch connector

• Locate the compressor electrical connector and release it by hand.
• If access is tight, use a 12mm socket to remove any small bracket bolts blocking reach.

Step 5: Disconnect the refrigerant lines from the compressor

• Place a rag under the line joint area.
• Use a 10mm socket to remove the A/C line manifold retaining bolt at the compressor.
• Carefully pull the line manifold straight off the compressor ports.
• Immediately cap/plug the open lines using a line plug set to keep moisture and dirt out.
• Remove and discard the old O-rings.
• Torque to 9 N·m (80 in-lbs) when reinstalling the manifold bolt.

Step 6: Remove the compressor

• Support the compressor by hand from below.
• Use a 12mm socket and 3/8" drive ratchet with extensions to remove the compressor mounting bolts.
• Lower and remove the compressor from underneath.
• Torque to 25 N·m (18 ft-lbs) when reinstalling the compressor mounting bolts.

Step 7: Prepare the new compressor (oil balance)

• Drain the shipping oil from the new compressor into a measuring cup (tip it and rotate the hub by hand).
• If you’re replacing only the compressor: add the same amount of fresh PAG A/C oil (ND-OIL 8 equivalent) back into the new compressor.
• If you’re also replacing the receiver/drier, condenser, or evaporator: oil amount changes. Tell me what you’re replacing and I’ll map the oil add-back.
• Slowly rotate the compressor hub by hand 8–10 turns to distribute oil.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand.
• Tighten with a 12mm socket, then final tighten using a torque wrench: Torque to 25 N·m (18 ft-lbs).
• Reconnect the electrical connector by hand until it clicks.

Step 9: Install new O-rings and reconnect A/C lines

• Lightly coat new O-rings with fresh PAG A/C oil (ND-OIL 8 equivalent) (this helps them seal and not tear).
• Install O-rings onto the line manifold, then push the manifold straight onto the compressor ports.
• Install the retaining bolt using a 10mm socket, then use an inch-pound torque wrench: Torque to 9 N·m (80 in-lbs).

Step 10: Reinstall the belt and splash shield

• Route the belt correctly, then use a serpentine belt tool or 14mm wrench to rotate the tensioner and slip the belt back on.
• Reinstall the splash shield using a 10mm socket and clips with a trim clip remover.
• Lower the vehicle off the jack stands.

Step 11: Evacuate and recharge the A/C system

• Connect the A/C manifold gauge set (specialty) to the high and low service ports.
• Use a vacuum pump (specialty) to pull a deep vacuum for 30–45 minutes.
• Close the valves and verify it holds vacuum for 10–15 minutes (leak check).
• Recharge by weight using a refrigerant scale (specialty) with R-134a refrigerant.
• Charging by “pressure only” can damage the compressor.

---

✅ After Repair

• Reconnect the negative battery terminal using a 10mm socket.
• Start the engine and set A/C to MAX, blower HIGH, recirculation ON.
• Confirm the compressor clutch engages and the center vent temperature drops.
• Check for abnormal noises, belt squeal, and any oily residue at the compressor line manifold (a sign of a leak).
• If cooling is weak: verify correct refrigerant weight charge and verify condenser fan operation.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor + evac/recharge)

DIY Cost: $250-$900 (parts only, depending on what you replace)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
