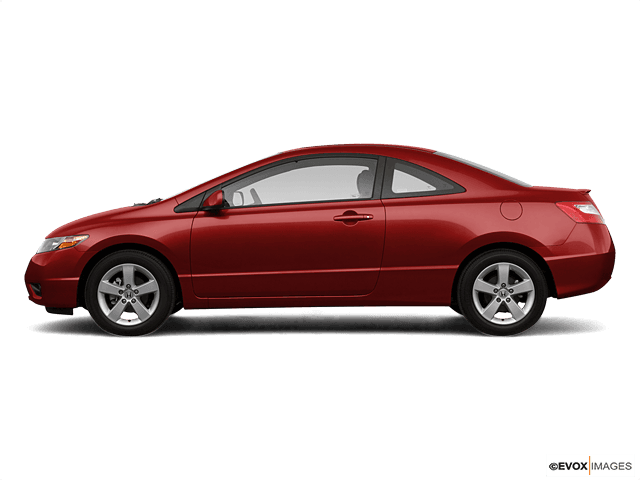

🔧 Civic - A/C Compressor Replacement

The A/C compressor pumps refrigerant and oil through your A/C system. If it’s leaking, noisy, seized, or not building pressure, replacing it is the correct fix—but the refrigerant must be recovered and the system must be vacuumed/recharged properly afterward.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air—have the system professionally recovered first.
• ⚠️ Keep hands/tools clear of the belt and pulleys if the engine is running.
• ⚠️ Wear safety glasses and gloves—refrigerant/oil can injure eyes/skin.
• ⚠️ Disconnect the battery negative cable before unplugging the compressor.
• ⚠️ Cap/cover open A/C lines immediately to keep moisture/dirt out.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 ft-lbs range)
• 6" socket extension
• Phillips screwdriver
• Trim clip removal tool
• Line/flare-nut wrench set
• Pick tool
• Drain pan
• Shop rags
• A/C manifold gauge set for R-134a
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Refrigerant recovery machine (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG 46 A/C compressor oil - Qty: 1
• R-134a refrigerant - Qty: 17.6 oz (500 g)
• Serpentine/drive belt - Qty: 1 (recommended if cracked/oil-soaked)
• Condenser with receiver/drier - Qty: 1 (recommended if old compressor failed with metal)
• A/C expansion valve - Qty: 1 (recommended if old compressor failed with metal)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have an A/C shop recover the refrigerant first, or use a refrigerant recovery machine (specialty).
• Disconnect the battery negative cable using a 10mm socket.
• Raise the front and support it securely on jack stands.
• If your old compressor seized or made “grinding” noises, plan on replacing the condenser/receiver-drier and expansion valve too. Metal debris can destroy the new compressor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Use a refrigerant recovery machine (specialty) to recover the refrigerant completely.
• If you don’t have recovery equipment, stop here and have a shop evacuate/recover the system first.

Step 2: Remove the lower splash shield (if equipped)

• Use a Phillips screwdriver and trim clip removal tool to remove the clips/screws.
• Set the shield and fasteners aside so you don’t lose them.

Step 3: Relieve belt tension and remove the drive belt

• Locate the belt tensioner.
• Use a 14mm socket and 3/8" drive ratchet to rotate the tensioner and slip the belt off the A/C compressor pulley.
• Inspect the belt for cracks or glazing; replace it if needed.

Step 4: Unplug the compressor electrical connector

• Use a pick tool gently if the lock tab is stubborn.
• Pull the connector straight off—don’t tug on the wires.

Step 5: Disconnect the A/C lines from the compressor

• Place a drain pan under the compressor to catch oil.
• Use a line/flare-nut wrench set (preferred) or appropriate socket to remove the line/manifold retaining bolt(s).
• Carefully pull the manifold/lines straight back off the compressor.
• Immediately cover/cap the open lines and compressor ports using shop rags. Moisture is the enemy.
• Remove and discard the old O-rings using a pick tool.

Step 6: Remove the compressor mounting bolts and compressor

• Support the compressor with one hand.
• Use a 12mm socket, ratchet, and extension to remove the compressor mounting bolts.
• Lower the compressor out carefully (it’s heavier than it looks).

Step 7: Match the oil amount (critical for compressor life)

• Drain oil from the old compressor into a drain pan and measure what comes out (use the markings on the pan or a measuring cup you don’t mind getting oily).
• Drain the shipping oil from the new compressor (many arrive pre-filled).
• Add the same measured amount of PAG 46 A/C compressor oil into the new compressor.
• If you replaced the condenser/receiver-drier or other major parts, the oil amount changes—follow the part manufacturer’s instructions.

Step 8: Install new O-rings and reinstall the compressor

• Lightly coat the new O-rings with clean PAG 46 A/C compressor oil using a gloved finger.
• Install the compressor and hand-start all mounting bolts.
• Tighten mounting bolts evenly using a 12mm socket and torque wrench: Torque to 25 N·m (18 ft-lbs).

Step 9: Reconnect the A/C lines

• Install the lubricated O-rings onto the line manifold.
• Push the lines straight in (do not force or cock them sideways).
• Install the retaining bolt(s) and tighten with a torque wrench: Torque to 10 N·m (7 ft-lbs).

Step 10: Reconnect the electrical connector and reinstall the belt

• Plug in the compressor connector until it clicks.
• Route the belt correctly.
• Use a 14mm socket and ratchet to rotate the tensioner and slip the belt back on.
• Double-check the belt is fully seated in every pulley groove.

Step 11: Reinstall splash shield and lower the car

• Reinstall the splash shield using a Phillips screwdriver and trim clip removal tool.
• Lower the vehicle from the jack stands using the floor jack.

Step 12: Evacuate (vacuum) the system and recharge by weight

• Reconnect the battery using a 10mm socket.
• Connect the A/C manifold gauge set for R-134a to the high/low service ports.
• Use a vacuum pump (specialty) to pull vacuum for 30–45 minutes.
• Close the valves and confirm it holds vacuum for 10–15 minutes (leak check).
• Recharge using a refrigerant scale (specialty): add 17.6 oz (500 g) of R-134a by weight.

---

✅ After Repair

• Start the engine and set A/C to MAX, recirculation ON, blower HIGH.
• Verify the compressor clutch engages and the air gets cold at the vents.
• Check for leaks at the compressor line connection (oil residue or bubbling with soapy water).
• If A/C is weak or noisy, shut it off—low charge or contamination can damage the new compressor.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $250-$750 (parts only, plus $150-$300 if a shop vacuums/recharges)

You Save: $300-$1,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
