🔧 Sierra 1500 - A/C Compressor Replacement

Replacing the A/C compressor on your Sierra 1500 involves safely recovering the refrigerant, removing the drive belt and A/C lines, swapping the compressor (and typically the receiver/drier and orifice tube), then evacuating and recharging the system. This is important because any debris or moisture left in the system can quickly ruin the new compressor.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Two quick questions so I can give the exact OEM-correct steps and torque specs:

• ❓ Is your truck the “Classic” body style or the “New Body Style”? (Both exist for 2007.)
• ❓ Will you be using A/C recovery + vacuum + recharge equipment at home, or having a shop do the recover/recharge?

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air—have the system professionally recovered if you don’t have recovery equipment.
• ⚠️ Wear safety glasses and nitrile gloves; refrigerant/oil can freeze-burn skin and damage eyes.
• ⚠️ Keep hands/tools clear of the serpentine belt path and pulleys.
• ⚠️ A/C lines can be under pressure; only disconnect lines after proper recovery and with the engine off.
• 🔋 Battery disconnect is recommended before unplugging the compressor electrical connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive ratchet
• Socket set (metric 8mm–15mm)
• Wrench set (metric 10mm–15mm)
• Serpentine belt tool (1/2" drive)
• Torque wrench (10–100 ft-lbs range)
• Torque wrench (in-lb range)
• Trim clip remover
• Flathead screwdriver
• Line caps/plugs kit
• Shop rags
• Drain pan
• A/C manifold gauge set (specialty)
• Refrigerant recovery machine (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• UV leak detection light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (with clutch/pulley) - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• Receiver/drier or accumulator (system moisture filter) - Qty: 1
• Orifice tube - Qty: 1
• PAG A/C oil (GM-spec for your compressor) - Qty: 1 bottle
• R-134a refrigerant (correct charge by underhood label) - Qty: 1–3 cans
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and use wheel chocks.
• 🔧 If you’re lifting the truck, use a floor jack and support it with jack stands before going underneath.
• 🧊 If you do not have a recovery machine, schedule a shop to recover refrigerant first. You can do the mechanical swap at home, then return for vacuum/recharge.
• 🔋 Disconnect the negative battery cable using a 10mm socket.
• 🧠 Locate the underhood A/C label for the exact R-134a charge amount; you’ll need it for recharging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the A/C manifold gauge set (specialty) to the high/low service ports.
• Recover the system using a refrigerant recovery machine (specialty) per the machine instructions.
• Never crack a line to “see if pressure.”

Step 2: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable and move it aside.

Step 3: Gain access to the compressor

• If needed, raise the front and support it with jack stands using a floor jack.
• Remove any lower splash shield pieces using a socket set (metric 8mm–10mm) and a trim clip remover.

Step 4: Remove the serpentine belt from the A/C compressor

• Use a serpentine belt tool (1/2" drive) to rotate the belt tensioner and relieve tension.
• Slip the belt off the A/C compressor pulley, then slowly release the tensioner.
• If the belt is worn or oil-soaked, replace it.

Step 5: Unplug the compressor electrical connector

• Release the connector lock using a flathead screwdriver (gently) and unplug it.

Step 6: Disconnect the A/C lines from the compressor

• Place a drain pan under the compressor and use shop rags to catch oil drips.
• Remove the compressor manifold/block retaining bolt(s) using the correct size from your socket set (metric 10mm–13mm).
• Carefully wiggle the line/manifold free (do not pry hard on aluminum).
• Immediately cap the open lines with a line caps/plugs kit to keep moisture out.

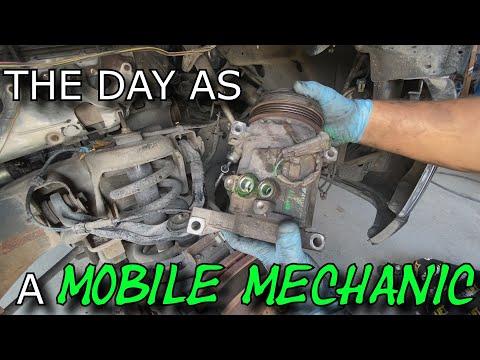

Step 7: Remove the A/C compressor

• Support the compressor by hand and remove the mounting bolts using a socket set (metric 13mm–15mm) and a ratchet.
• Remove the compressor from the bracket and lower it out.

Step 8: Replace the receiver/drier (or accumulator) and orifice tube

• Replace the receiver/drier or accumulator using a socket set (metric 8mm–13mm) and wrench set (metric 10mm–15mm) as needed.
• Replace the orifice tube (usually in a liquid line fitting). Use wrenches to open the fitting and pull the tube out.
• These protect the new compressor from moisture/debris.

Step 9: Prepare the new compressor (oil + O-rings)

• Drain and measure oil from the old compressor into a drain pan.
• Add the correct amount/type of PAG A/C oil to the new compressor (follow the compressor instructions and match what you drained when applicable).
• Replace all manifold O-rings with the new A/C compressor manifold O-ring set and lightly lubricate with PAG A/C oil.
• Hand-rotate the compressor hub a few turns to distribute oil (engine off).

Step 10: Install the new compressor

• Position the compressor and start all mounting bolts by hand.
• Tighten the bolts evenly using a torque wrench.
• Torque specs: I’ll provide the exact OEM torque values once you answer Classic vs New Body Style. (They differ by compressor/bracket setup.)

Step 11: Reconnect the A/C lines with new O-rings

• Remove the line caps and install the manifold/lines onto the compressor.
• Install the retaining bolt(s) and tighten using an in-lb torque wrench.
• Torque specs: I’ll provide the exact OEM in-lb spec once body style is confirmed.

Step 12: Reinstall belt and remaining components

• Route the belt correctly and rotate the tensioner using the serpentine belt tool (1/2" drive).
• Reinstall splash shields using a socket set (metric 8mm–10mm) and trim clip remover.
• Reconnect the compressor electrical connector by hand until it clicks/locks.
• Reconnect the battery negative cable using a 10mm socket.

Step 13: Evacuate and recharge

• Pull vacuum using a vacuum pump (specialty) and A/C manifold gauge set (specialty) to remove air/moisture.
• Verify it holds vacuum (leak check) before charging.
• Recharge by weight using a refrigerant scale (specialty) and R-134a refrigerant to the amount on the underhood label.
• Check for leaks using a UV leak detection light (specialty) if dye is present.

---

✅ After Repair

• Start the engine and turn A/C to MAX; verify the compressor engages and the air gets cold.
• Check vent temperature and confirm both high/low side pressures look normal on the manifold gauge set.
• Inspect all A/C fittings for oil residue or bubbles that indicate a leak.
• Road test and recheck belt tracking and any new noises.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $250-$700 (parts only, assuming you have access to A/C equipment)

You Save: $650-$1,100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
