🔧 Explorer - A/C Compressor Replacement

Replacing the A/C compressor on your Explorer means removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, and then vacuuming and recharging the system. Because the A/C system is pressurized and uses refrigerant, the correct (and safe) way is to have the refrigerant professionally recovered before you loosen any A/C fitting.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air; have it recovered with an A/C machine.
• ⚠️ Wear eye protection and gloves; refrigerant/oil can cause frostbite and burns.
• ⚠️ Do not open A/C lines until the system is fully recovered (pressure at zero).
• ⚠️ Keep dirt/moisture out: cap/plug every open A/C line immediately.
• ⚠️ Disconnect the negative battery cable before working near the belt and electrical connectors.
• ⚠️ If the old compressor failed “internally” (metal debris), more parts and flushing are required to prevent repeat failure.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/4" drive ratchet
• 3/8" drive ratchet
• 1/4" drive torque wrench (in-lb)
• 3/8" drive torque wrench (ft-lb)
• Socket set (8mm-15mm)
• Serpentine belt tool 3/8" drive
• Torx bit set (T20-T30)
• Trim clip remover
• Flathead screwdriver
• Pick set (for O-rings)
• A/C line disconnect tool set (specialty)
• Line caps/plugs kit (A/C) (specialty)
• Drain pan
• Shop rags
• UV dye flashlight (optional)
• Manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (new or remanufactured) - Qty: 1
• A/C compressor O-ring/seal kit - Qty: 1
• A/C accumulator/drier - Qty: 1
• Orifice tube - Qty: 1
• R-134a refrigerant - Qty: As needed to factory charge
• PAG A/C oil (Ford-spec for R-134a systems) - Qty: As needed
• Serpentine belt - Qty: 1 (recommended if worn or oil-soaked)
• A/C system flush solvent - Qty: As needed (only if contaminated)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have a shop recover the refrigerant completely before starting.
• Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it.
• If your old compressor failed with noise/seizure or you see shiny metal in the oil, plan to replace the accumulator/drier and orifice tube and flush the system.

Quick question (1 of 2): Does your Explorer have rear A/C (rear ceiling vents and rear A/C lines running under the vehicle)?

Quick question (2 of 2): Did the old compressor fail catastrophically (seized, loud grinding, or metal debris), or are you replacing it for a leak/clutch issue?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Make sure the A/C system is empty (recovered)

• Confirm the refrigerant was recovered using an A/C machine before loosening any fitting.
• If you’re using a manifold gauge set for R-134a (specialty), verify both sides show no pressure.

Step 2: Raise the front safely

• Use a floor jack (rated 3-ton minimum) to lift the front.
• Support the frame with jack stands (rated 3-ton minimum).

Step 3: Remove lower splash shield (if equipped)

• Use a trim clip remover and 8mm socket to remove clips/bolts.
• Set fasteners aside in a tray. Bag and label bolts by area.

Step 4: Remove the serpentine belt from the compressor

• Use a serpentine belt tool 3/8" drive to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Inspect the belt. If cracked/glazed/oil-soaked, replace it.

Step 5: Disconnect the compressor electrical connector

• Unplug the compressor clutch/control connector by hand; use a flathead screwdriver only if needed to release the tab.

Step 6: Disconnect the refrigerant manifold/lines at the compressor

• Place a drain pan under the compressor.
• Use the correct socket set (8mm-15mm) to remove the line/manifold retaining bolt(s).
• Gently wiggle the manifold free; do not pry hard on aluminum lines.
• Immediately cap the open lines using a line caps/plugs kit (A/C) (specialty).
• Remove and discard old O-rings with a pick set (for O-rings).
• Torque on reassembly (line/manifold bolt): Torque to 89 in-lb (10 N·m)

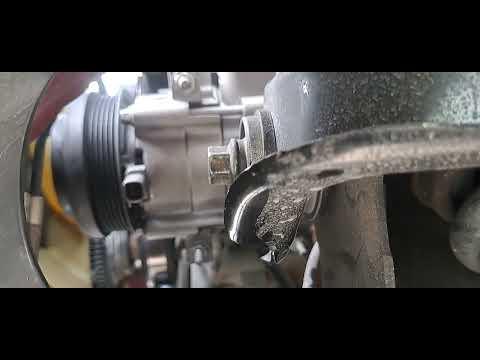

Step 7: Remove the A/C compressor mounting bolts and compressor

• Support the compressor with one hand.
• Use a socket set (8mm-15mm) and 3/8" drive ratchet to remove the mounting bolts.
• Lower the compressor out carefully without bending nearby lines.
• Torque on reassembly (compressor mounting bolts): Torque to 18 ft-lb (25 N·m)

Step 8: Replace the accumulator/drier (recommended with compressor)

• The accumulator/drier removes moisture; once opened, it should be replaced.
• Disconnect the lines using the correct A/C line disconnect tool set (specialty) if your line style requires it.
• Install new O-rings from the A/C compressor O-ring/seal kit (lightly oil them with PAG oil by hand).

Step 9: Replace the orifice tube

• The orifice tube is a small metering filter in the liquid line; it often traps debris.
• Use the A/C line disconnect tool set (specialty) to separate the line at the orifice-tube joint.
• Pull the old orifice tube out carefully and inspect for metal particles.
• If you see metal, plan to flush the condenser and lines (next step).

Step 10: Flush (only if contaminated)

• Use A/C system flush solvent and shop air per the flush kit directions (not the vacuum pump) to flush lines/condenser.
• Do not flush the new compressor, accumulator/drier, orifice tube, or any expansion valve components.

Step 11: Prepare and install the new compressor

• Drain and measure oil from the old compressor into a drain pan.
• Add the correct amount of PAG A/C oil to the new compressor to match what was removed (and account for any new components per the compressor instructions).
• Install the compressor and hand-thread bolts first to avoid cross-threading.
• Use a 3/8" drive torque wrench (ft-lb): Torque to 18 ft-lb (25 N·m)

Step 12: Reconnect A/C lines with new O-rings

• Install new O-rings and lightly coat them with PAG A/C oil (finger smear only).
• Seat the manifold squarely (crooked installation will cause a leak).
• Use a 1/4" drive torque wrench (in-lb): Torque to 89 in-lb (10 N·m)

Step 13: Reinstall belt and shields

• Route the belt correctly and use the serpentine belt tool 3/8" drive to slip it back on.
• Reinstall the splash shield using the trim clip remover and 8mm socket.

Step 14: Vacuum test and recharge

• Connect the manifold gauge set for R-134a (specialty) and vacuum pump (specialty).
• Pull vacuum for at least 30–45 minutes, then close valves and confirm it holds vacuum (leak check).
• Recharge by weight using a refrigerant scale (specialty) with the under-hood A/C charge label amount.

---

✅ After Repair

• Reconnect the battery using a 10mm socket.
• Start the engine and turn A/C to MAX; confirm the compressor engages and air gets cold.
• Check for leaks at all fittings (UV dye helps if you added dye).
• Listen for abnormal noises and verify belt runs true.
• If you have rear A/C, confirm cold air at rear vents too.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor + evac/recharge)

DIY Cost: $250-$700 (parts only, assuming you already have evac/recharge equipment)

You Save: $650-$1,100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
