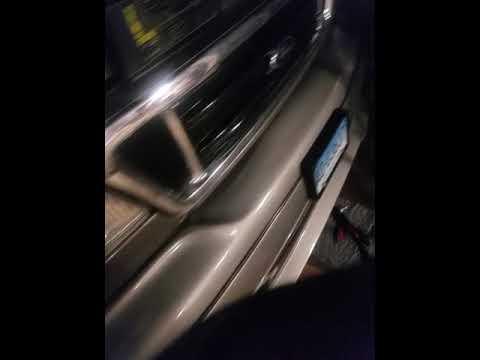

🔧 E-150 - A/C Compressor Replacement

Replacing the A/C compressor on your E-150 involves safely recovering the refrigerant, removing the old compressor, replacing key wear items (like the accumulator/drier and O-rings), then vacuuming and recharging the system. This matters because an improperly serviced A/C system can be damaged quickly and refrigerant release is unsafe and illegal.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air; have it professionally recovered first.
• ⚠️ Wear safety glasses and gloves; liquid refrigerant can cause frostbite.
• ⚠️ Keep the engine off and keys out while hands are near the belt and pulleys.
• ⚠️ Disconnect the negative battery cable before unplugging A/C wiring.
• ⚠️ Cap open A/C lines immediately; moisture ruins A/C components.
• ⚠️ If the old compressor “grenaded” (metal debris), the system must be flushed and the orifice tube replaced or the new compressor can fail fast.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/2" drive breaker bar
• Serpentine belt tool (specialty)
• 3/8" drive ratchet
• 1/4" drive ratchet
• Socket set 8mm-15mm
• Wrench set 8mm-15mm
• Torque wrench 10-80 ft-lbs
• Flat-blade screwdriver
• Pick set
• A/C spring-lock disconnect tool set (specialty)
• A/C manifold gauge set R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• Drain pan
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C accumulator/drier - Qty: 1
• A/C orifice tube - Qty: 1
• A/C O-ring kit (R-134a compatible) - Qty: 1
• PAG refrigerant oil (PAG 46) - Qty: 1
• R-134a refrigerant - Qty: As needed (charge by underhood label)
• Serpentine belt - Qty: 1 (recommended if cracked/glazed)
• A/C system flush solvent - Qty: As needed (only if compressor failed with debris)

---

📋 Before You Begin

• 🧰 Have a shop recover the refrigerant first, or use certified recovery equipment.
• 🧰 Park on level ground, set the parking brake, and chock the rear wheels.
• 🧰 Let the engine cool completely; you’ll work near hot engine parts.
• 🧰 Disconnect the negative battery cable using a 10mm socket.
• 🧰 Find the underhood A/C label and note the exact R-134a charge amount (front-only vs rear A/C can differ).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the A/C manifold gauge set R-134a (specialty) to the high and low service ports.
• Use a refrigerant recovery machine (specialty) to fully recover the system.
• Never crack a line open to “see if it’s empty.”

Step 2: Disconnect battery and gain access

• Disconnect the negative battery terminal using a 10mm socket.
• If needed for access underneath, raise the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).

Step 3: Remove the serpentine belt from the A/C compressor

• Relieve belt tension using a serpentine belt tool (specialty) or 1/2" drive breaker bar on the tensioner.
• Slip the belt off the A/C compressor pulley.
• If the belt will be reused, take a photo of the belt routing before removal.

Step 4: Unplug the compressor electrical connector

• Unplug the compressor clutch connector by releasing the tab with a flat-blade screwdriver (if needed).

Step 5: Disconnect the A/C lines at the compressor

• Place a drain pan under the compressor and use shop rags to catch oil drips.
• Disconnect the suction/discharge line using the A/C spring-lock disconnect tool set (specialty).
• Spring-lock tool = slides into the fitting to release it.
• Immediately cap/cover the open lines with clean shop rags to keep moisture out.
• Remove and discard the old O-rings using a pick set.

Step 6: Remove the compressor from its bracket

• Remove the compressor mounting bolts using a socket set 8mm-15mm and 3/8" drive ratchet.
• Support the compressor as you remove the last bolt, then lift it out.
• On installation, tighten compressor mounting bolts: Torque to 25 N·m (18 ft-lbs).

Step 7: Replace the accumulator/drier

• Locate the accumulator (the aluminum “can” on the low side near the evaporator lines).
• Disconnect the lines using the A/C spring-lock disconnect tool set (specialty).
• Remove any retaining bracket/strap using the socket set 8mm-15mm.
• Install the new accumulator with new O-rings.
• Lubricate each new O-ring with a small amount of PAG refrigerant oil (PAG 46) before assembly.

Step 8: Replace the orifice tube

• Find the orifice tube in the liquid line connection (commonly at an inline joint at the condenser-to-evaporator line).
• Separate the line using the A/C spring-lock disconnect tool set (specialty).
• Pull the old orifice tube out using a pick set.
• Install the new orifice tube fully seated in the correct direction.
• If it’s packed with metal, flush is required.

Step 9: Set the compressor oil amount (critical)

• Drain the old compressor oil into a container (tip and rotate the hub by hand) and measure what came out.
• Add the same measured amount of PAG refrigerant oil (PAG 46) into the new compressor (unless the new unit’s instructions specify otherwise).
• Slowly rotate the compressor hub by hand 10-15 turns to distribute oil evenly.

Step 10: Install the new compressor and reconnect lines

• Position the compressor and start all mounting bolts by hand.
• Tighten mounting bolts using a torque wrench 10-80 ft-lbs: Torque to 25 N·m (18 ft-lbs).
• Install new lubricated O-rings on the compressor manifold/line connection using a pick set.
• Reconnect the A/C lines until the spring-lock clicks/locks in place.
• Reinstall any retaining bolts using a socket set 8mm-15mm and tighten line/manifold retaining bolt: Torque to 20 N·m (15 ft-lbs).
• Reconnect the compressor electrical connector by hand until it clicks.

Step 11: Reinstall the serpentine belt

• Route the belt correctly (use your photo) and relieve tension with the serpentine belt tool (specialty) or 1/2" drive breaker bar.
• Release the tensioner slowly and verify the belt is fully seated in every pulley groove.

Step 12: Evacuate the system with a vacuum

• Reconnect the A/C manifold gauge set R-134a (specialty).
• Connect the vacuum pump (specialty) and pull vacuum for at least 30-45 minutes.
• Close the valves and verify it holds vacuum for 10 minutes (no leak).

Step 13: Recharge by weight (not by pressure)

• Charge the system using a refrigerant scale (specialty) with R-134a refrigerant to the exact amount listed on the underhood label.
• Start the engine and set A/C to MAX, blower HIGH, doors open, and finish charging as specified by your equipment process.

---

✅ After Repair

• ✅ Reconnect the negative battery cable using a 10mm socket.
• ✅ Start the engine and verify the belt runs true (no wobble, no squeal).
• ✅ Check for leaks at every opened fitting (an electronic leak detector or UV dye helps).
• ✅ Confirm vent temperature drops and the compressor cycles normally.
• ✅ If cooling is weak, do not “top off”; recover and recharge to the correct weight.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $300-$750 (parts only, not counting specialty equipment)

You Save: $600-$1,050 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
