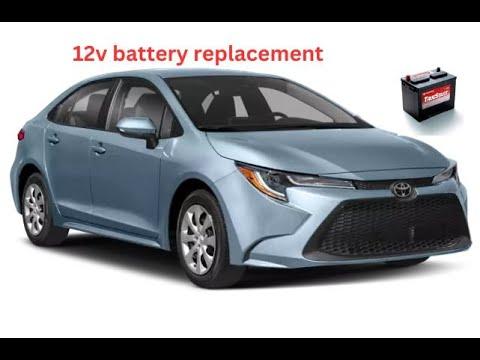

🔧 Corolla - Battery Replacement

You’ll be replacing the 12V starter battery under the hood of your Corolla. This powers starting, lights, electronics, and is a common wear item every few years.

Difficulty Level: Beginner | Estimated Time: 30-45 minutes

---

⚠️ Safety & Precautions

• 🛑 Always turn the engine off, remove the key, and make sure the headlights and interior lights are off before starting.
• ⚡ Disconnect the negative (-) terminal first and reconnect it last to reduce the risk of short circuits.
• 🧤 Wear gloves and safety glasses; batteries contain acid and can leak or vent gas.
• 🔥 Do not smoke or use open flames near the battery.
• 📌 Your Corolla does not require battery coding, but you may need to reset clock and radio presets after replacement.
• ♻️ Plan to return the old battery to the parts store for proper recycling.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm combination wrench
• 🧰 10mm socket
• 🧰 12mm socket
• 🧰 Ratchet handle 3/8"
• 🧰 3" socket extension
• 🧰 Small flathead screwdriver
• 🧰 Battery terminal brush (specialty)
• 🧰 Battery carrying strap (specialty)
• 🧰 Work gloves
• 🧰 Safety glasses
• 🧰 Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 12V battery (group size matched to Corolla SE 2.0L) - Qty: 1
• 🔩 Battery terminal anti-corrosion washers - Qty: 2
• 🔩 Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Corolla on level ground, shift to P, and set the parking brake.
• 🔑 Turn the ignition off and remove the key or key fob from the vehicle.
• 📱 If you care about radio presets and clock, note them now; you may need to reset them.
• 📦 Open the hood using the hood release inside, then the safety catch under the front edge of the hood, and secure the hood prop.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the battery and inspect the area

• 🧰 Open the hood and look on the driver’s side front corner of the engine bay; the battery is a black rectangular box with two cables on top.
• Use shop towels to wipe any dirt so you can clearly see the terminals and hold-down bracket.
• Note which terminal is + and - before starting

Step 2: Remove any plastic battery cover

• 🧰 If your Corolla has a plastic top cover on the battery, gently lift it or unclip it.
• Use a small flathead screwdriver to gently release any tabs if they feel stuck.
• Set the cover aside somewhere clean.

Step 3: Disconnect the negative (-) terminal

• 🧰 The negative terminal is usually marked with a - sign and often has a black cable.
• Use a 10mm combination wrench or 10mm socket with ratchet to loosen the nut on the negative terminal clamp.
• Once loose, twist the clamp gently and lift it off the battery post; move the cable aside so it cannot spring back to the post.
• Always remove negative cable first for safety

Step 4: Disconnect the positive (+) terminal

• 🧰 The positive terminal is marked with a + sign and usually has a red cover.
• Flip open or remove the red plastic cap using your small flathead screwdriver if needed.
• Use the 10mm combination wrench or 10mm socket to loosen the nut on the positive terminal clamp.
• Lift the clamp off the post and move it aside, again making sure it cannot fall back onto the terminal.

Step 5: Remove the battery hold-down clamp

• 🧰 At the base or side of the battery, there is a metal or plastic bracket holding it in place.
• Use a 12mm socket, 3" extension, and ratchet to remove the hold-down bolt(s).
• Lift the hold-down bracket out and set it somewhere safe.
• Keep track of bolt and bracket; you’ll reuse them

Step 6: Lift out the old battery

• 🧰 Batteries are heavy; use a battery carrying strap if your battery does not have a handle.
• Lift the battery straight up and out of the tray, being careful not to hit nearby parts.
• Place the old battery upright on the ground away from children and pets.

Step 7: Clean the battery tray and terminals

• 🧰 Use shop towels to wipe dirt and any moisture from the battery tray.
• Use a battery terminal brush to clean the inside of the cable clamps until metal is shiny; this improves electrical contact.
• If you see white or green corrosion, brush it off thoroughly.

Step 8: Place the new battery in the tray

• 🧰 Carefully lower the new battery into the tray using the built-in handle or battery carrying strap.
• Make sure the positive (+) and negative (-) posts are in the same positions as the old battery so the cables reach correctly.
• Ensure the battery sits flat and fully in the tray.

Step 9: Install anti-corrosion washers and hold-down clamp

• 🧰 Slide the anti-corrosion washers over the battery posts (usually red on +, green or black on -).
• Reinstall the hold-down bracket using the 12mm socket, extension, and ratchet.
• Tighten the hold-down bolt securely: Torque to about 10 Nm (7 ft-lbs) — snug, but do not overtighten.
• Battery must not move when you push it

Step 10: Reconnect the positive (+) terminal

• 🧰 Place the positive cable clamp fully down on the + post.
• Use the 10mm combination wrench or 10mm socket to tighten the clamp nut.
• Tighten to about 5 Nm (4 ft-lbs) — firm, but do not crush the post.
• Close the red plastic cover over the positive terminal.

Step 11: Reconnect the negative (-) terminal

• 🧰 Place the negative cable clamp onto the - post.
• Use the 10mm combination wrench or 10mm socket to tighten the clamp.
• Again, aim for about 5 Nm (4 ft-lbs); check that the clamp does not twist on the post.

Step 12: Apply protectant and reinstall cover

• 🧰 Lightly spray the terminals and clamps with battery terminal protectant spray to help prevent future corrosion.
• Reinstall any plastic battery cover you removed earlier, using your small flathead screwdriver if needed to align tabs.
• Make sure nothing is loose around the battery.

---

✅ After Repair

• 🔑 Start your Corolla and confirm it cranks quickly and runs normally.
• 💡 Check headlights, interior lights, power windows, and infotainment screen to be sure everything powers up.
• ⏰ Reset the clock and radio presets if they were lost.
• 📗 If any warning lights stay on (battery/charging light especially), have the charging system tested with a scan tool or at a shop.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$320 (parts + labor)

DIY Cost: $130-$200 (battery and supplies)

You Save: $90-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-0.7 hours.

---
