🔧 Rogue - 12V Battery Replacement

You’ll be replacing the 12-volt battery under the hood of your Rogue. This restores reliable starting and keeps all electrical systems working correctly.

Difficulty Level: Beginner | Estimated Time: 30-45 minutes

---

⚠️ Safety & Precautions

• 🛑 Always turn the ignition fully OFF and remove the key fob from the vehicle before working.
• 🛑 Do not let metal tools touch both battery terminals at the same time, or a terminal and bare metal body, to avoid sparks.
• 🛑 Always disconnect the negative (−) terminal first and reconnect it last to reduce the risk of short circuits.
• 🛑 Wear eye protection and gloves; battery acid is corrosive.
• 🛑 Work in a well‑ventilated area and keep flames and smoking materials away from the battery.
• 🛑 Your Rogue does not require battery coding, but you may need to reset auto windows and radio presets afterward.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm combination wrench
• 🧰 10mm socket
• 🧰 3/8" drive ratchet
• 🧰 3/8" drive extension (3"-6")
• 🧰 Flathead screwdriver (medium)
• 🧰 Battery terminal cleaning brush
• 🧰 Small wire brush
• 🧰 Shop towels
• 🧰 Protective gloves
• 🧰 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 12V starting battery (Group size to match Rogue spec) - Qty: 1
• 🔩 Battery terminal anti-corrosion pads - Qty: 1 set
• 🔩 Battery terminal protectant spray - Qty: 1
• 🔩 Battery hold-down hardware kit - Qty: 1 (only if existing parts are rusty or damaged)

---

📋 Before You Begin

• 🧭 Park the Rogue on level ground, shift to P (Park), and set the parking brake.
• 🧭 Turn off all lights and accessories (headlights, fan, radio, phone chargers).
• 🧭 Open the hood using the hood release inside, then lift the hood and secure the hood prop rod.
• 🧭 Take a quick picture of the battery and cables so you remember where each cable goes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

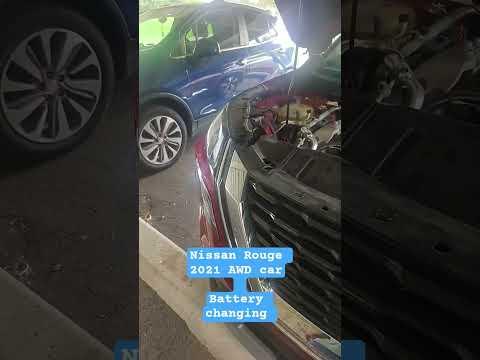

Step 1: Locate the battery and identify terminals

• 🪛 The battery is in the engine bay on the driver side, near the front.
• 🪛 Identify the positive (+) terminal (usually with a red cover and “+” sign) and the negative (−) terminal (usually black, “−” sign, often no cover).
• 🪛 Gently lift or unlatch the plastic cover from the positive terminal using the flathead screwdriver if needed.

Step 2: Disconnect the negative (−) cable

• 🪛 Use the 10mm combination wrench to loosen the nut on the negative (−) terminal clamp.
• 🪛 Once the nut is loose, twist the clamp slightly and pull it straight up off the battery post. Wiggle gently, don’t pry hard.
• 🪛 Move the negative cable end away from the battery and tuck it to the side so it cannot spring back and touch the terminal.

Step 3: Disconnect the positive (+) cable

• 🪛 Use the 10mm combination wrench to loosen the nut on the positive (+) terminal clamp.
• 🪛 Lift the clamp straight up off the positive post.
• 🪛 Move the positive cable slightly aside, but keep it clear of metal parts. Do not let it touch the negative cable.

Step 4: Remove the battery hold-down bracket

• 🪛 At the base or front of the battery, find the metal or plastic hold-down bracket that keeps the battery from moving.
• 🪛 Use the 10mm socket, 3/8" drive ratchet, and extension to remove the hold-down bolt(s).
• 🪛 Lift the hold-down bracket off the battery and set it aside.
• 🪛 Factory torque when reinstalling the hold-down bolt is: Torque to 20 Nm (177 in-lbs).

Step 5: Remove the old battery

• 🪛 Grip the battery firmly by the built-in handle (if present). If there is no handle, grab it from both sides.
• 🪛 Lift the battery straight up and out of the tray. It is heavy—lift with your legs, not your back.
• 🪛 Set the old battery on the ground in an upright position so it does not tip.

Step 6: Clean the battery tray and terminals

• 🪛 Use shop towels to wipe any dirt or moisture from the battery tray.
• 🪛 Inspect the tray and hold-down bracket for rust or damage; replace parts if badly corroded.
• 🪛 Use the battery terminal cleaning brush or small wire brush to clean the inside of both cable clamps until the metal is shiny.
• 🪛 If you are using anti-corrosion pads, have them ready to slip over the posts on the new battery.

Step 7: Install the new battery

• 🪛 Place the new battery in the tray with the terminals in the same position as the old one (positive and negative on the correct sides).
• 🪛 Make sure it sits flat and does not rock. Battery must sit fully in tray.
• 🪛 If using anti-corrosion pads, slide one onto each battery post now.

Step 8: Reinstall the hold-down bracket

• 🪛 Refit the hold-down bracket over or in front of the battery.
• 🪛 Install the hold-down bolt(s) by hand first so they are not cross-threaded.
• 🪛 Tighten with the 10mm socket, ratchet, and extension until snug.
• 🪛 Final tighten to: Torque to 20 Nm (177 in-lbs). Do not overtighten; just firm.

Step 9: Connect the positive (+) terminal

• 🪛 Place the positive (+) cable clamp straight down onto the positive post.
• 🪛 Press it down so it sits fully on the post; it should not rock.
• 🪛 Use the 10mm combination wrench to tighten the nut until the clamp no longer moves if you twist it by hand.
• 🪛 Terminal clamp torque spec: Torque to 5.4 Nm (48 in-lbs). This is “snug” but not crushing.
• 🪛 Close the red plastic cover over the positive terminal.

Step 10: Connect the negative (−) terminal

• 🪛 Place the negative (−) cable clamp straight down onto the negative post.
• 🪛 Use the 10mm combination wrench to tighten the nut until the clamp does not move when twisted by hand.
• 🪛 Terminal clamp torque spec again: Torque to 5.4 Nm (48 in-lbs).
• 🪛 If using terminal protectant spray, apply a light coat to both terminals now.

Step 11: Final under-hood checks

• 🪛 Make sure no tools are left in the engine bay.
• 🪛 Confirm both terminal clamps are fully seated and the battery is firmly held by the bracket.
• 🪛 Remove the hood prop rod and securely close the hood.

---

✅ After Repair

• 🧪 Sit in the driver seat, press the brake, and start the engine. Confirm it cranks normally and starts.
• 🧪 Check the instrument cluster for any warning lights. A few lights may flash briefly at first and then go out; that is normal.
• 🧪 Reset your clock and radio presets in the infotainment screen if they were lost.
• 🧪 If any auto-up/down window function does not work, recalibrate by:
  • Pull the window switch to fully close the window and hold it up for 3–5 seconds.
  • Then push it to fully open the window and hold it down for 3–5 seconds.
  • Repeat once if needed.
• 🧪 Take a short drive and make sure everything behaves normally (power steering, power windows, lights, and wipers all working).

---

💰 DIY vs Shop Cost

Shop Cost: $260-$380 (parts + labor)

DIY Cost: $130-$220 (parts only)

You Save: $130-$160 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
