🔧 Passport - 12V Battery Replacement

Replacing the 12V battery on your Passport is a straightforward under-hood job. The key is to disconnect the cables in the correct order (negative first) to prevent electrical damage or sparks.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition fully OFF and keep the key fob at least 10 feet away.
• ⚠️ Disconnect the negative (-) cable first, reconnect it last.
• ⚠️ Do not allow a tool to touch both the battery terminal and body metal.
• ⚠️ Your Passport’s negative terminal area may include a battery sensor; don’t pry or twist on the sensor housing.
• ⚠️ Wear safety glasses and gloves; batteries can vent corrosive acid.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 10mm wrench
• 12mm socket
• Ratchet (3/8")
• 6" extension (3/8")
• Torque wrench (in-lb or Nm capable)
• Battery terminal puller (specialty)
• Battery strap or carrier handle
• Battery terminal brush
• Baking soda
• Clean water
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (correct fitment for your Passport) - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 2
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and turn the ignition OFF.
• Open the hood and let the vehicle sit for 3 minutes so modules go to sleep.
• If you want to keep memory settings, you can use a memory saver (optional). Skip it if you’re unsure.
• Make sure you know any custom settings you want to restore (clock, radio presets, etc.).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

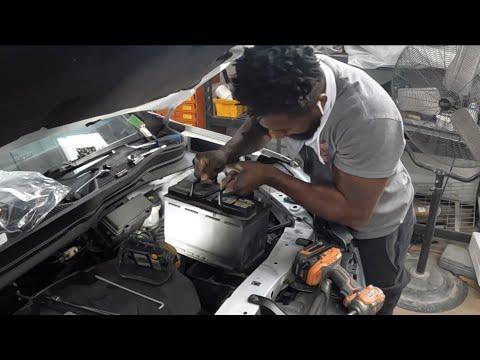

Step 1: Access the battery

• Open the hood and locate the 12V battery in the engine bay.
• If there’s a top cover/insulator, remove it by hand and set it aside.

Step 2: Disconnect the negative (-) cable

• Use a 10mm wrench to loosen the negative terminal clamp nut.
• Wiggle the clamp and lift it straight up off the negative post.
• Move the cable aside so it can’t spring back to the terminal.
• Negative off first prevents accidental shorting.
• When reinstalling later: Torque to 5 N·m (44 in-lb)

Step 3: Disconnect the positive (+) cable

• Flip open the positive terminal cover if equipped.
• Use a 10mm wrench to loosen the positive terminal clamp nut.
• Lift the clamp straight up and move it aside (keep it from touching metal).
• When reinstalling later: Torque to 5 N·m (44 in-lb)

Step 4: Remove the battery hold-down

• Use a 12mm socket, ratchet (3/8"), and 6" extension to remove the hold-down nuts/bolts.
• Lift off the hold-down bracket and J-hooks (if equipped) and set them aside.
• When reinstalling later: Torque to 9 N·m (80 in-lb)

Step 5: Remove the old battery

• Use a battery strap or carrier handle to lift the battery straight up and out.
• Set it on the ground upright (don’t tip it).

Step 6: Clean the tray and terminals (if needed)

• If you see white/green crust, mix a small amount of baking soda with clean water.
• Use shop towels to wipe the tray and the cable ends; keep the mixture off paint as much as possible.
• Use a battery terminal brush to clean the inside of each cable clamp until shiny.
• Dry everything with shop towels.

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down bracket using the 12mm socket, ratchet (3/8"), and 6" extension.
• Torque to 9 N·m (80 in-lb)

Step 8: Reconnect the cables (positive first)

• Install anti-corrosion washers (if using) on the posts.
• Push the positive (+) clamp fully down onto the post, then tighten with a 10mm wrench.
• Torque to 5 N·m (44 in-lb)
• Push the negative (-) clamp fully down onto the post, then tighten with a 10mm wrench.
• Torque to 5 N·m (44 in-lb)
• Spray battery terminal protectant on the terminals if using.

Step 9: Final reassembly

• Reinstall any battery cover/insulator by hand.
• Remove tools and close the hood.

---

✅ After Repair

• Start the engine and confirm it cranks normally.
• Check for a solid connection: headlights should not flicker at idle.
• Reset the clock and restore presets if needed.
• If the auto-up/down windows don’t work, initialize by fully lowering and fully raising each window using the switch.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $180-$320 (parts only)

You Save: $70-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
