🔧 Trailblazer - 12V Battery Replacement

On your Trailblazer, the 12V battery powers starting and all electronics. The job is mainly removing the battery hold-down, swapping the battery, and reconnecting the cables in the correct order.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the vehicle OFF, remove the key/fob, and keep it at least 10 feet away.
• ⚠️ Wear eye protection and gloves; battery acid is corrosive.
• ⚠️ Disconnect the negative (-) cable first and reconnect it last to reduce short-circuit risk.
• ⚠️ Do not allow tools to touch the battery positive terminal and any metal body part at the same time.
• ⚠️ If your Trailblazer has Auto Stop/Start, it may require an AGM battery and may need a battery “relearn” after installation.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 3/8" drive ratchet
• 6" extension (3/8")
• Torque wrench (3/8" drive, 5-50 Nm range)
• Battery terminal puller (specialty)
• Battery carrying strap (specialty)
• Battery terminal cleaning brush
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (correct type/capacity for your Trailblazer) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Battery terminal felt washers - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and locate the 12V battery.
• Quick question (so I give you exact battery type + post-install reset steps): Does your Trailblazer have Auto Stop/Start (engine shuts off at stops)?
• Also: If you can, upload a photo of the battery top label (it shows AGM vs non-AGM and the ratings).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Power down and access the battery

• Turn the vehicle off and wait 2 minutes for modules to go to sleep.
• Use a shop towel to wipe dirt from the battery top so nothing falls into the terminals.

Step 2: Disconnect the negative (-) battery cable

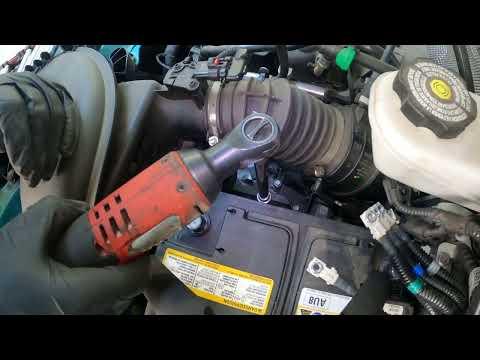

• Use a 10mm socket with a 3/8" drive ratchet to loosen the negative terminal clamp nut.
• Lift the negative cable off the post and tuck it aside so it cannot spring back.
• If it’s stuck, use a battery terminal puller (specialty). Don’t pry on the battery case.

Step 3: Disconnect the positive (+) battery cable

• Use a 10mm socket with a 3/8" drive ratchet to loosen the positive terminal clamp nut.
• Lift the positive cable off the post and move it aside.

Step 4: Remove the battery hold-down

• Locate the battery hold-down at the battery base.
• Use a 13mm socket with a 6" extension (3/8") and 3/8" drive ratchet to remove the hold-down bolt(s).
• Lift out the hold-down bracket and set it aside.

Step 5: Remove the old battery

• Use a battery carrying strap (specialty) to lift the battery straight up and out.
• Set the old battery upright in a safe spot.

Step 6: Clean the tray and terminals

• Use shop towels to clean the battery tray.
• Use a battery terminal cleaning brush to clean corrosion from the cable clamps.
• Install battery terminal felt washers if you’re using them.

Step 7: Install the new battery

• Lower the new battery into the tray using the battery carrying strap (specialty).
• Reinstall the hold-down bracket and start the bolt(s) by hand.
• Use a 13mm socket with a torque wrench (3/8" drive, 5-50 Nm range) to tighten the hold-down to the correct spec.
• Reply with whether you have Auto Stop/Start (and/or a photo of the label), and I’ll give you the exact OEM torque spec and the correct battery type for your Trailblazer.

Step 8: Reconnect the cables (positive first)

• Reconnect the positive (+) cable first and tighten using a 10mm socket and torque wrench (3/8" drive, 5-50 Nm range) to the correct spec.
• Reconnect the negative (-) cable last and tighten using a 10mm socket and torque wrench (3/8" drive, 5-50 Nm range) to the correct spec.
• Apply battery terminal anti-corrosion spray to help prevent future corrosion.
• Reply with your Auto Stop/Start answer and I’ll give you the exact torque specs for both terminals.

---

✅ After Repair

• Start the engine and confirm normal cranking and no warning messages.
• Reset your clock/radio presets if they were lost.
• If Auto Stop/Start is equipped, verify it returns to normal operation after a short drive.
• If you get a battery/charging warning light, stop and recheck terminal tightness and clamp seating.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $180-$350 (parts only)

You Save: $70-$150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
