🔧 Outback - 12V Battery Replacement

On your Outback, the 12V battery sits in the engine bay and is held down by a small bracket and two cables. The job is mainly disconnecting the battery safely (negative first), swapping it, then reconnecting (positive first) to avoid electrical damage.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the vehicle OFF and remove the key/fob from the vehicle area before starting.
• ⚠️ Never let a tool touch the positive terminal and body metal at the same time.
• ⚠️ Disconnect negative (-) first and reconnect negative (-) last.
• ⚠️ Batteries can vent gas and acid; wear eye protection and gloves.
• 🔋 If your Outback has a battery sensor on the negative cable, handle it gently and do not pry on it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 10mm socket
• 3/8" ratchet
• 6" extension
• Torque wrench (in-lb or Nm)
• Battery terminal brush
• Nitrile gloves
• Safety glasses
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (match OE type and size) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Battery terminal felt washers - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and keep it securely propped.
• Remember you may lose radio presets and the clock when the battery is disconnected.
• Take a quick photo of cable routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the battery and identify terminals

• Find the battery in the engine bay.
• Identify negative (-) (usually black cable) and positive (+) (usually under a red cover).

Step 2: Disconnect the negative (-) cable

• Use a 10mm wrench to loosen the negative terminal clamp nut.
• Twist and lift the clamp off the negative post, then move it aside so it cannot spring back.
• Negative off first prevents accidental shorting.

Step 3: Disconnect the positive (+) cable

• Flip open/remove the positive terminal cover (if equipped).
• Use a 10mm wrench to loosen the positive terminal clamp nut.
• Remove the clamp from the positive post and position it so it cannot touch metal.

Step 4: Remove the battery hold-down bracket

• Use a 10mm socket, ratchet, and 6" extension to remove the two hold-down nuts on the J-bolts.
• Lift off the hold-down bar and remove the J-bolts from their slots.
• Set the hardware aside in the order you removed it.
• Torque to 7.5 Nm (66 in-lbs) on reassembly.

Step 5: Remove the old battery

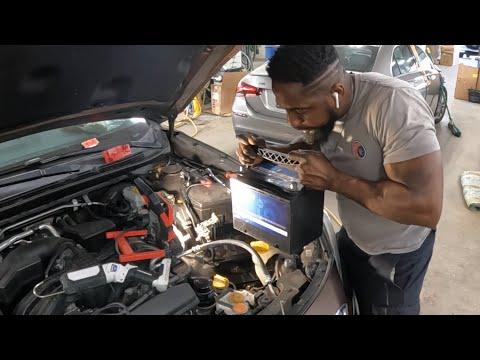

• Carefully lift the battery straight up and out.
• Keep it upright to avoid any acid spill.

Step 6: Clean the tray and terminals

• Use a battery terminal brush to clean the inside of both terminal clamps until shiny.
• If there is corrosion on the tray area, wipe it clean while wearing nitrile gloves and safety glasses.

Step 7: Install the new battery

• Set the new battery into the tray in the same orientation as the old one.
• Confirm the cables reach naturally without stretching or twisting.

Step 8: Reinstall and tighten the hold-down

• Reinstall the J-bolts, hold-down bar, and nuts using the 10mm socket, ratchet, and extension.
• Tighten evenly side-to-side so the battery stays centered.
• Torque to 7.5 Nm (66 in-lbs)

Step 9: Reconnect the positive (+) cable first

• Install felt washer (if using), then place the positive clamp onto the positive post.
• Use a 10mm wrench to tighten the clamp.
• Torque to 5.4 Nm (48 in-lbs)
• Reinstall/close the positive cover.

Step 10: Reconnect the negative (-) cable last

• Install felt washer (if using), then place the negative clamp onto the negative post.
• Use a 10mm wrench to tighten the clamp.
• Torque to 5.4 Nm (48 in-lbs)

Step 11: Protect terminals

• Apply battery terminal anti-corrosion spray to the terminal areas (follow product directions).

---

✅ After Repair

• Start your Outback and confirm it cranks normally and the charging light turns off.
• Set the clock and re-save radio presets if needed.
• If an auto-up/down window stops working: with the engine on, fully lower the window and hold the switch down 2 seconds, then fully raise it and hold 2 seconds.
• Check that the battery is secure and the cables can’t rotate by hand.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $140-$280 (parts only)

You Save: $80-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
