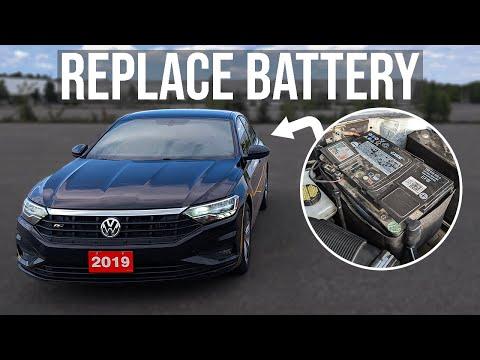

🔧 Jetta - 12V Battery Replacement

You’ll remove the old 12V battery from the engine bay and install a new one, then reconnect it in the correct order. On your Jetta, the car may also need a “battery adaptation” (registration) so the charging system knows a new battery is installed.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Wear gloves and safety glasses; battery acid is corrosive.
• ⚠️ Key must be out of the car; keep doors closed while disconnecting.
• ⚠️ Disconnect the negative terminal first, reconnect it last to prevent sparks.
• ⚠️ Do not let your wrench touch the body and the positive terminal at the same time.
• ⚠️ If your Jetta has Auto Start/Stop, battery adaptation with a scan tool is strongly recommended.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 10mm wrench
• 13mm socket
• 3/8" ratchet
• 3"-6" socket extension
• Torque wrench (5-30 Nm range)
• Trim tool set
• Battery carrying strap
• Battery terminal puller (specialty)
• OBD scan tool with VW battery adaptation (OBDeleven or VCDS) (specialty)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (H5/Group 47 size, correct type for your car: AGM for Start/Stop, EFB/flooded for non-Start/Stop) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Battery terminal felt washer set - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and locate the battery in the engine bay.
• If you have a memory saver, connect it before disconnecting the battery (it keeps radio/clock settings). A “memory saver” is a small device that supplies low power through the OBD port while the battery is removed.
• Make sure the ignition is OFF and the key/fob is away from the car.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the battery top cover

• Use a trim tool set to gently lift/pry the battery cover upward and set it aside.
• Go slow so tabs don’t snap.

Step 2: Disconnect the negative (–) terminal first

• Use a 10mm socket and 3/8" ratchet to loosen the negative terminal clamp nut.
• Twist and lift the clamp off the battery post; if it’s stuck, use a battery terminal puller (specialty) (it safely pulls the clamp without damage).
• Tuck the negative cable end aside so it cannot spring back onto the post.
• Torque to 6 Nm (53 in-lbs) when reinstalling.

Step 3: Disconnect the positive (+) terminal

• Use a 10mm socket and 3/8" ratchet to loosen the positive terminal clamp nut.
• Lift the clamp off and move it aside (do not let it touch metal parts).
• Torque to 6 Nm (53 in-lbs) when reinstalling.

Step 4: Remove the battery hold-down clamp

• At the bottom/front base of the battery, remove the hold-down bolt using a 13mm socket, 3/8" ratchet, and 3"-6" socket extension.
• Remove the clamp and set it aside.
• Torque to 20 Nm (15 ft-lbs) when reinstalling.

Step 5: Lift out the old battery

• Install a battery carrying strap and lift the battery straight up and out.
• Keep the battery upright while carrying it.

Step 6: Install the new battery

• Lower the new battery into the tray using the battery carrying strap, making sure it sits fully flat in the tray.
• Reinstall the hold-down clamp and bolt using the 13mm socket, ratchet, and extension.
• Torque to 20 Nm (15 ft-lbs).

Step 7: Reconnect terminals (positive first, negative last)

• Reconnect the positive (+) clamp using the 10mm socket and ratchet, then torque to 6 Nm (53 in-lbs).
• Reconnect the negative (–) clamp using the 10mm socket and ratchet, then torque to 6 Nm (53 in-lbs).
• Install battery terminal felt washer set if you’re using them, then apply battery terminal anti-corrosion spray.

Step 8: Battery adaptation (recommended on your Jetta)

• Plug in your OBD scan tool with VW battery adaptation (OBDeleven or VCDS) (specialty).
• Perform the Battery Adaptation function (this updates battery capacity/type and resets battery aging values).
• If your tool asks for battery details, enter the battery type (AGM vs EFB), capacity (Ah), and serial as printed on the battery label.
• This helps charging and Start/Stop behavior.

Step 9: Reinstall the battery cover

• Press the cover back on by hand until it seats.

---

✅ After Repair

• Start the engine and confirm there are no warning lights that remain on.
• Reset one-touch windows: with the engine running, fully raise each window and hold the switch “up” for 2-3 seconds.
• Turn the steering wheel full left, then full right, then center it (this can help clear steering angle messages after battery disconnect).
• Set your clock/date if they reset.
• If Auto Start/Stop is slow to return, drive normally for a few trips; it may need time to relearn.

---

💰 DIY vs Shop Cost

Shop Cost: ₹7,500-₹15,000 (parts + labor)

DIY Cost: ₹6,000-₹13,500 (parts only)

You Save: ₹1,500-₹3,500 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
