🔧 Tiguan - 12V Battery Replacement

Replacing the 12V battery restores reliable starting and keeps the Tiguan’s electronics stable. The battery sits in the engine bay and is held down with a clamp at the base.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ The battery is heavy; lift with your legs, not your back.
• ⚠️ Keep metal tools away from the positive terminal to prevent a short.
• ⚠️ Disconnect negative (-) first and reconnect negative (-) last.
• ⚠️ Keep the key/fob away from the Tiguan while working so modules can “go to sleep.”
• ⚠️ If your Tiguan has Start/Stop, it typically uses an AGM battery—installing the wrong type can cause charging issues.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 1/4" ratchet
• 3/8" ratchet
• 6" extension
• Trim clip tool
• Battery terminal puller (specialty)
• Torque wrench (5-30 Nm range)
• Nitrile gloves
• Safety glasses
• Fender cover
• Scan tool with VW battery adaptation (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (H6 / Group 48 size, correct rating for Tiguan) - Qty: 1
• 12V battery (AGM type, if equipped with Start/Stop) - Qty: 1
• Battery terminal anti-corrosion protectant - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and keep it open during the swap.
• Roll down the driver window (helps if locks act up briefly).
• Turn everything off and wait 5 minutes so the Tiguan’s computers go to sleep.
• If you have a scan tool for battery adaptation, have it ready for the “After Repair” section.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the battery cover (if equipped)

• Use a trim clip tool to gently pop up any cover clips, then lift the cover off.
• Take a quick photo of cable routing.

Step 2: Disconnect the negative (-) terminal

• Use a 10mm socket and 1/4" ratchet to loosen the negative clamp bolt.
• Wiggle the clamp off the battery post. If it’s stuck, use a battery terminal puller (specialty) (this tool presses the clamp off without prying).
• Tuck the negative cable end away so it cannot spring back onto the post.
• Torque to 6 Nm (53 in-lb) on reassembly.

Step 3: Disconnect the positive (+) terminal

• Use a 10mm socket and 1/4" ratchet to loosen the positive clamp bolt.
• Remove the clamp from the post and position the cable safely aside.
• Torque to 6 Nm (53 in-lb) on reassembly.

Step 4: Remove the battery hold-down

• Locate the hold-down clamp at the base of the battery.
• Use a 13mm socket, 3/8" ratchet, and 6" extension to remove the hold-down bolt and clamp.
• Torque to 20 Nm (15 ft-lb) on reassembly.

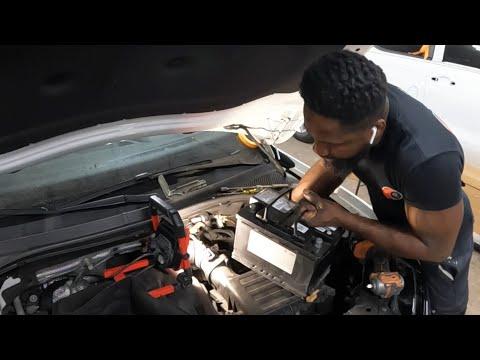

Step 5: Remove the battery

• Pull straight up and remove any battery vent tube if present (some batteries vent through a small hose).
• Lift the battery out carefully and set it on the ground (not on painted surfaces).

Step 6: Install the new battery

• Set the new battery into the tray in the same orientation as the old one.
• Reconnect the vent tube (if your Tiguan uses one).
• Reinstall the hold-down clamp and tighten using a 13mm socket and torque wrench: Torque to 20 Nm (15 ft-lb).

Step 7: Reconnect terminals (positive first)

• Install the positive (+) clamp first and tighten with a 10mm socket and torque wrench: Torque to 6 Nm (53 in-lb).
• Install the negative (-) clamp last and tighten with a 10mm socket and torque wrench: Torque to 6 Nm (53 in-lb).
• Apply battery terminal anti-corrosion protectant to both terminals.

Step 8: Reinstall the battery cover

• Reinstall the cover and press clips in by hand. Use a trim clip tool only if needed to align clips.

---

✅ After Repair

• Start the Tiguan and confirm normal cranking and no warning messages that remain after a short drive.
• Reset one-touch windows (if needed): fully raise the window and hold the switch up for 2-3 seconds, then fully lower and hold 2-3 seconds.
• Set the clock and radio presets if they reset.
• If equipped with battery energy management: use a scan tool with VW battery adaptation (specialty) to perform a battery adaptation/registration so charging strategy matches the new battery.
• Drive 10 minutes; some lights self-clear.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $160-$300 (parts only)

You Save: $90-$150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
