🔧 Land Cruiser - 12V Battery Replacement

This job replaces your Land Cruiser’s 12V starting battery under the hood. A weak battery can cause slow cranking, warning lights, or no-start issues, so replacing it restores reliable starting and electrical power.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep the key fob at least 15 feet away so the vehicle stays asleep.
• ⚠️ Wear eye protection and gloves; batteries can leak acid and vent gas.
• ⚠️ Never let a tool touch both battery terminals at once.
• ⚠️ Disconnect negative (-) first and reconnect negative (-) last to reduce short-circuit risk.
• ⚠️ If you use a “memory saver” (a small backup power device), follow its instructions exactly; if you’re unsure, skip it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3" socket extension
• Torque wrench (in-lb/ft-lb)
• Battery terminal brush
• Small flathead screwdriver
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V starting battery (match the BCI group size and terminal layout currently installed) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Battery terminal felt washer set - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine bay cool if it’s hot.
• If your battery has a vent tube attached, note where it connects so you can reinstall it the same way.
• Tip: Take a quick photo before you touch anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

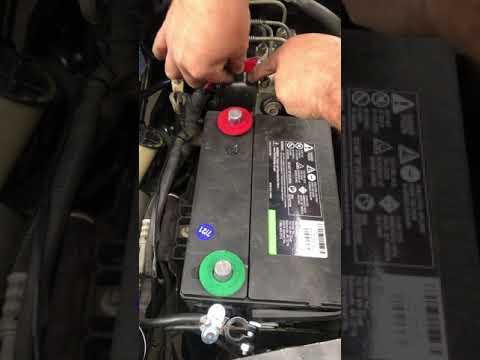

Step 1: Locate the battery and identify the terminals

• Open the hood and find the battery on your Land Cruiser.
• Look for the negative (-) terminal (usually black cable) and the positive (+) terminal (often has a red cover).
• If there’s a plastic cover over the positive terminal, pop it open using a small flathead screwdriver.

Step 2: Disconnect the negative (-) terminal first

• Use a 10mm socket with a ratchet to loosen the negative terminal clamp nut.
• Wiggle the clamp straight up off the battery post (the round metal “post” is what the clamp grips).
• Move the negative cable away so it cannot spring back and touch the battery post.
• Torque on reassembly: Torque to 48 in-lbs (5.4 Nm)

Step 3: Disconnect the positive (+) terminal

• Use a 10mm socket to loosen the positive terminal clamp nut.
• Lift the clamp off the positive battery post and keep it from touching metal parts.
• Torque on reassembly: Torque to 48 in-lbs (5.4 Nm)

Step 4: Remove the battery hold-down

• Use a 12mm socket, ratchet, and 3" extension to remove the battery hold-down bolts/nuts.
• Lift the hold-down bracket off and set it aside.
• Torque on reassembly: Torque to 14 ft-lbs (19 Nm)

Step 5: Remove the old battery

• Lift the battery straight up and out (it’s heavy, so keep your back straight and lift with your legs).
• Set it on the ground upright.

Step 6: Clean and prep the terminals

• Use a battery terminal brush to clean the inside of both cable clamps until the metal is bright.
• If you’re installing felt washers, slide them onto the posts after the new battery is in place.
• Lightly apply battery terminal anti-corrosion spray after everything is tightened.
• Tip: Clean metal helps prevent “mystery” starting issues.

Step 7: Install the new battery and secure it

• Place the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down bracket using the 12mm socket.
• Torque: Torque to 14 ft-lbs (19 Nm)

Step 8: Reconnect the terminals (positive first, negative last)

• Install the positive (+) clamp first and tighten using a 10mm socket.
• Torque: Torque to 48 in-lbs (5.4 Nm)
• Install the negative (-) clamp last and tighten using a 10mm socket.
• Torque: Torque to 48 in-lbs (5.4 Nm)
• Close the positive terminal cover if equipped.

Step 9: Final check

• Gently try to rotate each terminal clamp by hand; it should not move on the post.
• Make sure tools are removed from the engine bay.

---

✅ After Repair

• Start your Land Cruiser and verify normal cranking and no flickering lights.
• Reset the clock and radio presets if they were lost.
• If the auto-up/down windows don’t work, initialize each window: close it fully, then keep holding the switch up for ~2 seconds.
• Drive a short loop and confirm no warning lights stay on.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $160-$320 (parts only)

You Save: $60-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
