🔧 Camry - 12V Battery Replacement

You’ll be replacing the 12-volt battery under the hood of your Camry. This restores reliable starting and prevents electrical issues like dim lights or slow cranking.

Difficulty Level: Beginner | Estimated Time: 0.5–1 hour

---

⚠️ Safety & Precautions

• 🛑 Always work with the ignition OFF and the key fob away from the car.
• 🛑 Disconnect the negative (–) terminal first and reconnect it last to reduce short-circuit risk.
• 🛑 Do not let tools touch both battery terminals or metal body parts at the same time.
• 🛑 Wear safety glasses and gloves; battery acid can be harmful.
• 🛑 Lift the battery carefully; it is heavy and has sharp edges.
• 🛑 On this Camry, you do not need to disconnect the battery for a long time—try to finish within 20–30 minutes to reduce electronic memory loss.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 12mm socket
• 🧰 1/4" or 3/8" drive ratchet
• 🧰 3" ratchet extension
• 🧰 10mm combination wrench
• 🧰 Battery terminal brush
• 🧰 Small flathead screwdriver
• 🧰 Memory saver tool (OBD power supply) (specialty)
• 🧰 Work gloves
• 🧰 Safety glasses
• 🧰 Shop towel or rag

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 12V battery (Group size for 2020 Camry L, 2.5L) - Qty: 1
• 🔩 Battery anti-corrosion washers - Qty: 2
• 🔩 Dielectric grease or battery terminal protectant spray - Qty: 1
• 🔩 Battery hold-down hardware kit - Qty: 1 (only if existing parts are rusty or damaged)

---

📋 Before You Begin

• 📝 Park your Camry on level ground, shift to Park, and set the parking brake.
• 📝 Turn off headlights, interior lights, and all accessories.
• 📝 Open the hood using the interior hood release and then the hood latch under the front edge of the hood. Support the hood with the hood prop rod.
• 📝 If you have a memory saver tool (a device that keeps power to electronics while changing the battery), connect it to the OBD-II port under the dashboard before disconnecting the battery.
• 📝 Make sure the new battery matches the old one in size, terminal orientation, and rating.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

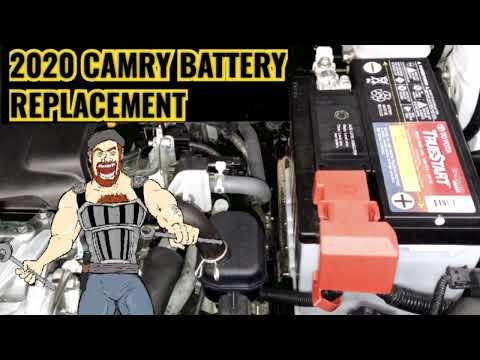

Step 1: Locate the battery and inspect the area

• 🔹 Open the hood and look on the driver side near the front; the battery is in a plastic tray with a top cover.
• 🔹 Use a small flathead screwdriver to gently unclip and remove any plastic battery cover on top.
• 🔹 Check how the battery is oriented (which side is positive and negative). Take a quick photo for reference.

Step 2: Identify positive and negative terminals

• 🔹 The positive (+) terminal usually has a red cover and a “+” mark.
• 🔹 The negative (–) terminal is usually black or bare metal and marked with “–”.
• 🔹 Fold back any plastic terminal covers using your small flathead screwdriver if needed.

Step 3: Disconnect the negative (–) terminal first

• 🔹 Use a 10mm socket on your ratchet (or a 10mm combination wrench) to loosen the clamp nut on the negative (–) terminal.
• 🔹 Once loose, gently twist and lift the clamp off the battery post. Do not pry hard.
• 🔹 Move the cable aside so it cannot spring back and touch the terminal. You can wrap the end with a shop towel or rag.
• Negative off first, on last—always remember this.

Step 4: Disconnect the positive (+) terminal

• 🔹 Use the 10mm socket or 10mm combination wrench again to loosen the clamp nut on the positive (+) terminal.
• 🔹 Lift the positive clamp off the post and move it aside, making sure it does not touch any metal parts.
• 🔹 Keep the red cover pulled back so you can access the clamp later when reinstalling.

Step 5: Remove the battery hold-down bracket

• 🔹 At the base or side of the battery, there is a metal or plastic hold-down bracket.
• 🔹 Use a 12mm socket with a ratchet and 3" ratchet extension to remove the hold-down bolt(s) securing the bracket.
• 🔹 Lift the hold-down bracket out and set it aside.
• 🔹 When reinstalling, you will torque the hold-down bolt to about 20 Nm (15 ft-lbs).

Step 6: Lift out the old battery

• 🔹 Grab the battery using built-in handles if present. If no handles, carefully hold it on both sides.
• 🔹 Lift straight up; it will be heavy, so go slowly and keep your back straight.
• 🔹 Place the old battery on the ground away from the car.

Step 7: Clean the battery tray and terminals

• 🔹 Check the battery tray for dirt or corrosion; wipe with a shop towel or rag.
• 🔹 Use a battery terminal brush to clean the inside of the cable clamps until the metal is shiny. A terminal brush is a small round wire brush made to fit battery clamps.
• 🔹 If you are using anti-corrosion washers, place them on the battery posts of the new battery now.

Step 8: Place the new battery in the tray

• 🔹 Carefully lower the new battery into the tray, matching the same orientation as the old one (positive and negative in the same positions).
• 🔹 Make sure it sits flat and fully in the tray.

Step 9: Reinstall the hold-down bracket

• 🔹 Position the battery hold-down bracket back over or against the new battery.
• 🔹 Install the hold-down bolt(s) by hand first to avoid cross-threading.
• 🔹 Use the 12mm socket, ratchet, and 3" ratchet extension to tighten the bolt(s).
• 🔹 Tighten until the battery is secure and cannot move, but do not crush the case: Torque to about 20 Nm (15 ft-lbs).

Step 10: Connect the positive (+) terminal first

• 🔹 Place the positive (+) cable clamp onto the positive post of the new battery.
• 🔹 Push it down so it sits fully on the post.
• 🔹 Use the 10mm socket or 10mm combination wrench to tighten the clamp nut.
• 🔹 Tighten until the clamp does not rotate by hand: Torque to about 5 Nm (44 in-lbs).
• 🔹 Close the red plastic cover over the positive terminal.
• Do not overtighten; you can crack the clamp.

Step 11: Connect the negative (–) terminal

• 🔹 Place the negative (–) cable clamp onto the negative post.
• 🔹 Push it down fully onto the post.
• 🔹 Use the 10mm socket or 10mm combination wrench to tighten the clamp nut.
• 🔹 Again, tighten just enough so the clamp cannot move by hand: Torque to about 5 Nm (44 in-lbs).

Step 12: Apply terminal protectant and reinstall covers

• 🔹 If you have dielectric grease or battery terminal protectant spray, apply a light coat around each terminal and clamp.
• 🔹 Reinstall any plastic battery top cover by snapping it back on. Use the small flathead screwdriver gently if needed to guide clips.
• 🔹 Make sure no tools or rags are left in the engine bay.

---

✅ After Repair

• 🔎 Start the engine and make sure it cranks strongly and starts normally.
• 🔎 Check headlights, interior lights, power windows, and radio.
• 🔎 You may need to reset the clock and radio presets manually.
• 🔎 On the Camry, the driver window auto up/down may need reset: hold the window switch to fully down, then hold for a few seconds; then fully up and hold again for a few seconds.
• 🔎 Check that there are no warning lights staying on in the instrument cluster. If any appear, turn the car off, recheck battery connections for tightness, and restart.

---

💰 DIY vs Shop Cost

Shop Cost: $220–$350 (parts + labor)

DIY Cost: $130–$220 (battery + small supplies)

You Save: $90–$130 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop about 0.3–0.5 hours.

---
