🔧 12V Battery - Replacement

Assumption: This is the 12V auxiliary battery, not the high-voltage hybrid battery. On your RAV4 Hybrid, the 12V battery is serviced in the rear cargo area.

The 12V battery powers the computers, locks, lights, and boot-up systems. If it is weak or dead, the vehicle may not go READY even though the hybrid system is fine. Replacing it is straightforward if you work carefully around the trim and terminal connections.

Difficulty Level: Beginner | Estimated Time: 1-1.5 hours

---

⚠️ Safety & Precautions

• Do not touch the orange high-voltage cables or hybrid battery components.
• Make sure the vehicle is fully OFF and the key fob is away from the car.
• Keep metal tools away from both battery terminals to avoid sparks.
• Use gloves and safety glasses.
• Battery is heavy. Lift with both hands.
• Disconnect the negative terminal first and reconnect it last.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Short extension
• Trim panel tool
• Gloves
• Safety glasses
• Battery carrying strap

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery - Qty: 1
• Battery terminal cover - Qty: 1
• Battery hold-down hardware - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the vehicle OFF completely.
• Open the rear hatch.
• Remove the key fob from the vehicle area.
• Save radio and seat settings first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

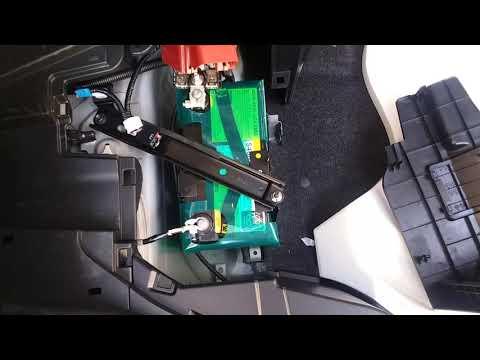

Step 1: Access the battery

• Use the trim panel tool to remove the rear cargo floor cover and right-side trim access pieces.
• Set the panels aside in order so they go back the same way.

Step 2: Disconnect the negative cable

• Use the 10mm socket, ratchet, and short extension to loosen the negative battery terminal.
• Lift the cable off the post and tuck it aside so it cannot spring back.
• Torque on reinstall: 5 Nm (44 in-lbs).

Step 3: Disconnect the positive cable

• Use the 10mm socket to loosen the positive terminal clamp and remove it from the battery.
• Keep the terminal from touching any metal parts.
• Torque on reinstall: 5 Nm (44 in-lbs).

Step 4: Remove the battery hold-down

• Use the 10mm socket to remove the battery hold-down bracket.
• Lift out the bracket and hardware.
• Torque on reinstall: 5 Nm (44 in-lbs).

Step 5: Remove the old battery

• Use the battery carrying strap to lift the battery straight up and out.
• Keep it level so acid does not spill.
• Battery is awkward. Lift slowly.

Step 6: Install the new battery

• Lower the new battery into place with the terminals in the same orientation as the old one.
• Install the hold-down bracket using the 10mm socket.
• Torque to 5 Nm (44 in-lbs).

Step 7: Reconnect the cables

• Install the positive cable first and tighten it with the 10mm socket.
• Torque to 5 Nm (44 in-lbs).
• Install the negative cable last and tighten it with the 10mm socket.
• Torque to 5 Nm (44 in-lbs).

Step 8: Reassemble the cargo area

• Reinstall the trim panels and cargo floor pieces.
• Make sure everything seats fully and nothing is pinched.

---

✅ After Repair

• Start the vehicle and confirm it goes to READY.
• Check that dash warning lights clear after a short drive.
• Reset the clock and any lost radio presets.
• If a window auto-up/down feature stops working, reinitialize it using the switch.
• Test the hatch and all power locks.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $120-$220 (parts only)

You Save: $130-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
