🔧 RAV4 - 12V Battery Replacement

You’ll remove the old 12V battery from the engine bay and install a new one in the same spot. This restores easy starting and protects the electrical system from low-voltage problems.

Difficulty Level: Beginner | Estimated Time: 0.5–1 hour

---

⚠️ Safety & Precautions

• ⚠️ Always turn the ignition fully OFF and remove the key from the ignition before working near the battery.
• ⚠️ Batteries are heavy and contain acid. Lift with both hands and keep it upright.
• ⚠️ Avoid touching both battery terminals at the same time with tools to prevent sparks.
• ⚠️ Do not smoke or use open flames near the battery.
• ⚠️ If acid contacts skin or eyes, rinse with water immediately and seek medical help.
• ⚠️ Disconnect the negative terminal first and reconnect it last to reduce risk of short circuits.
• ⚠️ You do not need to fully disconnect the vehicle’s main wiring, only the battery cables and hold-down.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm combination wrench
• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 1/4" or 3/8" drive ratchet
• 🛠️ 3" socket extension
• 🛠️ Small wire brush
• 🛠️ Battery terminal cleaning brush (specialty)
• 🛠️ Flathead screwdriver (small)
• 🛠️ Shop towels or clean rags
• 🛠️ Small plastic or nylon brush
• 🛠️ Baking soda and water mix container
• 🛠️ Gloves (chemical resistant)
• 🛠️ Safety glasses
• 🛠️ Memory saver device (OBD or 12V socket type) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 12V starting battery (Group Size 35, 550–650 CCA) - Qty: 1
• 🔩 Battery terminal anti-corrosion pads - Qty: 2
• 🔩 Dielectric grease or battery terminal protectant spray - Qty: 1
• 🔩 Battery hold-down hardware kit - Qty: 1 (only if your existing clamp or J-bolts are rusty or damaged)
• 🔩 Battery tray - Qty: 1 (only if current tray is cracked or badly corroded)
• 🔩 Baking soda - Qty: 1 small box (for neutralizing acid residue)

---

📋 Before You Begin

• Park your RAV4 on a flat, level surface, shift to Park, and set the parking brake.
• Turn OFF all electrical items: headlights, interior lights, radio, phone chargers.
• If you care about keeping radio presets and clock, plug in a memory saver device according to its instructions. This small tool keeps low power to the car while the battery is out.
• Open the hood using the interior hood release and then the hood latch at the front; secure the hood prop rod.
• You do not need to disconnect the battery to work on airbags or high-voltage systems for this job; you are only replacing the 12V battery.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the battery and inspect the area

• Open the hood and look at the front left corner (driver’s side) of the engine bay; the battery is in a black tray near the fender.
• Use a flashlight if needed to see the terminals and hold-down bracket clearly.
• Check for heavy white or green crust on the terminals. Heavy crust means extra cleaning time.

Step 2: Set up safety and, if used, the memory saver

• Put on gloves and safety glasses before working near the battery.
• If you are using a memory saver device (specialty), connect it now following its instructions (usually into the OBD port under the dash or the 12V socket).
• Make sure all tools are away from the battery top to avoid accidental contact between terminals.

Step 3: Identify positive and negative terminals

• Find the positive (+) terminal. It usually has a red cover and may be marked “+” or “POS.”
• Find the negative (–) terminal. It is usually black and marked “–” or “NEG,” and connects to the body of the car.
• Remember: you will loosen negative first, reconnect it last.

Step 4: Disconnect the negative (–) battery cable

• Use a 10mm combination wrench or 10mm socket with ratchet to loosen the nut on the negative terminal clamp.
• You only need to loosen the nut 1–2 turns, do not remove it completely.
• Gently twist the clamp back and forth and lift it off the battery post. If stuck, very gently pry under the clamp with a small flathead screwdriver, but do not damage the post.
• Once removed, push the cable end and clamp away from the battery so it cannot spring back and touch the terminal.

Step 5: Disconnect the positive (+) battery cable

• Flip open or remove the red plastic cover on the positive terminal using your fingers or a small flathead screwdriver.
• Use a 10mm combination wrench or 10mm socket with ratchet to loosen the nut on the positive terminal clamp.
• Gently twist and lift the clamp off the battery post, similar to the negative side.
• Move the positive cable end away from the battery so it cannot touch the post accidentally.

Step 6: Remove the battery hold-down clamp

• Locate the metal hold-down bracket at the base or top of the battery. On your RAV4 it is typically a bar across the front or top of the battery, secured by two bolts or a combination of a hook and bolt.
• Use a 10mm socket or 12mm socket with ratchet and 3" extension to remove the hold-down bolts.
• Keep these bolts and the bracket in a safe place; you will reuse them.

Step 7: Remove the old battery

• Stand directly in front of the battery, one hand on each side of the case.
• Lift the battery straight up using both hands. It is heavy, so lift with your legs, not just your back.
• Keep the battery level and carry it to a safe place on the ground. Do not tip it on its side.
• Most auto parts stores recycle old batteries for free.

Step 8: Clean the battery tray and cable ends

• Inspect the plastic tray for cracks or heavy corrosion. Light white powder is common; dark soft plastic damage means the tray should be replaced.
• Mix a small amount of baking soda with water in a container. This neutralizes any acid residue.
• Dip a plastic or nylon brush into the mixture and scrub the tray and nearby metal areas with corrosion. Wipe dry with shop towels.
• Use a battery terminal cleaning brush (specialty) or small wire brush to clean the inside of both cable clamps until the metal looks shiny.
• Wipe everything dry so no water remains in the tray or on the cable ends.

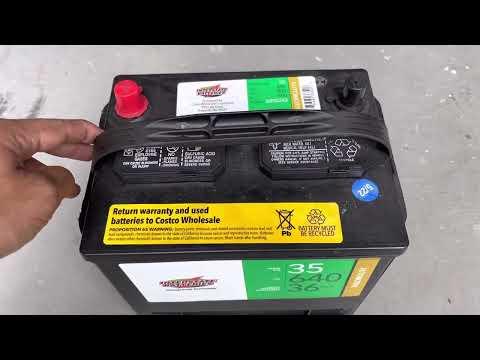

Step 9: Place the new battery in the tray

• Carefully place the new battery in the tray in the same orientation as the old one: positive (+) towards the correct side where the positive cable reaches comfortably.
• Make sure it sits flat and fully in the tray with no rocking.
• If using anti-corrosion pads, slide one over each battery post now.

Step 10: Reinstall the battery hold-down clamp

• Position the metal hold-down bracket over the battery as before.
• Install the hold-down bolts by hand to avoid cross-threading.
• Use a 10mm socket or 12mm socket with ratchet and 3" extension to tighten the bolts evenly until the battery cannot move, but do not crush the case.
• Typical spec for these bolts is around Torque to 5–7 Nm (44–62 in-lbs). Snug plus a small additional turn is usually enough.

Step 11: Connect the positive (+) cable

• Lightly coat the positive battery post with a thin film of dielectric grease if you have it. This helps prevent corrosion.
• Place the positive cable clamp fully down onto the positive post.
• Use a 10mm combination wrench or 10mm socket with ratchet to tighten the clamp nut until the clamp does not twist on the post.
• Typical clamp nut torque is about Torque to 5 Nm (44 in-lbs). Do not over-tighten; you can crack the clamp.
• Close the red plastic terminal cover fully over the positive terminal.

Step 12: Connect the negative (–) cable

• Lightly coat the negative post with dielectric grease if desired.
• Place the negative cable clamp fully down on the negative post.
• Use the 10mm combination wrench or 10mm socket with ratchet to tighten the clamp nut.
• Again, aim for about Torque to 5 Nm (44 in-lbs)—firm and secure, but not excessive.
• Confirm both clamps are snug by trying to rotate them by hand. They should not move.

Step 13: Remove memory saver and inspect

• If you used a memory saver device (specialty), disconnect it now according to its instructions.
• Look around the battery area: make sure no tools, rags, or loose parts are left in the engine bay.
• Confirm the battery cables are not rubbing sharply on metal edges and have gentle bends.

Step 14: Close the hood and start the engine

• Lower the hood prop rod and secure it. Close the hood firmly.
• Sit in the driver seat, insert the key, and turn it to start the engine.
• The engine should crank quickly and start smoothly.
• If the engine does not crank, recheck that both terminals are properly connected and tight.

---

✅ After Repair

• 🔁 Check and set the clock and radio presets if they were lost.
• 🔁 Some warning lights (like traction control) may briefly appear after reconnecting power; they should clear after a short drive as the systems relearn.
• 🔁 With the engine running, turn on headlights and check that lights, wipers, and blower fan work normally.
• 🔁 After your first short drive, re-open the hood (engine off) and re-check that the terminal clamps and hold-down bolts are still tight.
• 🔁 Recycle the old battery at an auto parts store; many give a small credit for the old core.

---
