🔧 Pathfinder - 12V Battery Replacement

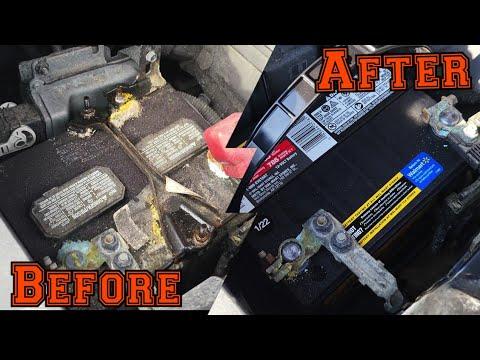

Replacing the 12V battery restores reliable starting and stable power for your A/C, lights, and electronics. On your Pathfinder, the battery sits in the engine bay and is held down with a bracket and two cable clamps.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key/fob from the vehicle.
• ⚠️ Keep sparks/flames away; batteries can produce explosive gas.
• ⚠️ Wear eye protection and gloves; battery acid is corrosive.
• ⚠️ Disconnect the negative (-) cable first and reconnect it last to reduce short-circuit risk.
• ⚠️ Do not let a tool bridge between the battery post and metal body parts.
• ⚠️ No battery disconnect is strictly required beyond cable removal, but disconnecting will reset some settings.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Torque wrench (ft-lb/Nm)
• Battery terminal puller (specialty)
• Battery post/terminal cleaning brush
• Protective gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (correct group size for Pathfinder) - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Open the hood and let the engine bay cool if it’s hot.
• If you want to preserve radio presets, use a 12V memory saver (a device that keeps power to the car while the battery is out). If you don’t have one, it’s okay—some settings may reset.
• Locate the battery negative (-) terminal (usually black) and positive (+) terminal (usually red with a cover).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Open the hood and locate the battery in the engine bay.
• If there is a protective cover on the positive (+) terminal, flip it open by hand.

Step 2: Disconnect the negative (-) cable first

• Use a 10mm socket with a 3/8" drive ratchet to loosen the negative terminal clamp nut.
• Twist the clamp gently and lift it off the battery post.
• A “post” is the round battery nub.
• If it’s stuck, use a battery terminal puller (specialty) (a small tool that presses the clamp off without prying).
• Tuck the negative cable end to the side so it can’t spring back and touch the post.

Step 3: Disconnect the positive (+) cable

• Use a 10mm socket with a 3/8" drive ratchet to loosen the positive terminal clamp nut.
• Lift the clamp off the post and move it aside so it can’t touch metal.

Step 4: Remove the battery hold-down bracket

• Use a 12mm socket, 6" extension (3/8" drive), and 3/8" drive ratchet to remove the hold-down fasteners.
• Lift off the hold-down bracket and set it aside.
• Take a quick photo before removal.

Step 5: Remove the old battery

• With protective gloves and safety glasses on, lift the battery straight up and out.
• Batteries are heavy; keep your back straight and lift with your legs.

Step 6: Clean the terminals and tray

• Use a battery post/terminal cleaning brush to clean corrosion from the cable clamps and battery posts.
• If the tray has debris, wipe it out by hand (avoid getting dirt into the clamps).

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one (posts in the same locations).
• Reinstall the hold-down bracket using the 12mm socket, 6" extension (3/8" drive), and 3/8" drive ratchet.
• Tighten with a torque wrench (ft-lb/Nm): Torque to 20 Nm (15 ft-lbs).

Step 8: Reconnect the positive (+) cable first

• Install a battery terminal anti-corrosion pad on the positive post (felt ring goes around the post base).
• Push the positive clamp fully down onto the post.
• Use a 10mm socket and 3/8" drive ratchet to tighten the clamp.
• Final tighten with a torque wrench (ft-lb/Nm): Torque to 6 Nm (53 in-lbs).
• Close the positive terminal cover if equipped.

Step 9: Reconnect the negative (-) cable last

• Install a battery terminal anti-corrosion pad on the negative post.
• Push the negative clamp fully down onto the post.
• Use a 10mm socket and 3/8" drive ratchet to tighten the clamp.
• Final tighten with a torque wrench (ft-lb/Nm): Torque to 6 Nm (53 in-lbs).

Step 10: Protect the terminals

• Lightly spray the terminals with battery terminal protectant spray.
• Do not soak; a light coat is enough.

---

✅ After Repair

• Start the engine and confirm normal cranking and no warning lights staying on.
• Check that headlights, horn, and power windows work normally.
• If the steering wheel feels heavy or a steering warning appears, turn the wheel lock-to-lock once while idling, then re-check.
• Reset the clock and radio presets if they were lost.
• If the window auto-up/down doesn’t work, cycle the window fully down then fully up using the driver switch.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $160-$280 (parts only)

You Save: $90-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
