🔧 Outlander - 12V Battery Replacement

You’ll remove the old 12V battery, clean and reconnect the terminals, and secure the new battery so it can’t move. A loose or weak battery can cause no-starts, warning lights, and random electrical issues.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: OEM-style top-post battery with J-bolt hold-down.

---

⚠️ Safety & Precautions

• ⚠️ Keep sparks/flames away; battery gas is flammable.
• ⚠️ Remove metal jewelry; a short can burn you fast.
• ⚠️ Always disconnect negative (-) first and reconnect negative (-) last.
• ⚠️ Don’t let a tool touch the body metal and the positive (+) terminal at the same time.
• ⚠️ If you use a memory saver, follow its instructions exactly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 10mm combination wrench
• Ratchet (3/8")
• 6" extension (3/8")
• Battery terminal puller (specialty)
• Wire battery terminal brush
• Torque wrench (in-lb)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (Group Size 35, 12V) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Battery felt anti-corrosion washers - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to P, set the parking brake, and turn the ignition fully off.
• Open the hood and keep the key fob away from the vehicle (prevents wake-ups).
• If you want to keep radio presets/clock, connect a memory saver (a small backup power tool) per its instructions.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

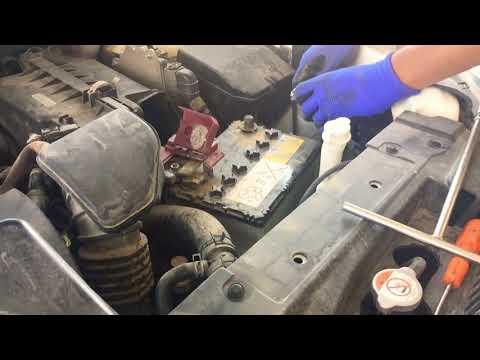

Step 1: Access the battery

• Open the hood and locate the battery in the engine bay.
• If there’s a plastic cover/insulator, remove it by hand (no tools) and set it aside.

Step 2: Disconnect the negative (-) terminal

• Use a 10mm socket and ratchet to loosen the negative clamp nut on the black (-) cable.
• Twist the clamp gently and lift it off the battery post.
• Move the cable aside so it cannot spring back to the post.
• If stuck, use a terminal puller. (A battery terminal puller is a small tool that safely lifts a stuck clamp off the post.)
• Torque on reassembly: 44 in-lbs (5 Nm)

Step 3: Disconnect the positive (+) terminal

• Flip open the red protective cap (if equipped).
• Use a 10mm socket and ratchet to loosen the positive clamp nut on the red (+) cable.
• Lift the clamp off the post and keep it from touching metal.
• Torque on reassembly: 44 in-lbs (5 Nm)

Step 4: Remove the battery hold-down

• Use a 10mm socket, ratchet, and 6" extension to remove the hold-down nuts (usually on a crossbar with J-bolts).
• Lift off the hold-down bracket and set it aside.
• Torque on reassembly: 71-89 in-lbs (8-10 Nm)

Step 5: Remove the old battery

• Wearing nitrile gloves and safety glasses, lift the battery straight up and out.
• Keep it upright (battery acid can leak if tipped).

Step 6: Clean the terminals and tray

• Use a wire battery terminal brush to clean the inside of each cable clamp until shiny metal shows.
• Brush the battery posts on the new battery if needed.
• Install battery felt anti-corrosion washers on the posts (one per post).

Step 7: Install the new battery and secure it

• Place the new battery into the tray in the same orientation as the old one (posts in the same positions).
• Reinstall the hold-down bracket using the 10mm socket, ratchet, and 6" extension.
• Snug it evenly so the battery can’t move by hand.
• Torque: 71-89 in-lbs (8-10 Nm)

Step 8: Reconnect the positive (+) terminal, then negative (-)

• Install the red (+) clamp first and tighten using a 10mm socket and ratchet.
• Torque: 44 in-lbs (5 Nm)
• Install the black (-) clamp last and tighten using a 10mm socket and ratchet.
• Torque: 44 in-lbs (5 Nm)
• Spray a light coat of battery terminal anti-corrosion spray on both terminals.

Step 9: Reinstall any covers

• Reinstall the battery cover/insulator by hand.
• Make sure no tools are left in the engine bay.

---

✅ After Repair

• Start your Outlander and confirm the engine cranks strongly.
• Check that the battery is secure: try to move it by hand (it should not shift).
• If you have a multimeter, check charging voltage at idle: about 13.8-14.5V.
• Reset the clock and radio presets if they were lost.
• If the auto-up window function stops working, cycle the window fully down and fully up once to re-initialize.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $140-$260 (parts only)

You Save: $80-$160 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
