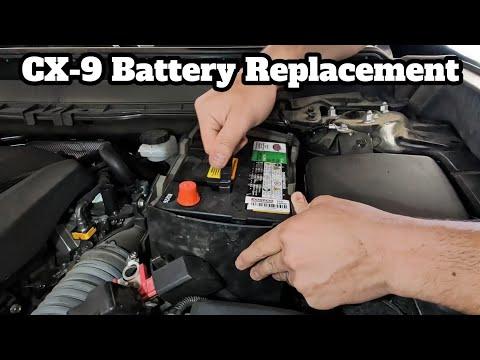

🔧 CX-9 - 12V Battery Replacement

Replacing the 12V battery restores reliable starting and stable electrical power for your CX-9’s computers, lights, and accessories. The job is simple: remove the old battery, clean/tighten the connections, and install the new one securely.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine OFF and key away from the vehicle (at least 10 feet) so systems don’t wake up.
• ⚠️ Wear gloves and eye protection—battery acid is corrosive.
• ⚠️ Remove the negative (-) cable first, install it last. This reduces short-circuit risk.
• ⚠️ Never let a tool touch both battery terminals (or terminal to body metal) at the same time.
• ⚠️ If your CX-9 has a battery vent tube attached, it must be reconnected to the new battery.
• Battery disconnect is not strictly “required,” but it’s the normal method for battery replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4" drive)
• Torque wrench (inch-pound)
• Battery terminal brush
• Plastic trim tool
• Shop rags
• Nitrile gloves
• Safety glasses
• Memory saver (OBD-II or 12V) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (correct fitment for CX-9) - Qty: 1
• Battery terminal anti-corrosion spray or grease - Qty: 1
• Battery terminal felt washers - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Turn everything off (headlights, HVAC, radio) and open the hood.
• If you use a memory saver (a small device that keeps settings powered while the battery is out), connect it now per its instructions.
• Locate the battery in the engine bay and identify the negative (-) and positive (+) terminals.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Open the hood and locate the battery.
• If there’s a plastic cover or air duct in the way, remove clips using a plastic trim tool and set it aside.

Step 2: Disconnect the negative (-) terminal

• Use a 10mm socket with a 1/4" ratchet to loosen the negative terminal clamp nut.
• Wiggle the clamp up and off the battery post, then tuck the cable aside so it can’t spring back.
• Tip: Twist the clamp—don’t pry hard.
• Torque to 5 N·m (44 in-lbs) when reinstalling.

Step 3: Disconnect the positive (+) terminal

• Flip open/remove the red protective cap over the positive terminal.
• Use a 10mm socket with a 1/4" ratchet to loosen the positive terminal clamp nut.
• Lift the clamp off and move it aside so it can’t touch metal.
• Torque to 5 N·m (44 in-lbs) when reinstalling.

Step 4: Remove the battery hold-down

• Most CX-9 setups use a top hold-down bracket/rod system.
• Use a 10mm socket, 1/4" ratchet, and 6" extension to remove the hold-down fasteners.
• Remove the hold-down and set it aside.
• Torque to 8 N·m (71 in-lbs) when reinstalling.

Step 5: Lift out the old battery

• Grab the battery firmly (use nitrile gloves) and lift it straight up and out.
• Batteries are heavy—keep your back straight and lift with your legs.
• If your battery has a small vent tube, disconnect it carefully and remember its routing.

Step 6: Clean the terminals and tray

• Use a battery terminal brush to clean the inside of both cable clamps until the metal looks bright.
• Wipe the battery tray with shop rags. Remove loose debris so the new battery sits flat.
• Install battery terminal felt washers if you’re using them.

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one (terminals positioned the same).
• Reconnect the vent tube if equipped.
• Reinstall the hold-down using the 10mm socket, ratchet, and extension.
• Torque to 8 N·m (71 in-lbs).

Step 8: Reconnect terminals (positive first)

• Install the positive (+) cable clamp first. Use the 10mm socket to tighten.
• Torque to 5 N·m (44 in-lbs), then close the red terminal cap.
• Install the negative (-) cable clamp last. Use the 10mm socket to tighten.
• Torque to 5 N·m (44 in-lbs).
• Apply battery terminal anti-corrosion spray or grease after everything is tight.

Step 9: Reinstall any covers/ducts

• Reinstall any battery covers or ducts using the plastic trim tool for clips as needed.
• Remove the memory saver (if used) per its instructions.

---

✅ After Repair

• Start the engine and confirm normal cranking and stable idle.
• Check that no battery cables can move by hand (they should be snug).
• Reset clock and radio presets if they were lost.
• Power window re-initialization (if auto-up/down stops working): with the engine on, fully lower the window, then fully raise it and hold the switch up for 2-3 seconds.
• If a warning light stays on, perform a short drive and recheck; low-voltage codes often clear after charging.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $150-$280 (parts only)

You Save: $70-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
