🔧 GX460 - 12V Battery Replacement

You’ll remove the old 12V battery from the engine bay and install a new one with clean, tight connections. A weak battery can cause slow cranking, warning lights, and random electrical glitches—replacing it restores reliable starting and charging.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Wear eye protection and gloves—battery acid is corrosive.
• ⚠️ Keep sparks/flames away; batteries can vent explosive gas.
• ⚠️ Always disconnect the negative terminal first and reconnect it last to reduce short-circuit risk.
• ⚠️ Do not let a tool bridge the positive terminal to body metal.
• ⚠️ If your battery has a vent tube, it must be reinstalled to vent safely.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 6" socket extension (3/8" drive)
• Torque wrench (10-30 Nm range)
• Battery terminal puller (specialty)
• Battery post/terminal cleaning brush
• Digital multimeter
• Memory saver (OBD-II) (specialty)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

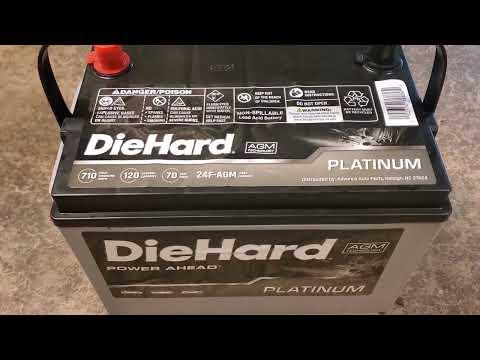

• 12V battery (AGM or flooded, correct fit for GX460) - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the ignition fully OFF.
• Open the hood and keep the key fob 10+ feet away from the vehicle.
• If you want to keep radio presets and reduce reset hassles, connect a Memory saver (OBD-II) (a device that supplies low power while the battery is disconnected).
• Assumption: battery fitment varies by option package; match the exact battery size/terminal layout from your current battery.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Open the hood and locate the battery on the right-front area of the engine bay.
• If there’s a plastic cover over the battery, remove it by hand (no tools) or release its clips carefully.

Step 2: Disconnect the negative (-) terminal first

• Use a 10mm socket with a ratchet to loosen the negative terminal clamp nut.
• Twist and lift the clamp off the battery post. If it’s stuck, use a Battery terminal puller (specialty) (a small tool that presses the clamp upward without damage).
• Move the negative cable aside so it cannot spring back onto the post.
• Torque (reinstall later): Torque to 5-6 Nm (44-53 in-lbs)

Step 3: Disconnect the positive (+) terminal

• Use a 10mm socket to loosen the positive terminal clamp nut.
• Lift the clamp off the post and set it aside without letting it touch metal body parts.
• Torque (reinstall later): Torque to 5-6 Nm (44-53 in-lbs)

Step 4: Remove the battery hold-down

• Locate the hold-down bracket/rod at the battery base/top.
• Use a 12mm socket, ratchet, and extension to remove the hold-down nuts/bolts.
• Lift off the hold-down and set all hardware aside in order.
• Torque (reinstall later): Torque to 18-22 Nm (13-16 ft-lbs)

Step 5: Remove the old battery

• Wearing gloves and safety glasses, lift the battery straight up and out. Batteries are heavy—use good posture.
• If your battery has a vent tube attached, pull it off gently and remember its routing.

Step 6: Clean the tray and terminals

• Use a Battery post/terminal cleaning brush to clean the inside of both cable clamps until the metal looks bright.
• Wipe the battery tray area clean and ensure nothing is under the new battery.
• Tip: Clean metal = better starting.

Step 7: Install the new battery

• Place the new battery in the tray in the same orientation as the old one (terminals in the same positions).
• If equipped, reconnect the vent tube to the new battery’s vent port.

Step 8: Reinstall and tighten the hold-down

• Reinstall the hold-down bracket/rods.
• Use a 12mm socket and ratchet to snug the hardware evenly.
• Finish with a torque wrench: Torque to 18-22 Nm (13-16 ft-lbs)

Step 9: Reconnect the terminals (positive first, negative last)

• Install anti-corrosion pads on the posts if you’re using them.
• Reconnect the positive (+) clamp first. Use a 10mm socket to tighten, then a torque wrench: Torque to 5-6 Nm (44-53 in-lbs)
• Reconnect the negative (-) clamp last. Use a 10mm socket to tighten, then a torque wrench: Torque to 5-6 Nm (44-53 in-lbs)
• Spray a light coat of battery terminal protectant spray on the connections.

Step 10: Quick charging-system check

• Use a digital multimeter at the battery posts.
• Engine OFF: you should typically see about 12.4-12.8V on a healthy, charged new battery.
• Engine ON: you should typically see about 13.5-14.7V showing the alternator is charging.

---

✅ After Repair

• Start the engine and confirm the crank is strong and steady.
• Reset the clock and radio presets if they were lost.
• If auto-up/down windows act weird, re-initialize: hold the window switch down fully for 2-3 seconds, then up fully for 2-3 seconds.
• Check for any warning lights. If one stays on, recheck terminal tightness and cleanliness first.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $160-$320 (parts only)

You Save: $90-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
