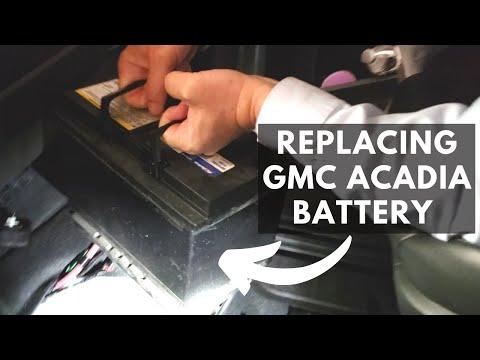

🔧 Acadia - Battery Replacement

Replacing the 12V battery restores reliable starting and prevents random electrical glitches. On your Acadia, the battery is in the engine bay and is held down with a clamp and two terminals.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF, remove key, and keep it away from the vehicle.
• ⚠️ Wear eye protection and gloves—battery acid is corrosive.
• ⚠️ Disconnect the negative (-) terminal first and reconnect it last to reduce short-circuit risk.
• ⚠️ Do not let a wrench touch the battery positive terminal and any metal at the same time.
• ⚠️ If your Acadia has an aftermarket alarm/amp, settings may reset when power is removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 13mm socket
• Ratchet (3/8")
• 6" extension (3/8")
• Torque wrench (10-50 Nm range)
• Battery terminal puller (specialty)
• Battery post/terminal cleaning brush
• Small wire brush
• Battery strap handle (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (OE size for Acadia) - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 1 set
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, shift to P, and set the parking brake.
• Open the hood and let the engine bay cool if it’s hot.
• Assumption: Battery is the under-hood unit (most Acadias). If yours is relocated by aftermarket work, follow the same disconnect/reconnect order.
• A “memory saver” (not required) is a small device that keeps vehicle settings during a battery swap; if you don’t use one, you may need to reset the clock and one-touch windows.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Open the hood and locate the battery at the front corner of the engine bay.
• If there’s a battery cover or air duct in the way, remove it by releasing clips or bolts with a 10mm socket.

Step 2: Disconnect the negative (-) terminal

• Use a 10mm socket to loosen the clamp on the negative (-) terminal (usually marked “-” or with a black cable).
• Lift the clamp straight up off the post. If it’s stuck, use a battery terminal puller (specialty) (this tool gently “pushes” the clamp off without prying).
• Tuck the negative cable safely to the side so it cannot spring back and touch the post.

Step 3: Disconnect the positive (+) terminal

• Flip open/remove the red protective cover (if equipped).
• Use a 10mm socket to loosen the positive (+) terminal clamp.
• Remove the clamp from the post and position it aside so it cannot touch metal.

Step 4: Remove the battery hold-down

• Locate the battery hold-down clamp at the base of the battery.
• Use a 13mm socket with a ratchet (3/8") and 6" extension (3/8") to remove the hold-down bolt(s).
• Lift out the clamp and set it aside.

Step 5: Remove the old battery

• Use a battery strap handle (specialty) to lift the battery straight up and out (batteries are heavy and slippery).
• Set the old battery on the ground upright.

Step 6: Clean the tray and terminals

• Inspect the tray for corrosion (white/green crust).
• Clean battery cable clamps using a battery post/terminal cleaning brush.
• Lightly clean any crusty areas nearby using a small wire brush.

Step 7: Install the new battery and secure it

• Place the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down clamp and bolt(s) using a 13mm socket.
• Tighten with a torque wrench: Torque to 20 Nm (15 ft-lbs).
• Tip: Battery must not move by hand.

Step 8: Reconnect the terminals (positive first)

• Install the positive (+) terminal clamp first and tighten using a 10mm socket.
• Tighten with a torque wrench: Torque to 15 Nm (11 ft-lbs).
• Install the negative (-) terminal last and tighten using a 10mm socket.
• Tighten with a torque wrench: Torque to 15 Nm (11 ft-lbs).
• Apply battery terminal protectant spray after everything is tight.

Step 9: Reinstall any covers and final check

• Reinstall any battery cover/ducting removed earlier using a 10mm socket.
• Grab each terminal by hand and confirm it does not twist on the post.

---

✅ After Repair

• Start the engine and verify normal cranking.
• Check for warning lights; some may clear after a short drive.
• Reset the clock and radio presets if needed.
• If the power windows lost one-touch, relearn by fully lowering and fully raising each window (hold the switch a few seconds at each end).
• Take the old battery to a parts store for core return/recycling.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $160-$280 (parts only)

You Save: $90-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
