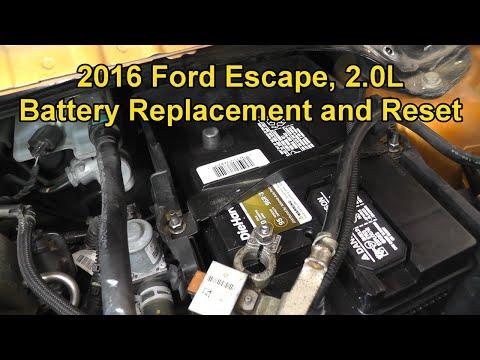

🔧 Escape - Battery Replacement

You’ll remove the old 12V battery and install a new one with the correct size and polarity. Doing this restores reliable starting and prevents random electrical issues caused by a weak battery.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF, remove the key, and keep it away from the vehicle.
• ⚠️ Wear gloves and safety glasses; battery acid is corrosive.
• ⚠️ Do not let tools touch both battery terminals at once (can short and spark).
• ⚠️ Disconnect the negative (-) terminal first and reconnect it last.
• ⚠️ Keep the battery upright; tipping can leak acid.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 6" extension for 1/4" drive
• Torque wrench (5-25 Nm range)
• Battery terminal puller (specialty)
• Battery terminal cleaning brush
• Trim clip tool
• Work light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (Group 96R / H6, top-post) - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and support it securely.
• If you have a radio code or custom settings, expect they may reset after battery replacement.
• Terminals are the metal clamps on the battery posts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Use a trim clip tool if you need to pop up any small retainers for the battery cover/insulator (if equipped).
• Use a work light so you can clearly see the hold-down and both terminals.

Step 2: Disconnect the negative (-) terminal

• Locate the negative (-) cable (usually black and marked “-”).
• Use an 8mm socket with a 1/4" drive ratchet to loosen the terminal pinch nut.
• Twist the clamp gently and lift it off the battery post.
• If it’s stuck, use a battery terminal puller (specialty) (this tool presses the clamp off without damage).
• Torque on install: Torque to 7 Nm (62 in-lbs)

Step 3: Disconnect the positive (+) terminal

• Locate the positive (+) cable (usually red and marked “+”).
• Use an 8mm socket with a 1/4" drive ratchet to loosen the terminal pinch nut.
• Lift the clamp off the post and move it aside so it cannot spring back onto the battery.
• Torque on install: Torque to 7 Nm (62 in-lbs)

Step 4: Remove the battery hold-down

• Find the battery hold-down clamp at the base of the battery.
• Use a 10mm socket, 6" extension, and 1/4" drive ratchet to remove the hold-down bolt.
• Remove the clamp and set it aside.
• Torque on install: Torque to 10 Nm (89 in-lbs)

Step 5: Lift out the old battery

• Wearing nitrile gloves and safety glasses, lift the battery straight up and out.
• Batteries are heavy; lift with legs.

Step 6: Clean the terminals and prep for the new battery

• Use a battery terminal cleaning brush to clean the inside of both cable clamps.
• Install battery terminal anti-corrosion pads on the new battery posts (one per post).
• Apply a thin film of dielectric grease to the outside of the posts after the clamps are installed (helps slow corrosion).

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one (positive and negative on the correct sides).
• Reinstall the hold-down clamp and bolt using a 10mm socket, extension, and ratchet.
• Use a torque wrench to finish: Torque to 10 Nm (89 in-lbs)

Step 8: Reconnect the terminals (positive first, negative last)

• Install the positive (+) clamp first and tighten with an 8mm socket.
• Use a torque wrench: Torque to 7 Nm (62 in-lbs)
• Install the negative (-) clamp last and tighten with an 8mm socket.
• Use a torque wrench: Torque to 7 Nm (62 in-lbs)
• Snug is good; overtightening can crack clamps.

Step 9: Battery Monitoring System (BMS) reset (recommended)

• Option A (scan tool): Use a scan tool with Ford service functions (specialty) to run the BMS reset for the Escape.
• Option B (manual reset used on many Ford vehicles): With ignition ON (engine OFF), flash the high beams 5 times, then press the brake pedal 3 times within 10 seconds; then turn ignition OFF and wait 1 minute.
• BMS learns the new battery for proper charging.

---

✅ After Repair

• Start the engine and confirm it cranks strongly.
• Check that no warning lights stay on after a short drive.
• Verify the battery is secure (it should not move when pushed by hand).
• Reset the clock and re-save radio presets if needed.
• If you see “Charging System” messages or repeated low-battery symptoms, have the alternator and battery tested.

---
