🔧 Tucson - 12V Battery Replacement

You’ll remove the old 12V battery from the engine bay and install a new one with the correct size and rating. This is mostly a careful “remove and reinstall” job, but doing the steps in the right order prevents sparks and protects electronics.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: your Tucson uses a top-post 12V battery in the engine bay; match the new battery to the size and ratings printed on your current battery label.

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF, remove the key/fob from the vehicle, and keep it away from the Tucson while you work.
• ⚠️ Wear eye protection and gloves; battery acid is corrosive.
• ⚠️ Always disconnect the negative (-) cable first and reconnect it last to reduce spark risk.
• ⚠️ Do not let a tool bridge between the battery positive (+) and any metal body parts.
• ⚠️ No smoking/open flames; batteries can vent explosive gas.
• ⚠️ Battery disconnect is recommended for this job; you may lose clock/radio settings.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8" ratchet
• 6" extension (3/8")
• Torque wrench (3/8" drive, 5-30 Nm range)
• Battery terminal puller (specialty)
• Battery post/terminal cleaning brush
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (match OEM size and CCA rating) - Qty: 1
• Battery terminal anti-corrosion pads (optional) - Qty: 2
• Battery terminal protectant spray (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine bay cool if it’s hot.
• Open a window or keep a door unlocked (some cars can auto-lock when power is removed).
• If you use a memory saver, it’s a device that plugs into the OBD-II port to keep settings during battery swap; follow the memory saver’s instructions carefully.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the battery and identify terminals

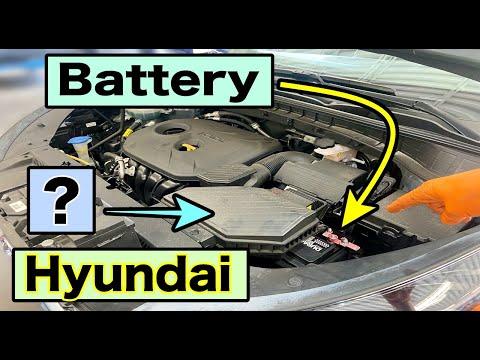

• Find the 12V battery in the engine bay.
• Identify negative (-) (usually black cable) and positive (+) (often under a red cover).
• Take a quick photo before removal.

Step 2: Disconnect the negative (-) battery terminal

• Use a 10mm socket with a 3/8" ratchet to loosen the negative terminal clamp nut.
• Twist and lift the clamp off the battery post.
• If it’s stuck, use a battery terminal puller (specialty) (a small tool that pushes the clamp off without prying).
• Tuck the negative cable to the side so it cannot spring back and touch the post.

Step 3: Disconnect the positive (+) battery terminal

• Flip open/remove the positive terminal cover (if equipped).
• Use a 10mm socket with a 3/8" ratchet to loosen the positive terminal clamp nut.
• Lift the clamp off and move it aside so it cannot touch the battery.

Step 4: Remove the battery hold-down bracket

• Locate the hold-down at the base of the battery.
• Use a 12mm socket, 3/8" ratchet, and 6" extension (3/8") to remove the hold-down bolt(s).
• Remove the bracket and set it aside with the bolt(s).

Step 5: Lift out the old battery

• Grip the battery firmly and lift straight up and out.
• Set it on the ground upright.
• Batteries are heavy—lift with your legs.

Step 6: Clean the tray and terminals

• Use shop rags to wipe dirt/corrosion from the battery tray.
• Use a battery post/terminal cleaning brush to clean the inside of the cable clamps until shiny metal shows.
• If using anti-corrosion pads, place them on the battery posts before reinstalling the cables.

Step 7: Install the new battery and secure it

• Place the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down bracket using the 12mm socket, 3/8" ratchet, and 6" extension (3/8").
• Use a torque wrench: Torque to 20-25 Nm (15-18 ft-lbs).

Step 8: Reconnect the positive (+) terminal first

• Install the positive clamp fully down onto the positive post.
• Use a 10mm socket and 3/8" ratchet to snug the clamp.
• Use a torque wrench: Torque to 5-7 Nm (4-5 ft-lbs).
• Reinstall/close the positive terminal cover.

Step 9: Reconnect the negative (-) terminal last

• Install the negative clamp fully down onto the negative post.
• Use a 10mm socket and 3/8" ratchet to snug the clamp.
• Use a torque wrench: Torque to 5-7 Nm (4-5 ft-lbs).
• If using protectant, apply battery terminal protectant spray lightly after everything is tight.

Step 10: Final check

• Try to rotate each clamp by hand; it should not move.
• Make sure the battery cannot shift in the tray.
• Remove all tools from the engine bay.

---

✅ After Repair

• Start the Tucson and confirm normal cranking and idle.
• Set the clock and re-save any radio presets if they reset.
• If the power windows lost auto-up/down: run each window fully down, then fully up, using the switch (this re-learns the limit on many vehicles).
• Check for warning lights; if any remain on after a short drive, scan for codes (many parts stores can scan for free).

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $140-$300 (parts only)

You Save: $80-$150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
