🔧 HR-V - 12V Battery Replacement

On your HR-V, the 12V battery lives in the engine bay and powers the starter and all electronics. Replacing it is mostly about doing the disconnect/reconnect in the correct order to prevent short circuits and avoid setting unnecessary warning lights.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine OFF, key away from the vehicle, and let hot parts cool.
• ⚠️ Always remove the negative (–) cable first and install it last to reduce short-circuit risk.
• ⚠️ Do not let a tool touch the positive (+) terminal and metal body parts at the same time.
• ⚠️ Battery acid is corrosive—wear gloves and safety glasses.
• ⚠️ Battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension (1/4" drive)
• 10mm combination wrench
• Battery terminal brush
• Digital multimeter
• Memory saver (OBD-II) (specialty)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (Group Size 51R) - Qty: 1
• Battery terminal anti-corrosion felt pads - Qty: 2
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and make sure the key fob is at least 10 feet away.
• If you want to keep radio presets and settings, connect a Memory saver (OBD-II) (specialty) before disconnecting the battery. (A memory saver is a small device that supplies backup power through the diagnostic port.)
• Plan for resets after reconnect: clock, and the driver’s window auto-up/auto-down may need re-initialization.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

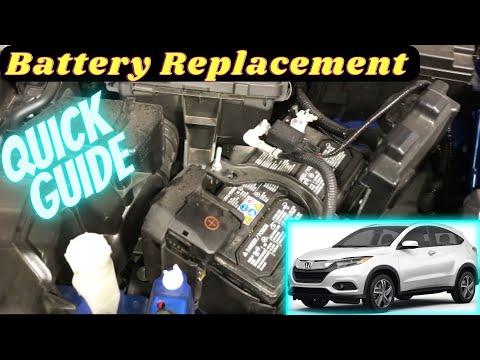

Step 1: Access the battery

• Open the hood and locate the battery in the engine bay.
• If a plastic cover or intake duct blocks access on your HR-V, remove the fasteners using a 10mm socket and 1/4" ratchet.

Step 2: Disconnect the negative (–) terminal first

• Use a 10mm wrench to loosen the negative (–) terminal clamp nut.
• Twist the clamp gently and lift it off the battery post.
• Tuck the negative cable end to the side so it cannot spring back onto the post. Negative off first prevents accidental short.
• When reinstalling later: Torque to 5 N·m (3.7 ft-lbs).

Step 3: Disconnect the positive (+) terminal

• Use a 10mm wrench to loosen the positive (+) terminal clamp nut.
• Lift the clamp off the post and move it aside without letting it touch metal body parts.
• When reinstalling later: Torque to 5 N·m (3.7 ft-lbs).

Step 4: Remove the battery hold-down

• Remove the hold-down hardware using a 10mm socket, 1/4" ratchet, and 3" extension.
• Lift off the hold-down bracket and set it aside.
• When reinstalling later: Torque to 10 N·m (7.4 ft-lbs).

Step 5: Remove the old battery

• Wearing nitrile gloves and safety glasses, lift the battery straight up and out.
• Keep the battery upright to avoid any acid spill.

Step 6: Clean the terminals and prepare for the new battery

• Use a battery terminal brush to clean corrosion from the inside of both cable clamps.
• Install battery terminal anti-corrosion felt pads onto the new battery posts (one per post).
• Lightly apply battery terminal protectant spray after everything is tightened (not before).

Step 7: Install the new battery and secure it

• Place the new Group Size 51R battery into the tray with the posts oriented the same as the old one.
• Reinstall the hold-down bracket using the 10mm socket, 1/4" ratchet, and 3" extension.
• Torque to 10 N·m (7.4 ft-lbs).

Step 8: Reconnect terminals (positive first, negative last)

• Install the positive (+) cable clamp first and tighten using a 10mm wrench.
• Torque to 5 N·m (3.7 ft-lbs).
• Install the negative (–) cable clamp last and tighten using a 10mm wrench.
• Torque to 5 N·m (3.7 ft-lbs).
• Spray a light coat of battery terminal protectant spray on the connections. Light coat is enough.

Step 9: Verify battery voltage

• Use a digital multimeter across the battery posts.
• With engine OFF, a healthy fully-charged battery is typically around 12.6V.

---

✅ After Repair

• Start the engine and confirm no slow cranking and no flickering lights.
• Reset the clock on the center display if needed.
• Power window reset (if auto-up/down stops working): with the engine ON, fully lower the driver window, then fully raise it and keep holding the switch up for 2 seconds.
• Idle re-learn (helps smooth idle after a battery disconnect): start the engine, turn all accessories OFF, and let it idle until the radiator fan cycles on and off twice.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $140-$260 (parts only)

You Save: $80-$160 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
