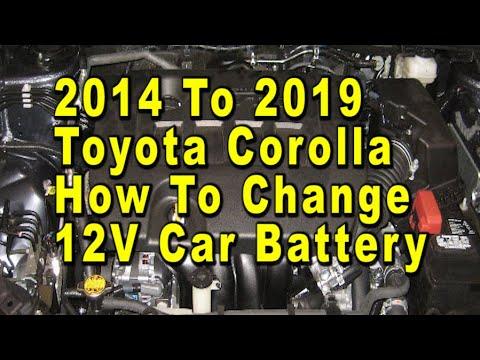

🔧 Corolla - 12V Battery Replacement

You’ll remove the old 12V battery from the engine bay and install a new one with the same size and terminal layout. A weak battery can cause slow cranking, warning lights, or no-start issues.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep metal tools off both battery terminals at the same time (it can short and spark).
• ⚠️ Disconnect negative (-) first and reconnect negative (-) last.
• ⚠️ Wear eye protection and gloves; battery acid is corrosive.
• ⚠️ Do not smoke or create sparks near the battery.
• 🔋 Battery disconnect is recommended for this job; you may lose radio presets and the clock.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" drive ratchet
• 6" socket extension
• 10mm combination wrench
• Battery terminal puller (specialty)
• Battery terminal cleaning brush
• Shop rags
• Nitrile gloves
• Safety glasses
• Torque wrench (inch-pound)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (BCI Group 35) - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Turn the ignition fully OFF and remove the key/fob from the car.
• Open the hood and let the engine bay cool if it’s hot.
• Take a quick photo of terminal locations.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the battery and remove covers

• Find the battery on the driver side of the engine bay.
• If equipped with a plastic cover, remove it by hand and set it aside.

Step 2: Disconnect the negative (-) terminal

• Use a 10mm socket with a 3/8" drive ratchet to loosen the nut on the negative (-) terminal clamp.
• Wiggle the clamp upward to remove it from the battery post. If it’s stuck, use a battery terminal puller (specialty) (this tool gently lifts the clamp without damaging it).
• Tuck the negative cable end to the side so it cannot spring back onto the terminal.
• Torque to 5.4 Nm (48 in-lbs) during reassembly.

Step 3: Disconnect the positive (+) terminal

• Flip open the red protective cap on the positive (+) terminal.
• Use a 10mm socket and ratchet to loosen the positive terminal clamp nut.
• Lift the clamp off the battery post and move it aside (do not let it touch metal parts).
• Torque to 5.4 Nm (48 in-lbs) during reassembly.

Step 4: Remove the battery hold-down bracket

• Locate the hold-down bracket across the battery (it’s held by two nuts on J-bolts).
• Use a 10mm socket, ratchet, and 6" extension to remove the two hold-down nuts.
• Lift off the bracket and carefully unhook the J-bolts.
• Torque to 5.4 Nm (48 in-lbs) during reassembly.

Step 5: Remove the old battery

• Grab the battery firmly and lift it straight up and out. Batteries are heavy, so lift with your legs.
• Set it on the ground upright (never tip it over).

Step 6: Clean the terminals and tray

• Use a shop rag to wipe the battery tray clean.
• Use a battery terminal cleaning brush to clean the inside of both cable clamps until the metal looks bright.
• Install battery terminal anti-corrosion pads (one on each battery post) if you’re using them.

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one (positive and negative on the correct sides).
• Reinstall the hold-down bracket and start both nuts by hand.
• Use a 10mm socket and ratchet to snug the nuts evenly, then finish with a torque wrench (inch-pound).
• Torque to 5.4 Nm (48 in-lbs).

Step 8: Reconnect terminals (positive first, negative last)

• Reconnect the positive (+) cable first. Use a 10mm socket to tighten the clamp.
• Torque to 5.4 Nm (48 in-lbs), then close the red cap.
• Reconnect the negative (-) cable last. Use a 10mm socket to tighten the clamp.
• Torque to 5.4 Nm (48 in-lbs).
• Spray a light coat of battery terminal protectant spray on the connections.

Step 9: Final check

• Try to rotate each cable clamp by hand—there should be no movement.
• Reinstall any battery cover you removed.
• If the clamp spins, it’s too loose.

---

✅ After Repair

• Start the engine and confirm the dash lights look normal.
• Set the clock and re-save radio presets as needed.
• If the driver window auto-up/down doesn’t work, initialize it: use the window switch to fully lower the window, then fully raise it and keep holding the switch up for 2 seconds.
• Check that the battery is secure and doesn’t move when you push it lightly.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $120-$250 (parts only)

You Save: $60-$100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
