🔧 Focus - Battery Replacement

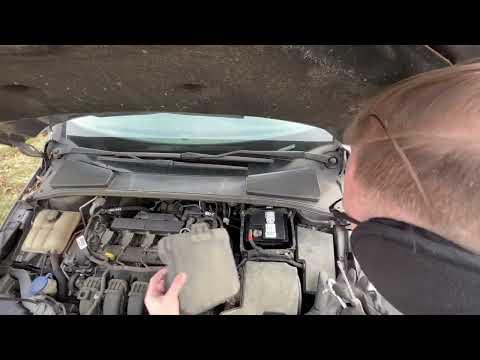

Replacing the 12V battery restores reliable starting and prevents weird electrical issues (dim lights, slow crank, warning messages). On your Focus, the battery is in the engine bay and is held down with a simple clamp.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF, remove the key, and keep it away from the car.
• ⚠️ Disconnect the negative (−) terminal first to prevent accidental short circuits.
• ⚠️ Batteries are heavy and contain acid—wear gloves and safety glasses.
• ⚠️ Do not let a tool touch both the battery terminal and metal body parts at the same time.
• ⚠️ No battery disconnect is strictly required beyond removing the terminals, but avoid closing the hood on tools/cables.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 3/8" drive ratchet
• 6" socket extension
• Torque wrench (in-lb and ft-lb capable)
• Battery terminal brush
• Trim tool
• Work light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (Group 96R) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Battery terminal felt washer set - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to neutral, set the parking brake, and pop the hood.
• If you want to avoid losing radio presets/clock, you can use a memory saver (optional). If not, it’s OK—your Focus will relearn.
• Identify the terminals: positive (+) usually has a red cover, negative (−) is typically black.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Use a work light to clearly see the battery, cables, and hold-down.
• If an intake snorkel or small cover blocks access, remove it carefully using a trim tool.

Step 2: Disconnect the negative (−) terminal

• Use a 10mm socket with a ratchet to loosen the negative terminal clamp bolt.
• Lift the negative cable off the battery post and tuck it aside so it cannot spring back.
• Negative off first prevents accidental sparks.

Step 3: Disconnect the positive (+) terminal

• Flip open the red protective cover (if equipped).
• Use a 10mm socket with a ratchet to loosen the positive terminal clamp bolt.
• Lift the positive cable off the battery post and position it safely away from the battery.

Step 4: Remove the battery hold-down

• Locate the hold-down bracket at the base of the battery.
• Use a 13mm socket, ratchet, and a 6" extension to remove the hold-down bolt.
• Remove the hold-down bracket and set it aside.

Step 5: Remove the old battery

• Wiggle the battery to free it, then lift it straight up and out using safe lifting posture.
• If there’s corrosion in the tray, clean it gently (keep debris out of the engine bay).

Step 6: Clean the terminals and prep the new battery

• Use a battery terminal brush (a stiff brush made for battery posts) to clean the inside of each cable clamp until shiny.
• Install the battery terminal felt washers onto the new battery posts (if using).

Step 7: Install the new battery and secure it

• Set the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down bracket and start the bolt by hand.
• Use a 13mm socket and torque wrench to tighten the hold-down bolt: Torque to 10 Nm (89 in-lb).

Step 8: Reconnect terminals (positive first)

• Install the positive (+) cable onto the positive post.
• Use a 10mm socket and torque wrench to tighten the clamp: Torque to 6 Nm (53 in-lb).
• Install the negative (−) cable onto the negative post.
• Use a 10mm socket and torque wrench to tighten the clamp: Torque to 6 Nm (53 in-lb).
• Spray a light coat of battery terminal anti-corrosion spray on the connections.

Step 9: Reset the Battery Monitoring System (BMS)

• Put the key in and turn ignition to ON (engine OFF).
• Within 10 seconds: flash the high beams 5 times.
• Then press and release the brake pedal 3 times.
• Watch the battery light on the dash—if it flashes, the reset completed.

---

✅ After Repair

• Start the engine and confirm it cranks normally.
• Check that headlights and interior lights look steady (no flicker).
• Set the clock and any radio presets if they reset.
• Recheck both terminals by hand—no twisting or looseness.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$380 (parts + labor)

DIY Cost: $150-$260 (parts only)

You Save: $70-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
