🔧 CX-5 - 12V Battery Replacement

You’ll remove the old 12V battery in the engine bay and install a new one, then reconnect the terminals in the correct order. This fixes no-start issues and prevents weak-crank problems caused by an aging battery.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🔋 Turn the ignition OFF, remove the key, and keep it away from the vehicle.
• 🧤 Wear gloves and safety glasses—battery acid is corrosive.
• ⚡ Disconnect the negative (-) terminal first and reconnect it last to reduce short-circuit risk.
• 🔥 Do not let a metal tool touch the battery positive and body metal at the same time.
• 💨 Do the job in a ventilated area—batteries can release flammable gas.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 10mm socket
• 1/4" ratchet
• 6" extension (1/4")
• Torque wrench (in-lb range)
• Battery terminal puller (specialty)
• Battery post/terminal cleaning brush
• Baking soda
• Clean water in spray bottle
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (correct fitment for your CX-5) - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Battery terminal protective spray - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground and set the parking brake.
• 🔑 Make sure all lights/accessories are OFF and the key is removed.
• 📻 Expect to reset the clock and radio presets after replacement.
• 🧽 If you see white/blue crust on terminals, plan to clean it (it’s corrosion).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Open the hood and locate the battery at the front of the engine bay.
• Use safety glasses and nitrile gloves before touching the terminals.

Step 2: Disconnect the negative (-) terminal

• Use a 10mm wrench to loosen the negative terminal clamp nut (the cable is usually black and/or marked “-”).
• Wiggle the clamp straight upward to remove it from the battery post.
• If it’s stuck, use a battery terminal puller (specialty) (this tool safely lifts a stuck clamp without prying).
• Tuck the negative cable aside so it can’t spring back.

Step 3: Disconnect the positive (+) terminal

• Use a 10mm wrench to loosen the positive terminal clamp nut (usually under a red cover and/or marked “+”).
• Remove the clamp from the battery post and keep it from touching any metal parts.

Step 4: Remove the battery hold-down

• Use a 10mm socket, 1/4" ratchet, and 6" extension (1/4") to remove the battery hold-down hardware.
• Lift off the hold-down bracket and set it aside.

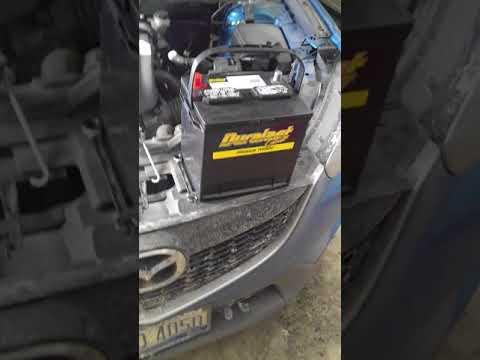

Step 5: Remove the old battery

• Lift the battery straight up and out (it’s heavy—lift with your legs, not your back).
• Set the old battery upright on the ground.

Step 6: Clean the tray and terminals (if needed)

• Mix baking soda and water (a couple spoonfuls in a cup is fine).
• Spray the battery tray area with clean water in spray bottle and wipe using shop towels.
• Use a battery post/terminal cleaning brush to clean the inside of the cable clamps if they’re crusty.
• Wipe everything dry with shop towels.

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one (positive and negative on the same sides).
• Install the hold-down bracket.
• Use a 10mm socket and torque wrench (in-lb range) to tighten the hold-down hardware: Torque to 8.8 Nm (78 in-lbs).

Step 8: Reconnect the positive (+) terminal first

• Install the positive clamp fully down on the battery post.
• Use a 10mm wrench and tighten the clamp nut: Torque to 5.4 Nm (48 in-lbs).
• Install battery terminal anti-corrosion pads and apply battery terminal protective spray if you’re using them.

Step 9: Reconnect the negative (-) terminal last

• Install the negative clamp fully down on the battery post.
• Use a 10mm wrench and tighten the clamp nut: Torque to 5.4 Nm (48 in-lbs).

Step 10: Final checks

• Gently try to twist each terminal by hand—there should be no movement.
• Make sure the battery is secure and does not slide in the tray.

---

✅ After Repair

• 🚗 Start the engine and confirm the crank is strong and steady.
• ⚠️ If any warning lights appear, shut off and re-check terminal tightness and cleanliness.
• 🕒 Reset the clock and radio presets.
• 🪟 If the power windows lost “auto” function: fully raise the window, then keep holding the switch up for 2-3 seconds to re-learn it.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $140-$280 (parts only)

You Save: $80-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
