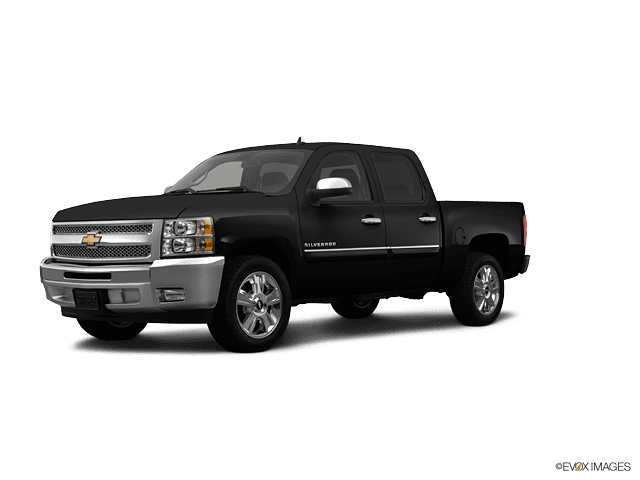

🔧 Silverado 1500 - Battery Replacement

I can walk you through replacing the standard 12V battery under the hood, or the high-voltage hybrid battery pack is something totally different and not DIY safe.

Difficulty Level: Beginner | Estimated Time: 0.5–1 hour

---

⚠️ Safety & Precautions

• ⚠️ Very important: On your hybrid, only the regular 12V battery under the hood is safe for a beginner. Do not touch or open the high-voltage hybrid battery system (orange cables, large battery pack).
• ⚠️ Always turn the ignition off and remove the key before working.
• ⚠️ Wear eye protection and gloves. Car batteries contain acid and can spark.
• ⚠️ Never touch both battery terminals with a tool at the same time. This can cause a short circuit and big sparks.
• ⚠️ Disconnect the negative (-) cable first, and reconnect it last. This helps prevent accidental short circuits.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 13mm socket
• 🧰 3/8" ratchet
• 🧰 3" ratchet extension
• 🧰 Battery terminal brush
• 🧰 Small wire brush
• 🧰 Battery carrier strap (specialty)
• 🧰 Safety glasses
• 🧰 Mechanic gloves
• 🧰 Shop rags
• 🧰 Baking soda
• 🧰 Small plastic cup

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 12V battery (AGM type, group size 48 or equivalent for hybrid) - Qty: 1
• 🔩 Battery terminal anti-corrosion spray - Qty: 1
• 🔩 Battery terminal felt washers - Qty: 1 set
• 🔩 Battery hold-down bolt (if old one is rusty) - Qty: 1

---

📋 Before You Begin

• Park your Silverado on level ground, select Park, and set the parking brake.
• Turn off all lights and accessories, and remove the key from the ignition.
• Open the hood and use the hood prop rod to keep it open.
• Have your radio anti-theft code handy if your radio needs one (most do not, but be prepared).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the 12V battery

• Open the hood. The 12V battery on your Silverado hybrid is on the driver side front corner of the engine bay.
• Make sure you only work on the standard 12V battery with normal cables, not any orange high-voltage cables.
• Use shop rags to wipe any dirt off the top so you can clearly see the terminals.

Step 2: Mix a simple cleaning solution

• Fill the small plastic cup with water and add a spoon of baking soda.
• Stir it with a clean tool. This solution helps neutralize battery acid on the case or terminals.
• Keep liquid off open battery cells if you see any

Step 3: Disconnect the negative (-) battery cable

• Identify the negative (-) terminal (usually black cable and a "-" symbol).
• Use the 10mm socket and 3/8" ratchet to loosen the nut on the negative terminal clamp.
• Once loose, twist the clamp slightly and pull it up and off the battery post.
• Move the cable end far enough aside so it cannot spring back to touch the terminal. You can wrap it in a shop rag.

Step 4: Disconnect the positive (+) battery cable

• Identify the positive (+) terminal (usually red cable and a "+" symbol, may have a plastic cover).
• Flip open or slide back the red cover if fitted.
• Use the 10mm socket and 3/8" ratchet to loosen the nut on the positive clamp.
• Lift the positive cable clamp off the battery post and move it aside, making sure it does not touch any metal parts.
• Never let your tool bridge positive to metal body

Step 5: Remove the battery hold-down clamp

• At the base of the battery, there is a hold-down bracket that keeps the battery from moving.
• Use the 13mm socket, 3/8" ratchet, and 3" extension to remove the hold-down bolt.
• Lift off the hold-down bracket and set it aside.

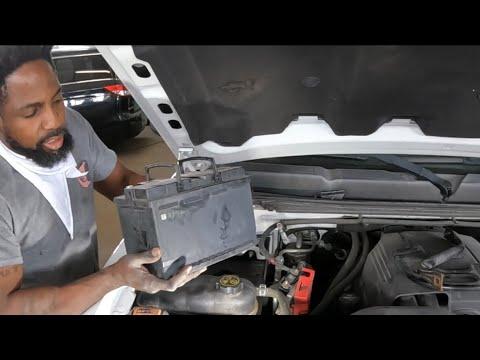

Step 6: Remove the old battery

• A truck battery is heavy. Use a battery carrier strap attached to the battery handles or sides if available.
• Lift the battery straight up and out of the tray. Keep your back straight and use your legs.
• Place the battery on the ground in an upright position, away from children and pets.

Step 7: Clean the battery tray and terminals

• Dip a shop rag in the baking soda solution and wipe the battery tray to remove any white or green corrosion.
• Use the small wire brush to clean rust on the hold-down bracket if needed.
• Use the battery terminal brush to clean the inside of both cable clamps until the metal is shiny.
• Dry everything with a clean shop rag.

Step 8: Place the new battery in the tray

• Carefully lift the new battery with the battery carrier strap and place it in the tray in the same orientation as the old one (positive and negative on the correct sides).
• Make sure it sits flat in the tray and does not rock.

Step 9: Install the battery hold-down clamp

• Reinstall the hold-down bracket at the base of the battery.
• Use the 13mm socket, 3/8" ratchet, and 3" extension to install the hold-down bolt.
• Tighten the bolt snug: Torque to 15 Nm (11 ft-lbs). Do not overtighten; it just needs to firmly hold the battery.

Step 10: Install felt washers and connect the positive (+) cable

• Slide the felt washers onto the battery posts, starting with the positive side if the kit is color-coded.
• Place the positive cable clamp onto the positive battery post first.
• Use the 10mm socket and 3/8" ratchet to tighten the clamp nut.
• Tighten until the clamp does not move by hand: Torque to 5 Nm (44 in-lbs). Do not strip it.
• Close the red plastic cover over the positive terminal if present.

Step 11: Connect the negative (-) cable

• Place the negative cable clamp onto the negative battery post.
• Use the 10mm socket and 3/8" ratchet to tighten the clamp nut.
• Tighten until the clamp does not twist by hand: Torque to 5 Nm (44 in-lbs).

Step 12: Protect the terminals

• Spray a light coat of battery terminal anti-corrosion spray on both terminals and clamps.
• A thin coat is enough; do not soak it

---

✅ After Repair

• Turn the ignition on and check that the dash lights, radio, and interior lights work.
• Start your Silverado and confirm it starts normally and no warning lights stay on.
• Reset your clock and radio presets if they were lost.
• On some hybrids, the engine may idle slightly differently at first as systems relearn. This should smooth out after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $260–$380 (parts + labor)

DIY Cost: $160–$250 (parts only, depending on battery brand)

You Save: $100–$130 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.5–0.7 hours.

---
