🔧 Traverse - Battery Replacement

On your Traverse, the 12V battery is in the engine compartment. Replacing it is mostly disconnecting the cables, removing the hold-down, swapping the battery, then reconnecting everything in the correct order to avoid electrical damage.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF and keep the key fob at least 10 feet away from the vehicle.
• ⚠️ Disconnect the negative (-) cable first and reconnect it last to reduce short-circuit risk.
• ⚠️ Do not let a tool touch metal while touching the positive terminal.
• ⚠️ Batteries are heavy and contain acid—wear gloves and eye protection.
• ⚠️ If your battery has a small hose attached, that’s a vent tube—do not pinch or lose it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 6" socket extension
• Torque wrench (5-30 ft-lbs range)
• Trim clip tool
• Battery terminal brush
• Work gloves
• Safety glasses
• OBD-II memory saver (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V main battery (correct group size for Traverse) - Qty: 1
• Dielectric grease - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Open the hood and let the vehicle “go to sleep” for about 5 minutes (modules power down).
• If you want to keep radio presets/settings, connect an OBD-II memory saver (specialty) before disconnecting the battery.
• Make sure you have the correct replacement battery type (some vehicles require AGM depending on equipment).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Open the hood and locate the battery in the engine compartment.
• If there’s a plastic cover/air duct in the way, remove any retainers using a trim clip tool, then remove bolts with a 10mm socket.

Step 2: Disconnect the negative (-) cable first

• Use a 10mm socket to loosen the negative terminal bolt and remove the cable from the battery.
• Push the negative cable aside so it cannot spring back onto the terminal.
• Negative off first prevents accidental shorts.
• Tighten on install: Torque to 15 Nm (11 ft-lbs)

Step 3: Disconnect the positive (+) cable

• Use a 10mm socket to loosen the positive terminal bolt and remove the cable.
• Cover the end of the positive cable with a rag so it can’t touch metal.
• Tighten on install: Torque to 15 Nm (11 ft-lbs)

Step 4: Remove the battery hold-down

• Remove the battery hold-down bolt using a 13mm socket and 6" socket extension.
• Remove the hold-down clamp and set it aside.
• Tighten on install: Torque to 20 Nm (15 ft-lbs)

Step 5: Disconnect the vent tube (if equipped)

• If you see a small hose connected to the battery case, pull it off gently by hand.
• This is a vent tube (it routes battery fumes safely).

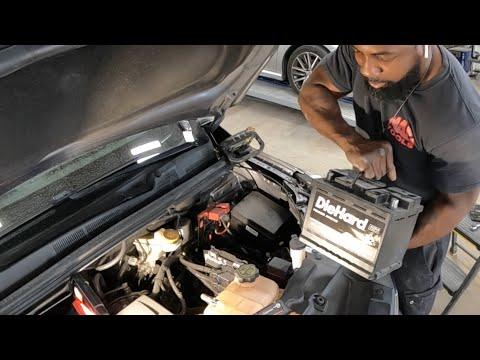

Step 6: Remove the old battery

• Lift the battery straight up and out using both hands (it’s heavy).
• Keep it upright to avoid any acid leakage.

Step 7: Clean and prep the terminals

• Use a battery terminal brush to clean corrosion from the cable ends.
• Install battery terminal anti-corrosion pads on the new battery posts/terminals.
• Apply a light film of dielectric grease to help reduce future corrosion.

Step 8: Install the new battery

• Place the new battery into the tray in the same orientation as the old one.
• Reconnect the vent tube if your old battery had one.

Step 9: Reinstall and tighten the hold-down

• Install the hold-down clamp and bolt using a 13mm socket.
• Final tighten using a torque wrench (5-30 ft-lbs range): Torque to 20 Nm (15 ft-lbs)

Step 10: Reconnect cables (positive first, negative last)

• Install the positive (+) cable first and tighten using a 10mm socket: Torque to 15 Nm (11 ft-lbs)
• Install the negative (-) cable last and tighten using a 10mm socket: Torque to 15 Nm (11 ft-lbs)

---

✅ After Repair

• Start the engine and confirm normal cranking and no warning lights.
• Check that headlights, horn, and power liftgate work normally.
• If the clock or presets reset, re-set them from the infotainment screen.
• Drive for 10-15 minutes to allow the vehicle to stabilize charging behavior.
• If you see “Service Battery Charging System,” re-check terminal tightness and corrosion.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $180-$320 (parts only)

You Save: $70-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
