🔧 12V Battery - Replacement

Your battery sits under the hood and can be replaced without removing major components. On your Rogue, the main job is disconnecting the old battery safely, swapping the battery, and making sure the terminals are tight and clean so the charging system works correctly.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hours

---

⚠️ Safety & Precautions

• Turn the ignition off and remove the key/fob from the vehicle before starting.
• Wear safety glasses and gloves. Battery acid can burn skin and eyes.
• Disconnect the negative battery terminal first, then the positive terminal.
• Do not let a wrench touch both battery terminals or metal body parts at the same time.
• Use proper lifting technique. Batteries are heavy.
• If your Rogue has any saved radio or clock settings, they may reset after battery disconnect.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 10mm socket
• Ratchet
• Battery terminal puller (specialty)
• Battery strap or handle
• Wire brush
• Safety glasses
• Mechanic gloves
• Memory saver (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery - Qty: 1
• Battery terminal protectant spray - Qty: 1
• Battery hold-down hardware - Qty: 1 if damaged or corroded

---

📋 Before You Begin

• Park on level ground.
• Set the parking brake.
• Turn all lights, accessories, and the ignition off.

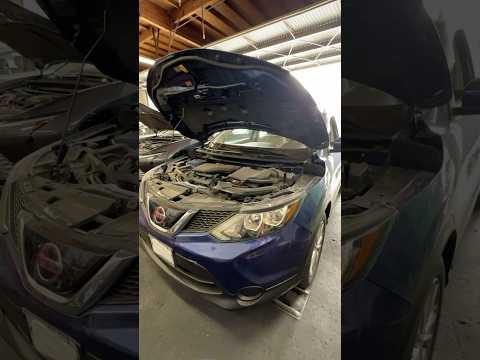

• Open the hood and locate the battery on the driver side of the engine bay.
• If you are using a memory saver, connect it before disconnecting the battery.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the negative cable

• Use a 10mm wrench to loosen the negative battery terminal clamp.
• Pull the negative cable off the battery post and move it aside so it cannot spring back.
• Always remove the negative first.

Step 2: Remove the positive cable

• Use a 10mm wrench to loosen the positive terminal clamp.
• Remove the positive cable and keep it away from the battery.

Step 3: Remove the battery hold-down

• Use a 10mm socket and ratchet to remove the battery hold-down bracket or clamp.
• Set the hardware aside in case you need it for the new battery.

Step 4: Lift out the old battery

• Use a battery strap or handle to lift the battery straight up and out.
• Be careful not to tilt it too much.
• Keep it upright to avoid spills.

Step 5: Clean the tray and terminals

• Use a wire brush to clean corrosion from the battery tray and terminal clamps.
• Make sure the cable ends are clean and dry before installing the new battery.

Step 6: Install the new battery

• Set the new battery into the tray with the terminals in the same orientation as the old one.
• Install the hold-down bracket using the 10mm socket and ratchet.
• Torque to 12-15 Nm (9-11 ft-lbs).

Step 7: Connect the positive cable

• Place the positive cable on the positive battery post.
• Use a 10mm wrench to tighten the clamp.
• Torque to 5-7 Nm (44-62 in-lbs).

Step 8: Connect the negative cable

• Place the negative cable on the negative battery post.
• Use a 10mm wrench to tighten the clamp.
• Torque to 5-7 Nm (44-62 in-lbs).

Step 9: Protect the terminals

• Apply battery terminal protectant spray to help reduce corrosion.
• Check that both terminals are snug and cannot twist by hand.

---

✅ After Repair

• Start the engine and make sure it cranks normally.
• Check for warning lights on the dash.
• Reset the clock and radio presets if needed.
• Drive the vehicle for a short trip and confirm normal electrical operation.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹16,000 (parts + labor)

DIY Cost: ₹5,500-₹11,000 (parts only)

You Save: ₹2,500-₹5,000 by doing it yourself!

Shop labor rates vary but typically run ₹8,000-₹12,000/hour. This repair takes a shop approximately 0.5-1 hours.

---
