🔧 4Runner - Battery Replacement

Replacing your 4Runner’s 12V battery is a straightforward job: you’ll remove the old battery, clean and tighten the connections, then install the new one. Doing it the right way prevents electrical damage and helps avoid future no-start issues.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: common Toyota battery terminal/hold-down torque values; verify if you have the factory spec.

---

⚠️ Safety & Precautions

• ⚠️ Keep metal tools off both terminals at once (can cause a short and sparks).
• ⚠️ Disconnect the negative (-) cable first and reconnect it last.
• ⚠️ Batteries are heavy and contain acid—wear gloves and safety glasses.
• ⚠️ Don’t let the positive (+) cable touch metal after it’s removed—cover it with a rag.
• 🔋 Battery disconnect is not strictly required beyond removing cables, but power loss may reset clock/windows presets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 10mm wrench
• 12mm socket
• 3/8" ratchet
• 6" extension (3/8" drive)
• Torque wrench (in-lb or Nm capable)
• Battery terminal brush
• Small wire brush
• Baking soda
• Clean shop towels
• Nitrile gloves
• Safety glasses
• Battery carrying strap (specialty)
• Memory saver (OBD-II) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (fits 4Runner; HowToo match by fitment) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Battery terminal felt washers (red/green) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Turn the ignition fully off and remove the key/fob from the vehicle.
• If you’re using a memory saver (a device that keeps settings alive), connect it now per its instructions.
• Open the hood and locate the battery on the passenger-side of the engine bay.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery and note terminal positions

• Use your eyes first: identify the negative (-) terminal (usually black cable) and positive (+) terminal (usually red cover).
• If there’s a red protective cap on the positive terminal, flip it open by hand.

Step 2: Disconnect the negative (-) cable first

• Use a 10mm wrench (or 10mm socket with 3/8" ratchet) to loosen the negative terminal clamp nut.
• Wiggle the clamp upward to remove it from the battery post.
• Tuck the negative cable to the side so it can’t spring back and touch the terminal.
• If it’s stuck, twist gently—don’t pry hard.

Step 3: Disconnect the positive (+) cable

• Use a 10mm wrench (or 10mm socket) to loosen the positive terminal clamp nut.
• Lift the clamp off the battery post.
• Cover the end with a clean shop towel so it can’t touch metal.

Step 4: Remove the battery hold-down bracket

• Use a 12mm socket with a 3/8" ratchet and 6" extension to remove the hold-down nuts/bolts.
• Lift off the hold-down bracket and set it aside.
• Keep the hardware together so nothing gets lost.

Step 5: Remove the old battery

• Install a battery carrying strap (specialty) (this is a strap handle that makes lifting safer).
• Lift the battery straight up and out. Set it on the ground upright.

Step 6: Clean the tray and the cable clamps

• If you see white/blue corrosion, sprinkle a small amount of baking soda on it.
• Lightly wet a shop towel and wipe the area clean. (Baking soda neutralizes acid.)
• Use a battery terminal brush to clean the inside of each cable clamp until shiny metal is visible.
• Use a small wire brush to clean the hold-down bracket contact points if they’re rusty.

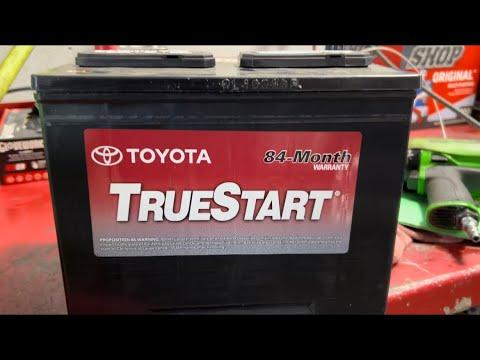

Step 7: Install the new battery

• Lower the new battery into the tray in the same orientation as the old one (posts in the same locations).
• Make sure it sits flat and fully down in the tray.

Step 8: Reinstall and tighten the hold-down

• Reinstall the bracket and start all nuts/bolts by hand to avoid cross-threading.
• Use a 12mm socket with a 3/8" ratchet to snug them evenly.
• Finish with a torque wrench: Torque to 19 Nm (14 ft-lbs).
• Battery should not move when pushed.

Step 9: Reconnect the positive (+) cable first

• Install the positive clamp fully down on the battery post.
• Use a 10mm socket and 3/8" ratchet to tighten.
• Finish with a torque wrench: Torque to 5 Nm (44 in-lbs).
• Install battery terminal felt washers (if using), then apply terminal anti-corrosion spray.

Step 10: Reconnect the negative (-) cable last

• Install the negative clamp fully down on the battery post.
• Use a 10mm socket and 3/8" ratchet to tighten.
• Finish with a torque wrench: Torque to 5 Nm (44 in-lbs).
• Apply terminal anti-corrosion spray after tightening.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no warning lights staying on.
• Set the clock and re-save radio presets if they reset.
• If the auto-down/up window function acts weird, cycle each window fully down and fully up once using the switch.
• Recheck terminal tightness: the clamps should not rotate by hand.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $160-$320 (parts only)

You Save: $90-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
