🔧 Camry - 12V Battery Replacement

You’ll remove the old 12V battery from the engine bay and install a new one, then reconnect it in the correct order so the car’s electronics stay safe. This fixes slow cranking, no-starts, and random warning lights caused by a weak battery.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: Your Camry uses a Group 24F battery (common fitment).

---

⚠️ Safety & Precautions

• ⚠️ Keep the key fob at least 10 feet away so the car can’t wake up.
• ⚠️ Wear gloves and safety glasses—battery acid is corrosive.
• ⚠️ Disconnect the negative (-) cable first and reconnect it last to reduce short-circuit risk.
• ⚠️ Do not let a wrench touch the positive terminal and metal body parts at the same time.
• ⚠️ Battery disconnect is not strictly required for removal, but you will be disconnecting both terminals for replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" ratchet
• 6" extension for 3/8" ratchet
• 10mm combination wrench
• Battery terminal puller (specialty)
• Wire brush
• Battery terminal cleaner (specialty)
• Nitrile gloves
• Safety glasses
• Fender cover
• Torque wrench (in-lb capable)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V car battery (Group 24F) - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Open the hood and let the engine bay cool if it’s hot.
• Have your radio presets/clock in mind—some settings may reset when the battery is disconnected.
• If you see heavy white/blue crust on the terminals, plan to clean them (that crust is corrosion).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

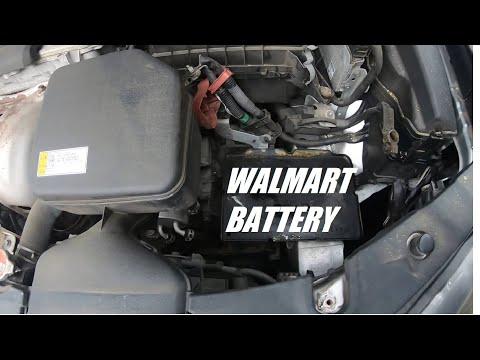

Step 1: Locate the battery

• The battery is in the engine bay. Lay a fender cover over the fender to protect paint.

Step 2: Disconnect the negative (-) terminal first

• Use a 10mm socket with a 3/8" ratchet to loosen the negative clamp nut.
• Wiggle the clamp up and off the battery post.
• Tip: Tuck the cable aside so it can’t spring back.
• A battery “terminal” is the round metal post on top of the battery.

Step 3: Disconnect the positive (+) terminal

• Flip up the red protective cover (if equipped).
• Use a 10mm socket to loosen the positive clamp nut, then remove the clamp from the post.
• If a clamp is stuck, use a battery terminal puller (specialty) (a small tool that lifts the clamp off without prying).

Step 4: Remove the battery hold-down

• Use a 10mm socket, 6" extension, and 3/8" ratchet to remove the hold-down nuts on the J-bolts.
• Lift off the hold-down bracket and set it aside.

Step 5: Lift out the old battery

• Carefully lift the battery straight up and out. Batteries are heavy—use both hands.
• Keep it level to avoid any acid spill.

Step 6: Clean the battery tray and cable clamps

• Use a wire brush to clean corrosion from the cable clamps.
• Use a battery terminal cleaner (specialty) to clean the inside of each clamp until the metal looks bright.
• Wipe the tray area clean (no standing liquid).

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one.
• Install the hold-down bracket and start both nuts by hand.
• Tighten using a 10mm socket and ratchet, then Torque to 5.4 Nm (48 in-lbs) with a torque wrench (in-lb capable).

Step 8: Reconnect the positive (+) terminal first

• Install an anti-corrosion pad on the positive post (optional but recommended).
• Push the positive clamp fully down on the post.
• Tighten with a 10mm socket, then Torque to 5.4 Nm (48 in-lbs).
• Close the red protective cover (if equipped).

Step 9: Reconnect the negative (-) terminal last

• Install an anti-corrosion pad on the negative post (optional but recommended).
• Push the negative clamp fully down on the post.
• Tighten with a 10mm socket, then Torque to 5.4 Nm (48 in-lbs).

Step 10: Protect the terminals

• Lightly spray both terminals with battery terminal protectant spray.
• Tip: A light coat helps prevent future corrosion.

---

✅ After Repair

• Start the engine and confirm normal cranking speed.
• Check that the battery is secure (it should not move when pushed).
• Set the clock and restore any radio presets if they reset.
• If the auto-up/down window stops working, relearn it by holding the window switch down to fully open, then up to fully close, holding 2 seconds at each end.
• Watch for warning lights over the next drive; brief lights right after reconnect can be normal and often clear after driving.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $140-$260 (parts only)

You Save: $80-$160 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
