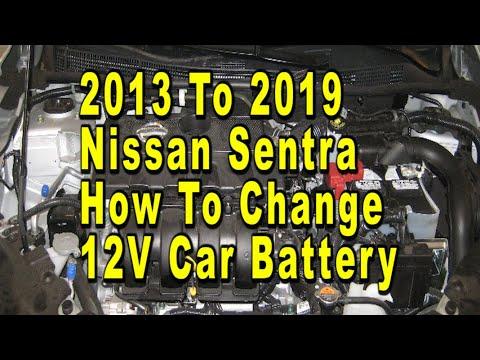

🔧 Sentra - 12V Battery Replacement

You’ll be removing the old 12V battery under the hood and installing a new one, then reconnecting the cables in the correct order. This restores reliable starting and prevents low-voltage glitches in electronics.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition fully OFF and remove the key/fob from the car.
• ⚠️ Wear eye protection and gloves—battery acid is corrosive.
• ⚠️ Never let a tool touch both battery terminals at the same time.
• ⚠️ Always disconnect the negative (-) cable first and reconnect it last to reduce spark risk.
• ⚠️ Keep sparks/flames away from the battery area (hydrogen gas risk).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm wrench
• 10mm socket
• 12mm socket
• 13mm socket
• 3/8" ratchet
• 6" extension (3/8")
• Battery terminal brush (specialty)
• Small wire brush
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (Group size 51R) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Battery terminal felt washer set - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, shift to Park, and set the parking brake.
• 🧰 Open the hood and locate the battery.
• 🧰 Optional: use a 12V memory saver (a small device that keeps settings powered through the OBD port or power outlet) if you want to reduce loss of radio presets/clock.
• 🧰 Quick question so I can tailor the last step: does your Sentra have push-button start or a turn-key ignition?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm battery orientation and cable routing

• Use safety glasses and nitrile gloves.
• Use a visual check (or a quick phone photo) so the new battery goes in the same way (positive and negative on the correct sides).

Step 2: Disconnect the negative (-) battery terminal

• Use a 10mm wrench (or 10mm socket with 3/8" ratchet) to loosen the negative terminal clamp nut.
• Twist and lift the clamp off the negative post, then tuck the cable aside so it can’t spring back and touch the post.
• Negative off first reduces short risk.

Step 3: Disconnect the positive (+) battery terminal

• Use a 10mm wrench (or 10mm socket with 3/8" ratchet) to loosen the positive terminal clamp nut.
• Lift the clamp off the positive post and move it aside so it can’t touch metal.

Step 4: Remove the battery hold-down bracket

• Use a 12mm socket or 13mm socket with a 3/8" ratchet and 6" extension to remove the hold-down fasteners.
• Lift off the hold-down bracket and set it aside.
• Torque: If you’re using a torque wrench, use the factory spec from your Sentra service information for the hold-down fasteners (varies by hardware).

Step 5: Remove the old battery

• Use both hands and lift the battery straight up and out.
• Set it on the ground upright (don’t tip it).

Step 6: Clean the tray and terminals

• Use shop rags to wipe the battery tray clean.
• Use a battery terminal brush (specialty) to clean the inside of each cable clamp until the metal looks bright.
• Use a small wire brush to clean any crusty corrosion on the hold-down bracket if needed.

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down bracket using the 12mm socket or 13mm socket with the 3/8" ratchet and 6" extension.
• Tighten until the battery cannot move by hand.

Step 8: Reconnect the positive (+) terminal first

• Install the battery terminal felt washer set on the positive post (if included).
• Push the positive clamp fully down onto the positive post.
• Use a 10mm wrench (or 10mm socket with 3/8" ratchet) to tighten the clamp until it won’t rotate by hand.
• Apply a light coat of battery terminal anti-corrosion spray to the connection.

Step 9: Reconnect the negative (-) terminal last

• Install the battery terminal felt washer set on the negative post (if included).
• Push the negative clamp fully down onto the negative post.
• Use a 10mm wrench (or 10mm socket with 3/8" ratchet) to tighten the clamp until it won’t rotate by hand.
• Apply a light coat of battery terminal anti-corrosion spray to the connection.

Step 10: Basic resets (if needed)

• Set the clock in the audio display if it reset.
• If the driver window auto-up/down stops working: turn ignition ON, then hold the window switch fully DOWN for 5 seconds, then fully UP for 5 seconds.

---

✅ After Repair

• ✅ Start the engine and confirm it cranks strongly and the charging/ battery warning light is off.
• ✅ Turn headlights on for 30 seconds, then verify no flicker and no warning lights.
• ✅ Recheck both terminals by hand—there should be no wiggle.
• ✅ If you have push-button start and it says “Key System Error,” move the fob close to the start button and try again (low fob battery can mimic issues).

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹12,000 (battery + labor)

DIY Cost: ₹5,000-₹11,000 (battery only)

You Save: ₹1,000-₹3,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
