🔧 Battery - 12V Auxiliary Battery Replacement

Assumption: This guide is for the 12V auxiliary battery, not the high-voltage hybrid battery pack. The hybrid pack is a sealed system and should not be serviced as a DIY battery swap.

The 12V battery powers the electronics, locks, lights, and controls in your RAV4. Replacing it is straightforward, but the hybrid system needs careful handling so you do not lose memory settings or create a fault code.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Do not open or attempt to replace the high-voltage hybrid battery pack.
• Turn the ignition fully off and keep the key fob away from the vehicle.
• Wear safety glasses and gloves. Battery acid and corrosion can irritate skin and eyes.
• Disconnect the negative battery terminal first, then the positive terminal.
• When reinstalling, connect the positive terminal first, then the negative terminal.
• Keep metal tools away from both battery terminals at the same time.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 10mm socket
• Ratchet
• Extension bar
• Gloves
• Safety glasses
• Memory saver (optional)
• Battery terminal brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V auxiliary battery - Qty: 1
• Battery terminal protectant spray - Qty: 1
• Battery hold-down hardware kit - Qty: 1 if damaged or corroded

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Make sure the vehicle is fully off and the key fob is away from the vehicle.
• If using a memory saver, install it before disconnecting the battery.
• Open the rear cargo area and access the 12V battery cover.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

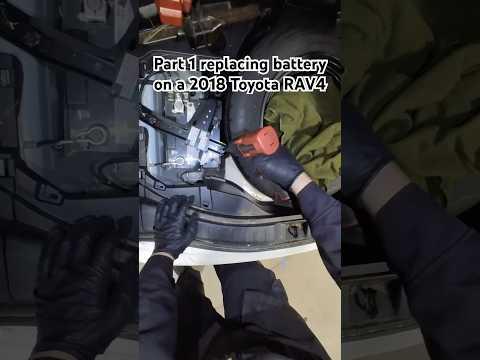

Step 1: Access the 12V battery

• Open the rear hatch.
• Remove the cargo floor panel and any storage trays covering the battery area.
• Lift off the battery cover to expose the battery and terminals.

Step 2: Disconnect the negative terminal

• Use a 10mm wrench to loosen the negative terminal clamp.
• Remove the negative cable and move it aside so it cannot touch the terminal.
• Do not let the wrench touch both posts.

Step 3: Disconnect the positive terminal and hold-down

• Use a 10mm wrench to loosen the positive terminal clamp.
• Remove the positive cable and set it aside.
• Use a 10mm socket and ratchet to remove the battery hold-down bracket.

Step 4: Remove the old battery

• Lift the battery straight out. Use both hands. It is heavy.
• If the battery tray has corrosion, clean it with a battery terminal brush.
• Keep the battery upright.

Step 5: Install the new battery

• Set the new 12V battery in the tray in the same orientation as the old one.
• Reinstall the hold-down bracket with the 10mm socket and ratchet.
• Torque to 5 Nm (44 in-lbs) if specified by the hold-down hardware.

Step 6: Reconnect the terminals

• Connect the positive cable first and tighten with a 10mm wrench.
• Connect the negative cable last and tighten with a 10mm wrench.
• Torque to 5 Nm (44 in-lbs) for the terminal clamps if equipped with clamp bolts.
• Apply battery terminal protectant spray to help slow corrosion.

Step 7: Reassemble the cargo area

• Reinstall the battery cover, storage trays, and cargo floor panel.
• Close the hatch.

---

✅ After Repair

• Start the vehicle and confirm it goes to READY mode.
• Check the instrument cluster for warning lights.
• Reset the clock and any radio presets if needed.
• Test the windows, locks, and hatch release.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $140-$260 (parts only)

You Save: $110-$190 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
