🔧 GLC300 - 12V Battery Replacement

Replacing the 12V battery restores reliable starting and prevents low-voltage errors. Your GLC300 uses a computer-managed battery system, so correct disconnection order and a solid terminal connection are important.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.0 hours

Assumption: Main battery is the under-hood 12V AGM battery; torque specs listed are typical for this model.

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF, remove the key/fob from the vehicle, and keep it at least 15 ft away.
• ⚠️ Do not allow tools to bridge battery terminals or touch body metal and the positive terminal at the same time.
• ⚠️ Always disconnect negative (–) first and reconnect it last to reduce short-circuit risk.
• ⚠️ Wear eye protection and gloves; batteries can vent corrosive gas and acid.
• ⚠️ If equipped with ECO start/stop, your GLC300 may also have an auxiliary battery. Replacing only the main battery may not fix start/stop warnings.
• 🔋 Battery disconnect is recommended for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 3/8" ratchet
• 6" socket extension
• Trim clip remover tool
• Battery terminal puller (specialty)
• Small wire brush
• Battery carrier strap
• Torque wrench (5-60 Nm range)
• Nitrile gloves
• Safety glasses
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V AGM main battery (H8/Group 49 equivalent, correct spec for your GLC300) - Qty: 1
• Battery terminal protectant spray - Qty: 1
• Battery anti-corrosion felt washers - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to Park, and apply the parking brake.
• Open the hood and support it securely.
• Wait 5-10 minutes with the car off so modules go to “sleep” (this helps prevent electrical glitches).
• Memory note: A “battery memory saver” keeps settings alive, but it’s optional. A memory saver is a small device that powers the car through the OBD port or 12V outlet while the battery is disconnected.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

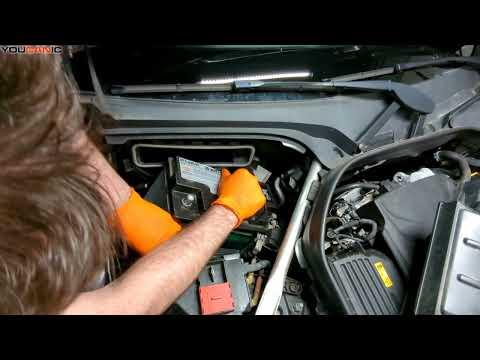

Step 1: Access the battery

• Open the hood and place a fender cover to protect paint.
• Remove the battery cover/panels as needed using a trim clip remover tool.

Step 2: Disconnect the negative (–) terminal

• Use a 10mm socket to loosen the negative terminal clamp nut.
• Lift the clamp straight up and off the negative post.
• Tip: Tuck the cable aside so it can’t spring back.
• Torque on reassembly: Torque to 6 Nm (53 in-lbs)

Step 3: Disconnect the positive (+) terminal

• Use a 10mm socket to loosen the positive terminal clamp nut.
• Remove the positive clamp from the battery post and position it safely away from the battery.
• Torque on reassembly: Torque to 6 Nm (53 in-lbs)

Step 4: Remove the battery hold-down

• Locate the lower battery hold-down clamp at the base of the battery.
• Use a 13mm socket, 3/8" ratchet, and 6" extension to remove the hold-down bolt.
• Torque on reassembly: Torque to 20 Nm (15 ft-lbs)

Step 5: Lift out the old battery

• Attach a battery carrier strap and carefully lift the battery straight up and out.
• Beginner note: Batteries are heavy; keep your back straight and lift with your legs.

Step 6: Clean and prep the battery tray and terminals

• Use a small wire brush to gently clean any corrosion from the cable clamps.
• Install battery anti-corrosion felt washers on the posts (if you’re using them).
• Lightly apply battery terminal protectant spray after final tightening.

Step 7: Install the new battery

• Place the new AGM battery into the tray in the same orientation as the old one.
• Reinstall the hold-down clamp and bolt using a 13mm socket and 3/8" ratchet.
• Torque: Torque to 20 Nm (15 ft-lbs)

Step 8: Reconnect terminals (positive first)

• Reconnect the positive (+) clamp first and tighten with a 10mm socket.
• Torque: Torque to 6 Nm (53 in-lbs)
• Reconnect the negative (–) clamp last and tighten with a 10mm socket.
• Torque: Torque to 6 Nm (53 in-lbs)
• Tip: Clamps should not rotate on the posts.

Step 9: Reinstall covers

• Reinstall any battery covers/panels you removed using the trim clip remover tool (press clips fully seated).
• Double-check nothing is left near the belts/fans.

---

✅ After Repair

• Start the engine and confirm normal cranking and idle.
• Check the cluster for warnings. Some warnings may clear after a short drive.
• Set the clock and restore any saved settings if they reset.
• Recommended: Perform a battery “teach-in/registration” with a compatible scan tool (this tells the battery management system a new battery is installed, improving charging strategy).
• If you still have Start/Stop inoperative messages, the auxiliary battery may also be weak and may need testing/replacement.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $180-$350 (parts only)

You Save: $170-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
