🔧 Forester - Taillight Bulb Replacement

On your Forester, some rear lighting functions may be LED and not serviced as a simple “bulb.” The only commonly serviceable rear “bulb” is the reverse (backup) light; if your brake/running/turn lights are LED, the entire lamp assembly is replaced.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF and remove key/fob from the vehicle.
• ⚠️ Let the lamps cool before touching sockets or lenses.
• ⚠️ Don’t touch halogen bulb glass with bare fingers (skin oil can shorten bulb life).
• ⚠️ Support the lamp so it doesn’t scratch paint when it releases from the body clips.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• Inch-pound torque wrench (specialty)
• Plastic trim removal tool
• Phillips screwdriver
• Nitrile gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Reverse light bulb (W16W/921 type) - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the rear liftgate for access.
• If you’re replacing “brake/running/turn” lights: check first if the lit sections look like an LED strip/module (often not a replaceable bulb).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which rear light function is out

• Use a flashlight and have a helper operate the lights: running lights, brake, turn signals, and reverse.
• If the light that’s out is the reverse light, follow the steps below.
• If the light that’s out is an LED section (often running/brake on many trims), skip to Step 8.

Step 2: Remove the interior access cover (if equipped)

• On the inside edge of the cargo area near the taillight, use a plastic trim removal tool to pop off the small access cover.
• Trim tool = plastic pry tool.

Step 3: Remove the taillight retaining nuts/screws

• Use a 10mm socket with a 1/4" ratchet to remove the taillight retaining nuts (typically 2).
• If your side uses a screw instead of a nut, remove it with a Phillips screwdriver.
• Place fasteners somewhere safe so they don’t fall into trim.

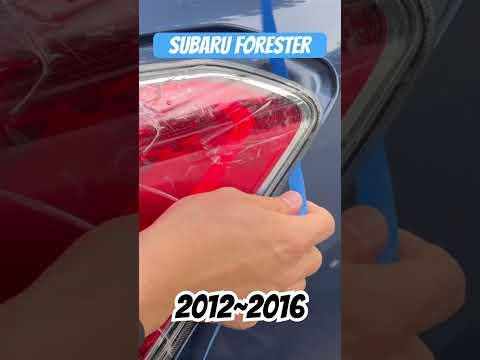

Step 4: Release the taillight assembly from the body clips

• With both hands, pull the lamp straight rearward (not outward) to release the alignment pins/clips.
• If it’s stuck, use a plastic trim removal tool to gently help it release while protecting paint.

Step 5: Remove the reverse bulb socket

• Locate the reverse (backup) bulb socket on the back of the lamp.
• Twist the socket counterclockwise by hand and pull it out.
• If it’s tight, wear nitrile gloves for better grip.

Step 6: Replace the bulb

• Pull the old bulb straight out of the socket by hand (use nitrile gloves).
• Install the new Reverse light bulb (W16W/921 type) by pushing it straight in until fully seated.
• Apply a tiny amount of dielectric grease to the socket seal (not on the bulb glass/contacts).

Step 7: Reinstall and torque the lamp fasteners

• Reinsert the socket and twist clockwise by hand until it locks.
• Align the lamp’s guide pins and press the lamp straight into place.
• Install the nuts and tighten with a 10mm socket.
• Final tighten using an inch-pound torque wrench (specialty): Torque to 5 Nm (44 in-lbs).
• Reinstall the access cover using your hands (or plastic trim removal tool if needed).

Step 8: If your “taillight bulb” is actually LED (no bulb to change)

• If the failed light is an LED section (no removable bulb socket), the fix is replacing the taillight assembly.
• Use a flashlight to confirm there is no twist-out bulb socket for the failed section.
• If you want, tell me which function is out (running/brake/turn) and which side (left/right), and I’ll give the correct assembly replacement steps.

---

✅ After Repair

• Turn the ignition ON and test: running lights, brakes, turn signals, and reverse (with a helper).
• Confirm the lamp sits flush to the body and the liftgate closes without rubbing.
• Check for moisture inside the lens over the next day (seal seated correctly).

---

💰 DIY vs Shop Cost

Shop Cost: $120-$220 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $90-$190 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
