🔧 Ioniq - Taillight Bulb Replacement

On your Ioniq, “taillight bulbs” can mean the outer quarter-panel lamp bulbs (tail/brake/turn) and/or the hatch-mounted inner lamp bulbs (reverse). The physical replacement is simple: remove an access cover or lamp nuts, twist the bulb socket out, swap the bulb, then reassemble.

Quick check: Which bulbs are you replacing—running/brake bulbs in the outer lamps, reverse bulbs in the hatch lamps, or all rear bulbs? (I’ll cover both common locations below.)

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the car OFF and keep the key fob away from the vehicle while working.
• ⚠️ Let bulbs cool before touching; they can get hot.
• ⚠️ Don’t touch new glass bulbs with bare fingers; skin oil can shorten bulb life.
• Use gentle force when pulling the lamp housing; the plastic alignment pins can break.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Phillips screwdriver #2
• Plastic trim removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear tail/brake bulb (outer lamp) - Qty: 2
• Rear turn signal bulb (outer lamp) - Qty: 2
• Reverse light bulb (hatch lamp) - Qty: 2

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the car OFF and open the hatch.
• Lay a towel near the bumper edge so the lamp lens doesn’t get scratched if it slips.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the outer taillight (quarter-panel) bulb area

• Open the hatch and look behind the taillight area inside the cargo compartment.
• Use a plastic trim removal tool to pop off the small access cover (or pull back the side trim enough to reach the lamp fasteners).
• Use a flashlight so you can clearly see the bulb sockets and nuts.

Step 2: Remove the outer taillight housing

• Use a 10mm socket, 1/4" ratchet, and 6" socket extension to remove the lamp mounting nuts.
• Support the lamp with one hand while removing the last nut.
• Pull the lamp straight rearward (toward the bumper). Wiggle gently; don’t pry the lens.
• If needed, use a plastic trim removal tool only on the body side (not the lens) to help release the alignment pins.

Step 3: Remove the bulb socket and replace the bulb (outer lamp)

• Turn the bulb socket counterclockwise by hand and pull it out of the lamp housing.
• Pull the old bulb straight out of the socket (or twist slightly if it’s a twist-lock style).
• Install the new bulb by matching the old bulb’s base and orientation.
• Reinsert the socket and turn clockwise until it locks.
• If you’re replacing both sides, repeat Steps 1-3 on the other outer lamp.

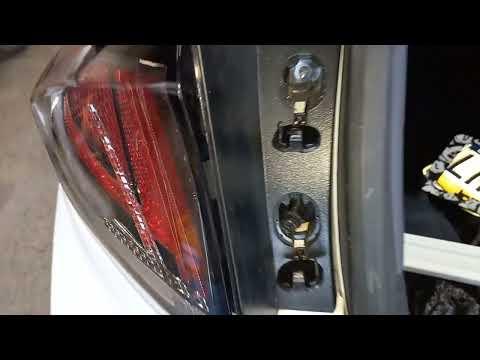

Step 4: Reinstall the outer taillight housing

• Line up the lamp’s alignment pins with the body grommets, then press the lamp straight in.
• Install the mounting nuts using a 10mm socket and 1/4" ratchet.
• Torque to 7 Nm (62 in-lbs) on the lamp mounting nuts.
• Reinstall the access cover by pressing it back into place by hand.

Step 5: Replace the inner (hatch-mounted) rear bulbs if needed

• With the hatch open, locate the hatch trim access cover behind the inner lamp area.
• Use a plastic trim removal tool to remove the access cover.
• Turn the bulb socket counterclockwise by hand and remove it.
• Swap the bulb, reinstall the socket, and reinstall the access cover.

---

✅ After Repair

• Turn the car ON and test each function: tail/running lights, brake lights, turn signals, and reverse lights.
• Walk behind the car to confirm both sides match in brightness and color.
• If a new bulb doesn’t work, remove it and reinstall it firmly; then check that the socket is fully locked.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (parts + labor)

DIY Cost: $10-$60 (parts only)

You Save: $70-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
