🔧 Mustang - Taillight Bulb Replacement

On your Mustang, the outer taillamps are removed from inside the trunk so you can access the bulb sockets. Note: many Mustang GT Premium taillamps use LED brake/turn lights (not replaceable “bulbs”), but the reverse (backup) bulb is replaceable on most setups.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key/fob from the car.
• ⚠️ Let bulbs cool before touching; they get hot.
• ⚠️ Do not touch new halogen bulb glass with bare fingers; oils can shorten bulb life.
• ⚠️ Support the taillamp as you remove it so it doesn’t scratch paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 11mm deep socket
• 1/4" drive ratchet
• 6" socket extension
• Plastic trim removal tool set
• Small flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Reverse (backup) light bulb - Qty: 2
• Stop/turn bulb - Qty: 2 (only if your taillamps are incandescent, not LED)

---

📋 Before You Begin

• Park on level ground and open the trunk.
• Move trunk contents out of the way so you can reach the rear corners.
• A plastic trim removal tool is a non-marring pry tool used to pop clips without scratching panels.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the taillamp fasteners inside the trunk

• Use a small flashlight to locate the trunk side trim panel directly behind the taillamp.
• Use a plastic trim removal tool set to gently pop the plastic push-clips and peel the trunk trim back enough to reach the taillamp nuts.

Step 2: Remove the taillamp retaining nuts

• Use an 11mm deep socket, 6" socket extension, and 1/4" drive ratchet to remove the taillamp retaining nuts.
• Put the nuts somewhere safe so they don’t fall into the trunk trim.

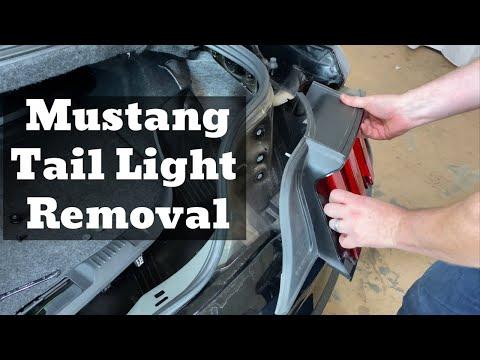

Step 3: Remove the taillamp assembly

• From outside the car, hold the taillamp with one hand and pull it straight rearward.
• If it feels stuck, wiggle gently—there are alignment pins that can be snug. Pull straight back, not sideways.

Step 4: Remove the bulb socket(s)

• Twist the bulb socket counterclockwise by hand to unlock it, then pull it out of the taillamp housing.
• If space is tight, reposition the lamp slightly while supporting it.

Step 5: Replace the bulb (choose the matching option)

• Option A (most common): Reverse/backup bulb
  • Pull the old bulb straight out of the socket using nitrile gloves.
  • Install the new bulb by pushing it straight in until fully seated.
• Option B: Stop/turn bulb (only if your taillamp uses a removable bulb)
  • Pull the old bulb straight out of the socket using nitrile gloves.
  • Install the new bulb by pushing it straight in until fully seated.
  • If your brake/turn is an LED module, there will be no removable bulb for it—replacement is the full lamp/module.

Step 6: Reinstall the bulb socket(s) and taillamp

• Reinsert the socket into the taillamp and twist clockwise by hand until it locks.
• Align the taillamp pins and push the taillamp straight into position.
• Install the retaining nuts using an 11mm deep socket, 6" socket extension, and 1/4" drive ratchet.
• Torque to 5 Nm (4 ft-lbs)

Step 7: Refit the trunk trim

• Press the trunk trim back into place.
• Use the plastic trim removal tool set (or your hand) to line up clips, then press the push-clips in until they seat.

Step 8: Repeat on the other side

• Repeat Steps 1–7 for the other taillamp so both sides match in brightness and color.

---

✅ After Repair

• Turn the ignition ON (engine can stay off).
• Test lights: parking lights, brake lights, turn signals, and reverse lights.
• If a bulb doesn’t work, remove that socket again and confirm the bulb is fully seated.
• Make sure both taillamps sit flush with the body and gaps look even.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$220 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $80-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
