🔧 A3 - Taillight Bulb Replacement

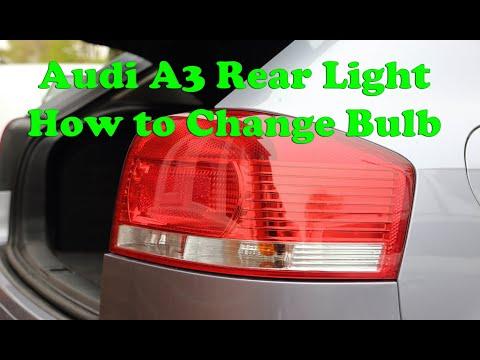

On your A3, taillight “bulbs” are inside the rear lamp housings. Replacing them means removing access covers in the trunk, unplugging the lamp, and swapping the bulbs in the bulb holder (or confirming the lamp is LED and non-serviceable).

Assumption: This covers the common serviceable-bulb rear lamps; if your A3 has full-LED rear lamps, the “bulbs” are not replaceable and the lamp assembly must be replaced.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the lights OFF and remove the key before starting.
• ⚠️ Let bulbs cool before touching; they can burn you.
• ⚠️ Avoid touching new glass bulbs with bare fingers; skin oil can shorten bulb life.
• ⚠️ Support the lamp as you loosen fasteners so it doesn’t fall and scratch paint.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Plastic trim removal tool set
• 1/4" drive ratchet
• 10mm socket
• Torx T20 screwdriver
• Torque wrench (2-20 Nm range)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (amber, PY21W/7507 equivalent) - Qty: 2
• Reverse light bulb (W16W/921 equivalent) - Qty: 2
• Rear brake/tail bulb(s) (match removed bulb type) - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the trunk.
• Turn the headlight switch to OFF and remove the key.
• Set a towel/blanket on the rear bumper edge to protect paint.
• Take a quick photo of the connector routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm you have serviceable bulbs (not full-LED)

• Open the trunk and look behind each rear lamp area for an access cover and a removable bulb holder.
• If there is no bulb holder and the lamp is sealed with an LED module, bulbs are not replaceable (the assembly is replaced as a unit).
• Use a flashlight to inspect the back of the lamp housing.

Step 2: Remove the trunk access cover (left side, then right side)

• Use a plastic trim removal tool set to carefully pop open the access cover in the trunk side trim behind the taillight.
• Set the cover aside where it won’t get stepped on.

Step 3: Unplug the taillight electrical connector

• Use your fingers (or a plastic trim removal tool set gently) to release the connector lock tab.
• Pull the connector straight off the lamp. Do not yank on the wires.

Step 4: Remove the outer taillight assembly

• Use a 10mm socket with a 1/4" drive ratchet to remove the lamp retaining nuts inside the trunk.
• Support the lamp from the outside with your free hand as the last nut comes off.
• Pull the lamp straight rearward to release the locating pins. If it’s stuck, use a plastic trim removal tool set to gently work around the edge.

Step 5: Remove the bulb holder and replace the bulb(s)

• Twist the bulb holder to unlock it (usually about a quarter-turn), then pull it out of the lamp.
• Remove the bulb by pulling it straight out (or turning slightly if it’s a bayonet-style base).
• Install the new bulb of the same type. Match the old bulb markings.
• Apply a tiny amount of dielectric grease to the connector seal area (not on the bulb glass).

Step 6: Reinstall the lamp assembly

• Reinsert the bulb holder and twist to lock it.
• Position the lamp and align the locating pins, then press it into place evenly by hand.
• Install the retaining nuts using a 10mm socket and 1/4" drive ratchet.
• Torque to 4 Nm (35 in-lbs) using a torque wrench (2-20 Nm range).
• Reconnect the electrical connector until it clicks.

Step 7: If your reverse bulbs are on the trunk lid (inner lamps), replace those too (if applicable)

• Open the trunk lid and remove the inner trunk-lid trim fasteners using a Torx T20 screwdriver.
• Use a plastic trim removal tool set to pop the trunk-lid trim panel clips and lower the panel.
• Remove the inner lamp retaining nuts with a 10mm socket and 1/4" drive ratchet, then pull the inner lamp out.
• Replace the bulb(s) the same way as Steps 5-6, then reinstall and torque to 4 Nm (35 in-lbs).

Step 8: Repeat on the other side

• Perform Steps 2-6 on the opposite taillight.
• Reinstall both trunk access covers by pressing them back into place by hand.

---

✅ After Repair

• Turn ignition ON and test: parking lights, brake lights, turn signals, and reverse lights.
• Confirm both lamps sit flush with the body and trunk trim (no gaps).
• Check the trunk for any rattles—make sure all covers and trim clips are fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$300 (parts + labor)

DIY Cost: $10-$60 (parts only)

You Save: $110-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
