🔧 GLC - Taillight Bulb Replacement

On your GLC, the rear lamp assembly may use replaceable bulbs for some functions (commonly turn signal and reverse), while the tail/stop lights are often LED and not serviceable as individual bulbs. The job is mostly about safely accessing the rear lamp, swapping the correct bulb(s), and making sure the seals go back in place to prevent water leaks.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key/fob from the vehicle.
• ⚠️ Let the bulbs cool before touching them (hot glass can burn you).
• ⚠️ Avoid touching halogen bulb glass with bare fingers (skin oil can shorten bulb life).
• ⚠️ If you see moisture or damaged seals, stop and address it before reassembly.
• ⚠️ Battery disconnect is optional but recommended if you’re worried about shorting a socket: disconnect the negative terminal using a 10mm socket.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Plastic trim removal tool set
• Torx T20 screwdriver
• Torx T25 screwdriver
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Small flat-blade screwdriver
• Flashlight
• Clean microfiber towel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb - Qty: 2
• Reverse light bulb - Qty: 2
• Rear lamp housing gasket/seal (if damaged) - Qty: 2
• Dielectric grease (small packet) - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the rear hatch.
• Turn the light switch to OFF and keep the key/fob away from the vehicle.
• Lay a clean microfiber towel near the lamp area to protect paint.
• Tip: Replace bulbs in pairs for even brightness.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption (1 line): Your GLC has serviceable rear bulbs; if your rear lights are full LED with no bulb holders, follow the “LED lamp” note in Step 6.

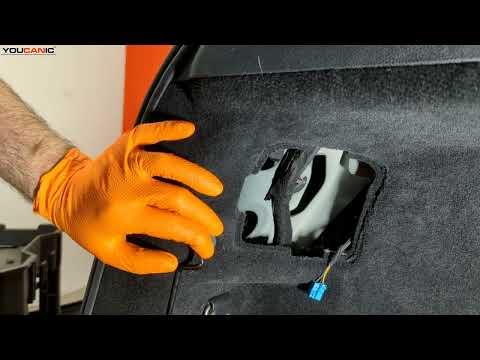

Step 1: Access the rear lamp fasteners

• Open the hatch and locate the inner trim panel beside the taillight area.
• Use a plastic trim removal tool set to gently pop the trim access cover or loosen the side trim enough to reach the lamp fasteners.
• If equipped with screws, remove them with a Torx T20 screwdriver or Torx T25 screwdriver.

Step 2: Disconnect the battery (optional but recommended)

• Open the hood.
• Use a 10mm socket with a 1/4" drive ratchet to loosen the negative battery terminal and remove it.
• Wrap the terminal with a clean microfiber towel so it can’t spring back onto the post.

Step 3: Remove the rear lamp retaining nuts/bolts

• Use a 10mm socket, 1/4" drive ratchet, and 3" extension (1/4" drive) to remove the lamp retaining nuts (typically 2-3).
• Place the nuts somewhere safe so they don’t fall into the body cavity.
• When reinstalling: Torque to 6 Nm (53 in-lbs).

Step 4: Remove the lamp assembly

• Support the lamp with one hand.
• Gently pull the lamp straight rearward. If it feels stuck, wiggle slightly—do not pry hard against painted surfaces.
• Use a plastic trim removal tool set only if needed to start it moving, and keep a clean microfiber towel between the tool and paint.

Step 5: Unplug the electrical connector

• Locate the main lamp connector.
• Release the lock tab carefully using a small flat-blade screwdriver (a lock tab is a small clip that prevents unplugging by accident).
• Pull the connector straight off—do not pull on the wires.

Step 6: Replace the bulb(s) (if equipped with bulb holders)

• Turn the bulb holder counterclockwise and remove it from the lamp (use your hands; use a flashlight to see the tabs clearly).
• Remove the old bulb by pulling it straight out of the socket.
• Install the new bulb fully seated.
• Apply a tiny amount of dielectric grease to the socket seal area (not on the bulb glass) to help prevent corrosion.
• Tip: Don’t touch the bulb glass.

• LED lamp note: If there is no removable bulb holder and the lighting is an LED board/module, the bulb is not replaceable—replacement is the complete rear lamp assembly for that side.

Step 7: Reinstall the lamp assembly

• Reconnect the main electrical connector until it clicks.
• Inspect the gasket/seal around the lamp. Replace it if torn or flattened.
• Align the lamp locating pins and press the lamp into place evenly.
• Reinstall the retaining nuts using a 10mm socket, 1/4" drive ratchet, and 3" extension (1/4" drive).
• Torque to 6 Nm (53 in-lbs).

Step 8: Reinstall trunk trim

• Reinstall any screws with a Torx T20 screwdriver or Torx T25 screwdriver.
• Snap the trim/access cover back in using your hands or a plastic trim removal tool set.

Step 9: Reconnect the battery (if disconnected)

• Reconnect the negative battery terminal using a 10mm socket and 1/4" drive ratchet.
• Make sure the clamp is fully seated and secure.

---

✅ After Repair

• Test all rear functions: tail lights, brake lights, turn signals, reverse lights, and hazards.
• Check the instrument cluster for a bulb-out warning; it should clear after the correct bulb is installed.
• Verify the lamp sits flush to the body and that the seal is even to prevent water intrusion.
• Tip: Recheck after first car wash for moisture.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$280 (parts + labor)

DIY Cost: $20-$80 (parts only)

You Save: $100-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
