🔧 X1 - Taillight Bulb Replacement

On your X1, the outer taillights (in the body) have a rear access panel inside the cargo area. You’ll remove the access cover, pull out the bulb holder, and swap the bulbs on both left and right sides.

Assumption: You’re replacing serviceable rear bulbs (turn signal / reverse / rear fog if equipped). The red tail/brake light may be LED and not bulb-serviceable on some X1 taillight versions.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition fully OFF and remove the key/fob from the vehicle before touching bulbs.
• ⚠️ Let bulbs cool first; they can get hot.
• ⚠️ Don’t touch glass bulb surfaces with bare fingers; skin oils can shorten bulb life.
• ⚠️ If you see melted plastic, corrosion, or burnt pins, stop and don’t force it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Plastic trim removal tool
• Small flathead screwdriver
• Flashlight
• 8mm socket
• 1/4" ratchet
• Torque wrench (2-20 Nm range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulb (amber, PY21W) - Replace in pairs - Qty: 2
• Reverse light bulb (W16W / 921) - Replace in pairs - Qty: 2
• Rear fog bulb (P21W) - If equipped - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the tailgate and clear the cargo area for room to work.
• Turn all exterior lights OFF and keep the key/fob away from the vehicle.
• Tip: Take a quick photo of the bulb holder layout.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the taillight access panel (left side)

• Use a flashlight to find the taillight service cover behind the left cargo-area trim.
• Use a plastic trim removal tool (a non-scratch pry tool) to pop the access cover open.

Step 2: Remove the bulb holder

• Locate the bulb holder (the plastic carrier plugged into the taillight).
• Grip it firmly and rotate it counterclockwise to unlock (usually about 1/8 turn), then pull it straight out.
• If it’s stuck, gently help it with a small flathead screwdriver at the tab—don’t pry hard.

Step 3: Replace the bulb(s)

• Identify the failed bulb position on the holder (turn signal / reverse / rear fog if equipped).
• Remove the old bulb by pulling it straight out of the socket.
• Install the new bulb by pushing it straight in until fully seated.
• Optional: Apply a tiny amount of dielectric grease to the connector pins only (not the bulb glass).
• Tip: Wear nitrile gloves to avoid fingerprints.

Step 4: Reinstall the bulb holder and test

• Insert the holder back into the taillight, making sure it sits flat and aligned.
• Rotate clockwise to lock.
• Turn ignition to ON and test the function you replaced (reverse lights require the car in reverse with brakes held; use a helper).
• If it doesn’t work, remove the holder and reseat the bulb and connector.

Step 5: Repeat on the right side

• Use the plastic trim removal tool to open the right-side access panel.
• Repeat bulb-holder removal, bulb replacement, and testing on the right taillight.
• Tip: Replace left and right bulbs as a pair.

Step 6: If your taillight has no bulb holder (LED version)

• If you only see a sealed connector and no removable bulb carrier, that circuit is likely LED and not bulb-serviceable.

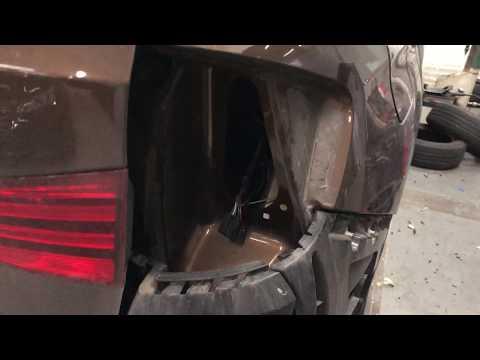

• If you must remove the outer lamp assembly to inspect: remove the access cover, then use an 8mm socket with a 1/4" ratchet to remove the lamp retaining nuts.
• Pull the lamp straight rearward carefully, disconnect the connector, and inspect for water/corrosion.
• Reinstall and tighten lamp nuts evenly: Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Confirm left/right turn signals, reverse lights, and brake lights all work.
• Make sure both access covers are fully snapped back into place to prevent rattles.
• If you get a bulb warning on the dash after installing LEDs, you may need correct “CAN-bus” style bulbs (proper load).

---

💰 DIY vs Shop Cost

Shop Cost: $90-$220 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $80-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
