🔧 Tahoe - Taillight Bulb Replacement

On your Tahoe, the rear bulbs are serviced by removing each tail lamp assembly, then swapping the bulb(s) from the socket. This is a simple job, but the lamp housing clips can be tight, so pull straight back to avoid cracking the lens.

Difficulty Level: Beginner | Estimated Time: 20-45 minutes

---

⚠️ Safety & Precautions

• 🛑 Turn the lights off and remove the key before starting.
• 🧤 Wear gloves; bulbs can be hot and skin oils can shorten bulb life.
• 🔌 No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4" drive ratchet
• Short extension (1/4" drive, 3")
• Plastic trim removal tool
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear stop/turn/tail bulb (3157 type) - Qty: 2
• Rear reverse bulb (921 type) - Qty: 2

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the liftgate so you can access the tail lamp mounting screws.
• Tip: Replace bulbs in pairs for even brightness.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

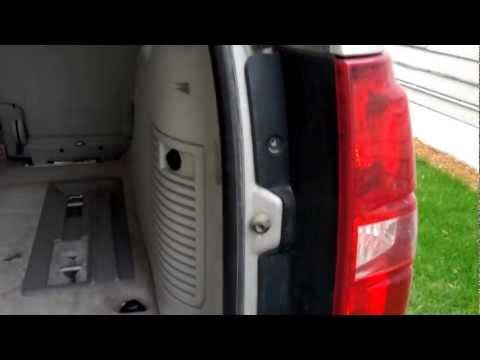

Step 1: Remove the tail lamp screws

• Open the liftgate.
• On one tail lamp, use an 8mm socket with a 1/4" drive ratchet and short extension (1/4" drive, 3") to remove the two mounting screws on the inboard edge (near the liftgate opening).
• Set the screws aside where they won’t fall.

Step 2: Pull the tail lamp assembly out

• Grip the lamp housing with both hands and pull it straight rearward.
• If it feels stuck, use a plastic trim removal tool to gently help it start moving (do not pry on the painted body).
• Tip: Pull straight back to protect the clips.

Step 3: Remove the bulb socket(s)

• Behind the lamp, locate the socket for the bulb you’re replacing.
• Twist the socket counterclockwise by hand and pull it out of the lamp.
• (A “socket” here is the plastic holder that locks into the lamp and carries the wiring.)

Step 4: Replace the bulb

• Wear nitrile gloves.
• Pull the old bulb straight out of the socket.
• Push the new bulb straight into the socket until fully seated.
• Tip: Don’t touch the glass with bare fingers.

Step 5: Reinstall socket(s) and test

• Insert the socket back into the lamp and twist clockwise by hand until it locks.
• Before reinstalling the lamp, test the bulb:
• Turn on parking lights to check the tail light function.
• Press the brake pedal (have a helper) to check brake lights.
• Use the turn signal to verify left/right flashing.
• Shift into reverse (foot on brake) to verify reverse lights.

Step 6: Reinstall the tail lamp assembly

• Align the lamp’s locating pins/clips with the body.
• Push the lamp straight forward until it seats flush.
• Reinstall the two screws using an 8mm socket and 1/4" drive ratchet.
• Torque to 2 Nm (18 in-lbs)

Step 7: Repeat on the other side

• Repeat Steps 1–6 for the other tail lamp so both sides match.

---

✅ After Repair

• Confirm all rear lighting works: tail, brake, turn signals, and reverse.
• Make sure both lamp housings sit flush and don’t wiggle.
• If a bulb still doesn’t work, inspect the socket for corrosion and check the fuse.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$200 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $70-$160 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.7 hours.

---
