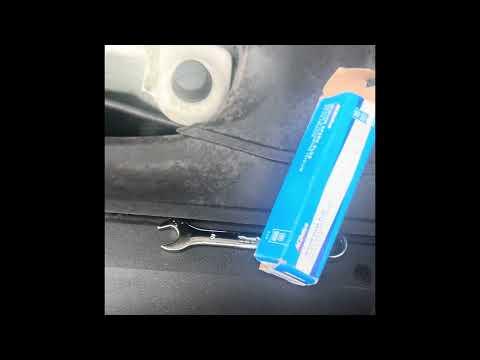

🔧 Trailblazer - Spark Plug Replacement

On your Trailblazer, the spark plugs sit under the ignition coils on top of the engine. Replacing them restores smooth running, fuel economy, and helps prevent misfires under boost.

Difficulty Level: Intermediate | Estimated Time: 1.0-1.5 hours

---

⚠️ Safety & Precautions

• Work on a cool engine to avoid burned hands and damaged threads.
• Disconnect the negative battery cable before unplugging ignition coils.
• Do not over-tighten spark plugs; aluminum cylinder head threads can strip.
• Keep dirt out of the spark plug wells; debris can fall into the cylinder.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive torque wrench (5-60 Nm range)
• 3/8" extension set (3" and 6")
• 5/8" spark plug socket
• Pick tool
• Trim clip removal tool
• Compressed air blow gun
• Clean shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (OEM-equivalent, iridium) - Qty: 3
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine fully cool.
• Open the hood and disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Pull upward evenly by hand, or use a trim clip removal tool if it’s clipped tightly.
• Set the cover aside.

Step 2: Remove the air inlet duct (as needed for access)

• Loosen any duct clamps and release clips by hand and with a pick tool.
• Move the duct out of the way to clearly access the ignition coils.

Step 3: Unplug and remove ignition coils

• Press the electrical connector lock tab (use a pick tool gently if needed), then pull the connector straight off each coil.
• Remove each coil retaining bolt using a 10mm socket.
• Pull the coil straight up to remove it from the spark plug well.
• During reassembly, Torque coil bolts to 10 Nm (89 in-lbs).

Step 4: Clean around the spark plug wells

• Blow out each spark plug well using a compressed air blow gun and wear safety glasses.
• Wipe any remaining dust with clean shop towels.

Step 5: Remove the old spark plugs

• Install a 5/8" spark plug socket with a 3/8" extension and 3/8" ratchet.
• A spark plug socket is a deep socket that grips the plug so it won’t fall out.
• Turn counterclockwise to remove each plug, then lift it out with the socket.

Step 6: Install the new spark plugs

• Start each new spark plug by hand using the 5/8" spark plug socket and extension only (no ratchet at first).
• If it doesn’t thread in smoothly, stop and restart to avoid cross-threading.
• Tighten each plug with a 3/8" drive torque wrench: Torque to 25 Nm (18 ft-lbs).
• Don’t add anti-seize unless the plug maker requires it.

Step 7: Reinstall ignition coils

• Apply a very small amount of dielectric grease inside each coil boot (the rubber spark plug end).
• Push each coil straight down until it seats fully.
• Install coil bolts using a 10mm socket, then Torque coil bolts to 10 Nm (89 in-lbs).
• Reconnect each coil connector until it clicks into place.

Step 8: Reassemble and reconnect the battery

• Reinstall the air inlet duct and clips by hand (use a pick tool if needed).
• Reinstall the engine cover by pressing it into place by hand.
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes; it should run smooth with no shaking.
• Listen for ticking or hissing near the top of the engine (could indicate a loose coil or disconnected duct).
• If the check engine light is on, scan for codes and confirm there are no misfire codes returning.
• Take a 10-minute test drive with light throttle, then a few moderate accelerations.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $45-$90 (parts only)

You Save: $205-$360 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
