🔧 Camry - Spark Plug Replacement

You’ll be replacing the four spark plugs on your Camry’s 2.5L engine. This keeps starting strong, improves fuel economy, and prevents misfires as the plugs wear out.

Difficulty Level: Beginner/Intermediate | Estimated Time: 1–2 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a completely cool engine. Hot engine parts can burn you.
• 🔌 Disconnect the negative battery terminal if you are nervous about working around electrical connectors.
• 🧯 Keep metal tools away from the battery positive terminal to avoid short circuits.
• 🧤 Wear safety glasses and mechanic gloves to protect your eyes and hands.
• 🌧️ Work in a dry area; avoid water around open ignition components.
• ⚡ Do not pull on ignition coil wires; always use the plastic connector body.

---

🔧 Required Tools

You’ll need the following tools for this repair:

• 🧰 3/8" drive ratchet
• 🧰 3/8" drive torque wrench (5–60 ft-lb range)
• 🧰 10mm socket
• 🧰 14mm thin-wall spark plug socket (3/8" drive)
• 🧰 3/8" drive extension (6")
• 🧰 Flathead screwdriver (medium)
• 🧰 Needle-nose pliers
• 🧰 Spark plug gap gauge (wire or coin style)
• 🧰 Shop rag or clean microfiber cloth
• 🧰 Dielectric grease (spark plug boot grease)
• 🧰 Small magnetic pickup tool
• 🧰 Fender cover or old towel
• 🧰 Safety glasses
• 🧰 Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Iridium spark plugs (Denso FK20HBR11 equivalent, pre-gapped 0.8 mm) - Qty: 4
• 🔩 Dielectric grease packet - Qty: 1
• 🔩 Throttle body/intake hose clamp (if damaged during removal) - Qty: 1–2
• 🔩 Battery terminal protector spray - Qty: 1 (optional)

---

📋 Before You Begin

• 🅿️ Park the Camry on level ground, shift to Park, and set the parking brake.
• 🔄 Let the engine cool for at least 30–45 minutes if it was running.
• 🔋 If you choose to disconnect the battery: use a 10mm socket to loosen the negative (-) terminal and move the cable aside so it cannot spring back.
• 🧼 Clear leaves/dust from around the engine cover so debris does not fall into the spark plug wells.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

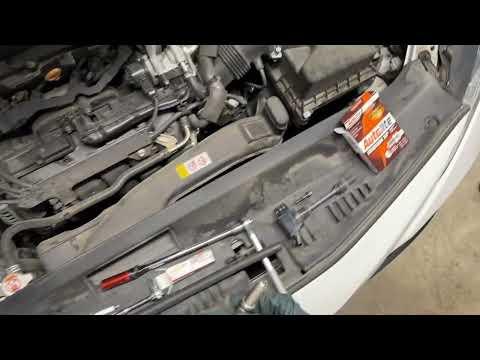

Step 1: Remove the plastic engine cover

• Open the hood and secure it with the prop rod.
• Grab the engine cover at the front corners and gently pull straight upward to pop it off its rubber mounts.
• Lift the cover off and set it aside in a safe spot.
• Pull straight up, not at an angle.

Step 2: Identify the ignition coils and spark plugs

• You’ll see four black rectangular pieces on top of the engine, each with an electrical connector. These are the ignition coils (they sit directly over the spark plugs).
• Each coil is held down by a small bolt at the top.
• Work on one cylinder at a time.

Step 3: Disconnect the first ignition coil connector

• Pick one coil to start with (for example, the one on the far left when facing the engine).
• Press down on the small plastic locking tab of the connector with your thumb or a flathead screwdriver.
• While pressing the tab, gently pull the connector straight off the coil. Do not pull on the wires.
• If it sticks, wiggle gently side to side.

Step 4: Remove the ignition coil

• Use a 10mm socket and 3/8" drive ratchet to remove the single bolt holding the coil in place.
• Set the 10mm bolt somewhere safe so it doesn’t get lost.
• Grasp the coil body and pull it straight up. You may need to twist it slightly while pulling to break the seal of the rubber boot.
• Place the coil somewhere clean. Avoid getting dirt on the rubber boot.

Step 5: Remove the old spark plug

• Attach the 14mm spark plug socket to the 3/8" extension, then to your ratchet.
• Carefully lower the socket into the spark plug well until it seats on the plug.
• Turn the ratchet counterclockwise to loosen the spark plug. It may be snug at first; that is normal.
• Once it is loose, spin the ratchet by hand until the plug is free, then carefully lift the socket and plug out together.
• If the plug sticks in the well, use a magnetic pickup tool to retrieve it.
• Keep dirt from falling into the open hole.

Step 6: Check and prepare the new spark plug

• Take one new iridium spark plug out of its box.
• Use a spark plug gap gauge to verify the gap is about 0.8 mm (0.031"). Most plugs come pre-gapped, but it’s good to confirm.
• If the gap is slightly off, adjust very gently by bending only the ground strap, not the center electrode.
• Do not put anti-seize on the threads unless the plug manufacturer specifically says to. Toyota plugs are designed to be installed dry.
• Handle plugs by the metal hex, not the tip.

Step 7: Install the new spark plug

• Place the new plug into the 14mm spark plug socket. The socket should hold the plug by the insulator inside.
• Carefully lower the plug into the spark plug hole using the extension, keeping it straight.
• Start threading the plug by turning the extension by hand (without the ratchet) clockwise. It should turn smoothly with almost no resistance for several turns.
• If it feels tight immediately or cross-threaded, stop, remove it, and start again.
• Once hand-tight, attach the ratchet and snug the plug lightly.
• Now use your torque wrench with the 14mm spark plug socket and extension to tighten to 18 Nm (13 ft-lb).
• Proper torque prevents damage and misfires.

Step 8: Reinstall the ignition coil

• Put a very small smear of dielectric grease inside the rubber boot of the coil. This helps sealing and future removal.
• Lower the coil straight down into the spark plug well until it seats on the plug.
• Install the 10mm coil bolt by hand first to avoid cross-threading.
• Use the 10mm socket and ratchet to snug the bolt, then switch to your torque wrench and tighten the coil bolt to 10 Nm (89 in-lb).

Step 9: Reconnect the ignition coil connector

• Push the electrical connector back onto the coil until you hear or feel a click.
• Give the connector a gentle tug to confirm it is locked in place.

Step 10: Repeat for the remaining three spark plugs

• Repeat Steps 3–9 for each of the other three coils and spark plugs, one at a time.
• Doing one at a time avoids mixing coils or connectors.

Step 11: Reinstall the engine cover

• Align the engine cover over the mounting posts on top of the engine.
• Press down firmly at each corner until the cover pops back into place.

Step 12: Reconnect the battery (if disconnected)

• Place the negative (-) cable back on the battery terminal.
• Use a 10mm socket to tighten the clamp until snug. Do not over-tighten.
• Terminal should not move if you twist it.

---

✅ After Repair

• 🔑 Start the engine and let it idle. It should run smoothly with no shaking or misfire.
• 🚗 Take a short test drive, listening for any unusual noises and checking for warning lights on the dash.
• 💡 If the Check Engine Light comes on or the engine runs rough, recheck each coil connector and make sure all coils are fully seated and plugged in.
• 📊 You do not need to reset anything in the infotainment or use a scan tool for this basic spark plug replacement.

---

💰 DIY vs Shop Cost

Shop Cost: $220–$350 (parts + labor)

DIY Cost: $60–$120 (parts only)

You Save: $160–$230 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 0.8–1.0 hours.

---
